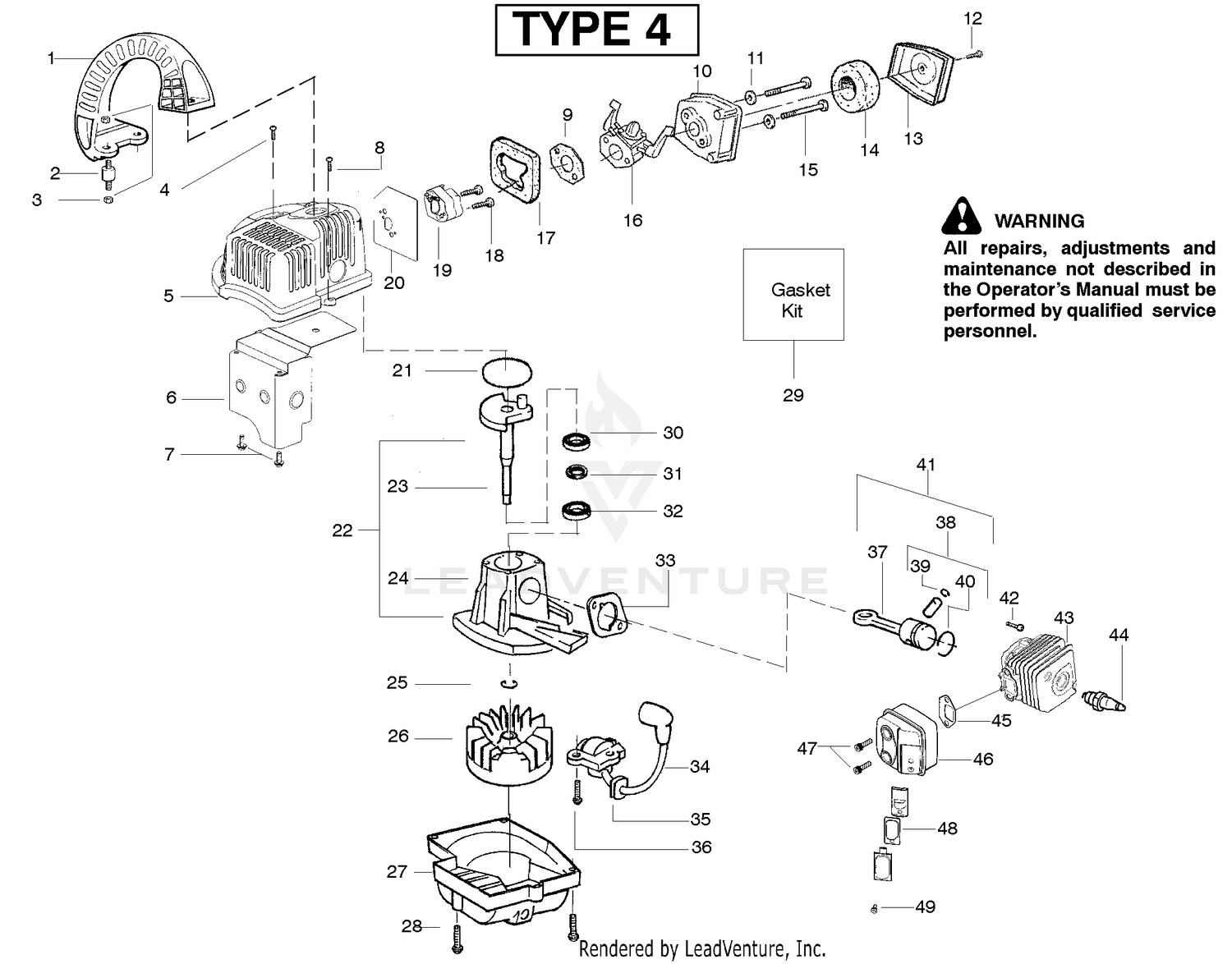

| Ref | Part Number | Description |
|---|
| 1 |
5-2670 |
DISCONTINUED Price: Call Us |
| 1 |
530054429 |
Handle Price: $7.99 |
| 2 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 2 |
530054432 |
Isolator-Handle Price: $3.99 |
| 3 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 3 |
530016316 |
Nut Price: $1.99 |
| 4 |
5-2922 |
Spring, Extension Price: Call Us |
| 4 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 5 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
530055336 |
Shroud Price: $17.99 |
| 6 |
5-2942 |
SHACKLE Price: $16.99 |
| 6 |
530055378 |
Shield-Heat Price: $4.99 |
| 7 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 7 |
530015805 |
Screw Price: $1.99 |
| 8 |
5-2656 |
CABLE KEEPER Price: $27.15 |
| 8 |
530016349 |
Screw Price: $1.99 |
| 9 |
5-2653 |
PULLEY ASM Price: $38.12 |
| 9 |
530071472 |
Gasket-Carb. (Kit) Price: $6.99 |
| 10 |
530052333 |
Air Box Price: $2.99 |
| 10 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 11 |
3-8772 |
DISCONTINUED Price: Call Us |
| 11 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 12 |
3218-5 |
NUT-JAM Price: $0.27 |
| 12 |
530015892 |
Screw Price: $1.99 |
| 13 |
3-8756 |
DISCONTINUED Price: Call Us |
| 13 |
530052332 |
Cover-Air Box Price: $1.99 |
| 14 |
3-8774 |
DISCONTINUED Price: Call Us |
| 14 |
530047932 |
Foam-Air Filter Price: $1.99 |
| 15 |
5-2663 |
DISCONTINUED Price: Call Us |
| 15 |
530016394 |
Screw Price: $3.33 |
| 16 |
5-3315 |
Cable Guard Price: Call Us |
| 16 |
530071629 |
Kit-Carburetor Ass'y. (C1U-W12A) Price: $54.99 |
| 17 |
323-8 |
SCREW-HH Price: $1.20 |
| 17 |
530057725 |
Foam-Air Dam Price: $2.99 |
| 18 |
3-8761 |
DISCONTINUED Price: Call Us |
| 18 |
530016309 |
Screw Price: $1.99 |
| 19 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 19 |
530057634 |
Adaptor-Carb. Price: $8.99 |
| 20 |
530071472 |
Gasket-Cyl/Carb. Adaptor (Kit) Price: $6.99 |
| 20 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 21 |
3-2461 |
DISCONTINUED Price: $5.02 |
| 21 |
530071472 |
Gasket-C'case/Shroud (Kit) Price: $6.99 |
| 22 |
5-2664 |
DISCONTINUED Price: Call Us |
| 23 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 23 |
530071625 |
C'case & C'shaft Ass'y. This part replaces 530052344. Price: $39.99 |
| 24 |
5-1183 |
DISCONTINUED Price: Call Us |
| 25 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 25 |
530015941 |
Retainer Ring (C'shaft) Price: $1.99 |
| 26 |
5-2668 |
DISCONTINUED Price: Call Us |
| 26 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 27 |
323-11 |
SCREW-HH Price: $1.08 |
| 27 |
530058942 |
Fan Housing Price: $9.99 |
| 28 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 28 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 29 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 30 |
5-2667 |
DISCONTINUED Price: Call Us |
| 30 |
530032125 |
Inner Bearing Price: $11.99 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 31 |
530019264 |
Seal-Crankcase Price: $2.99 |
| 32 |
5-1895 |
REEL DRIVE PAD Price: $33.67 |
| 32 |
530055728 |
Bearing-Outer Price: $6.99 |
| 33 |
5-1875 |
DISCONTINUED Price: Call Us |
| 33 |
530071472 |
Gasket-Cylinder (Kit) Price: $6.99 |
| 34 |
3-8753 |
DISCONTINUED Price: Call Us |
| 34 |
530039163 |
Ignition Module Price: $34.99 |
| 35 |
3-8664 |
WASHER-THRUST Price: $5.69 |
| 35 |
530019182 |
Grommet-Ign. Module Price: $1.99 |
| 36 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 36 |
530016357 |
Screw Price: $1.99 |
| 37 |
3296-8 |
NUT-HEX Price: $1.29 |
| 37 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 38 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 39 |
3-6694 |
DISCONTINUED Price: Call Us |
| 39 |
530015162 |
Wrist Pin Retainer Price: $1.99 |
| 40 |
5-1876 |
DISCONTINUED Price: Call Us |
| 40 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 41 |
256-166 |
DISCONTINUED Price: Call Us |
| 42 |
255-6 |
DISCONTINUED Price: Call Us |
| 42 |
530015953 |
Screw Price: $1.99 |
| 43 |
5-1877 |
DISCONTINUED Price: Call Us |
| 43 |
530012500 |
Cylinder Price: $12.99 |
| 44 |
5-2941 |
DISCONTINUED Price: Call Us |
| 44 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 45 |
5-2655 |
CABLE KEEPER Price: $28.04 |
| 45 |
530071472 |
Gasket-Muffler (kit) Price: $6.99 |
| 46 |
3-8744 |
DISCONTINUED Price: Call Us |
| 47 |
321-20 |
SCREW-HH Price: $6.79 |
| 47 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 48 |
5-1874 |
DISCONTINUED Price: Call Us |
| 48 |
530071544 |
Kit-Spark Aresstor Price: $6.99 |
| 49 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 50 |
5-2718 |
DISCONTINUED Price: Call Us |
| 51 |
3-8783 |
DISCONTINUED Price: Call Us |
| 52 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 53 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 54 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
