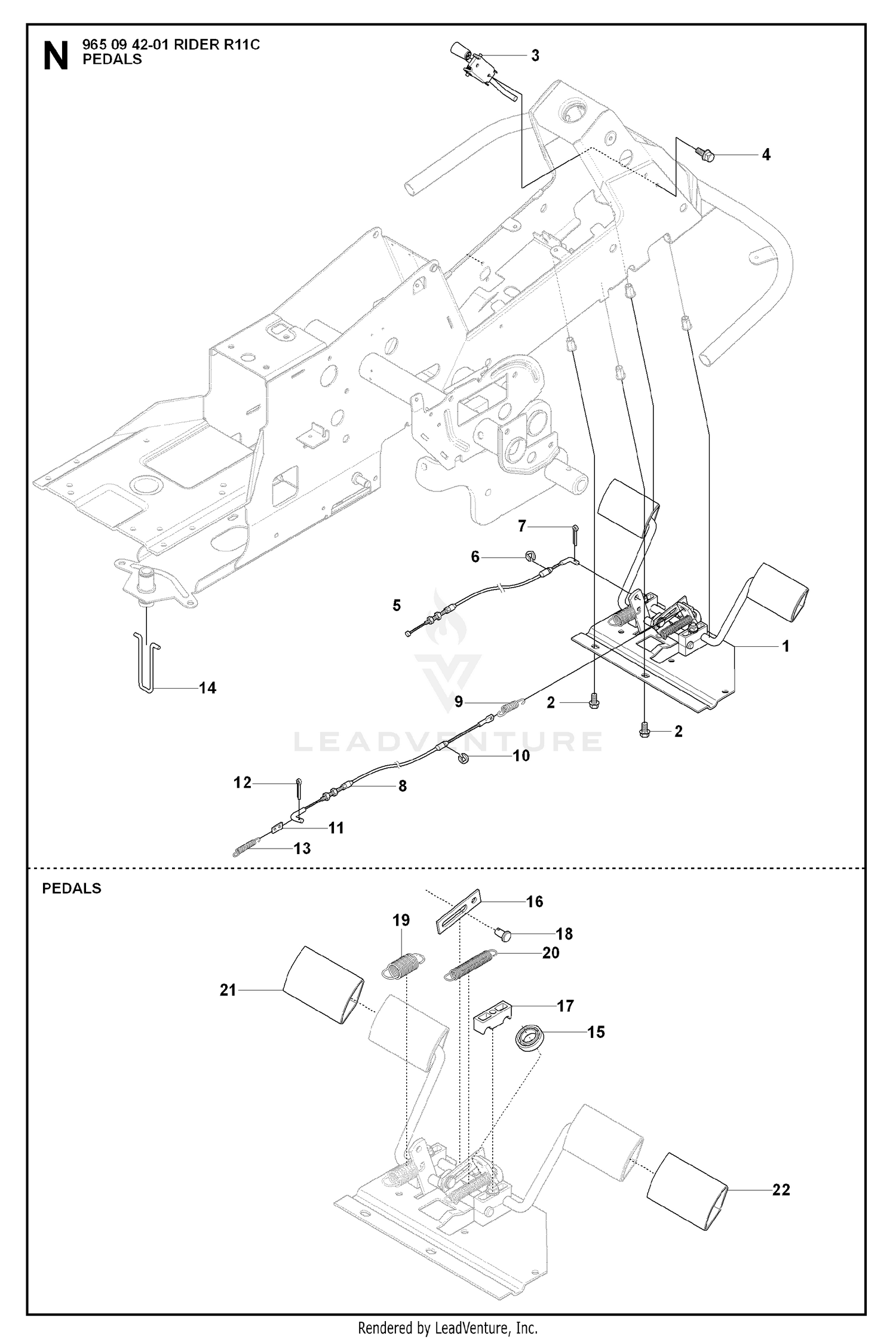

PEDALS
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544132301 | PEDAL PLATE ASSY MANUAL Price: $109.99 |
| 2 | 506570104 | BOLT Price: $4.99 |
| 3 | 544403101 | BRAKE LEVER ASSY Price: $19.99 |
| 4 | 725236461 | SCREW Price: $2.99 |
| 5 | 506952501 | CABLE Price: $49.99 |
| 6 | 735310920 | E-RING 5 Price: $3.99 |
| 7 | 721615201 | Cotter Pin Price: $1.99 |
| 8 | 506952601 | CABLE Price: $44.99 |
| 9 | 506919101 | SPRING Price: $5.99 |
| 10 | 735310920 | E-RING 5 Price: $3.99 |
| 11 | 506599301 | CONNECTOR Price: $5.99 |
| 12 | 721615201 | Cotter Pin Price: $1.99 |
| 13 | 506535603 | SPRING Price: $4.99 |
| 14 | 506576401 | RETAINER Price: $4.99 |
| 15 | 738210204 | BALL BEARING 6002-2RS1 Price: $7.99 |
| 16 | 544127901 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 506506501 | PEDAL SHAFT CLAMP This part replaces 535480801. Price: $6.99 |
| 19 | 544133401 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 544133601 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 586966402 | PEDAL RUBBER L = 102MM This part replaces 535478802. Price: $14.99 |
| 22 | 586966402 | PEDAL RUBBER L = 102MM This part replaces 535478802. Price: $14.99 |
