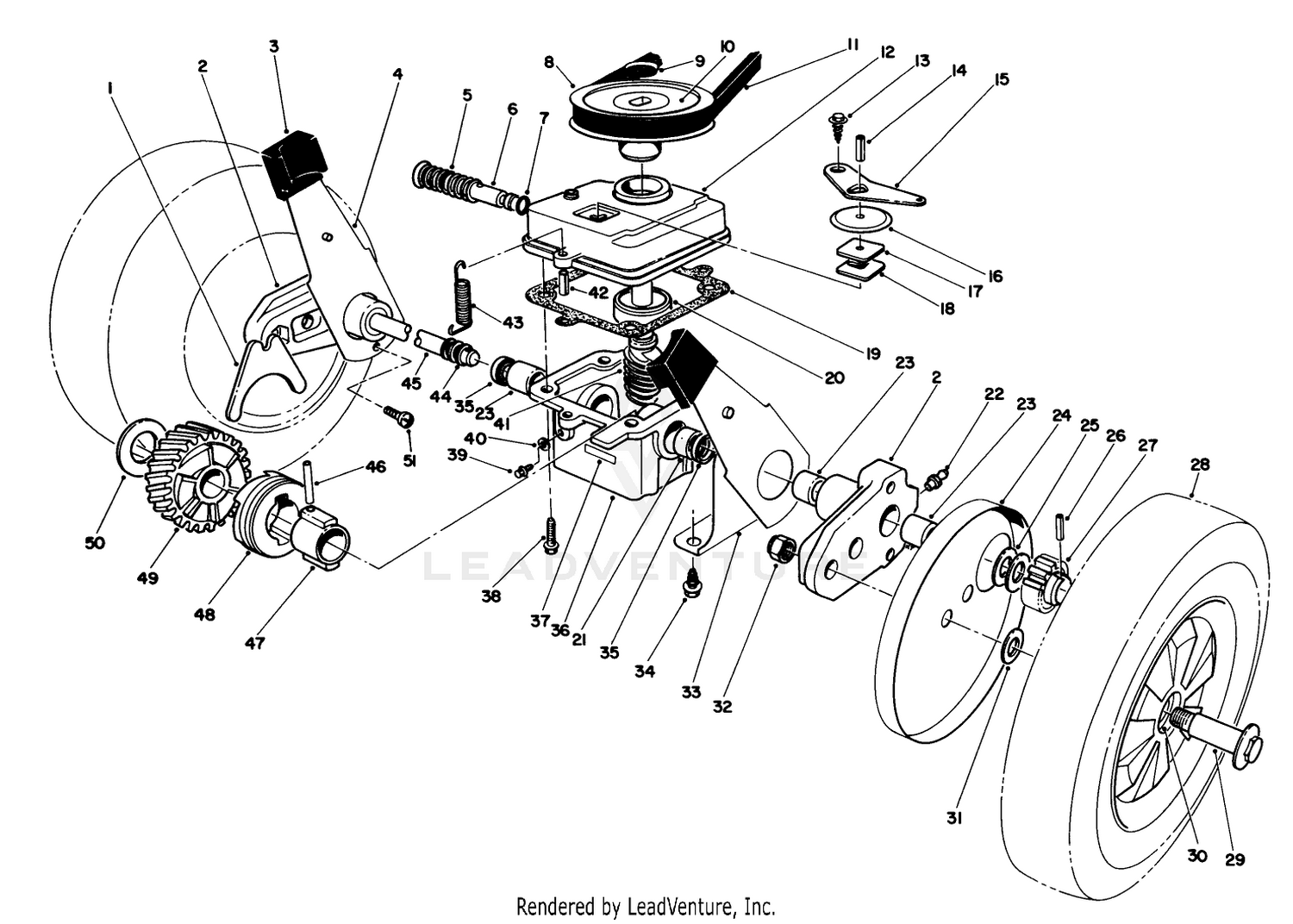

| Ref | Part Number | Description |
|---|
| 1 |
5-3247 |
SHIFTER FORK Price: $11.89 |
| 2 |
66-6001 |
PIVOT ARM ASM This part replaces 66-6000. Price: $31.64 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
67-9370 |
SPRING ARM ASSY-FRONT Price: $17.47 |
| 5 |
3-0731 |
SPRING Price: $6.52 |
| 6 |
46-8240 |
SHIFTER ROD Price: $26.92 |
| 7 |
237-137 |
O-RING Price: $12.99 |
| 8 |
18-9760 |
PULLEY Price: $44.12 |
| 9 |
3290-346 |
PUSH-ON 93-3236 Price: $5.17 |
| 10 |
33-2450 |
DISCONTINUED Price: Call Us |
| 11 |
5-4505 |
BELT-V Price: $14.21 |
| 12 |
39-1101 |
DISCONTINUED Price: Call Us |
| 13 |
32144-112 |
SCREW-HWH This part replaces 32140-64. Price: $0.99 |
| 14 |
32121-114 |
SPIROL PIN H D Price: $1.22 |
| 15 |
5-3252 |
SHIFTER ARM Price: $22.50 |
| 16 |
52-7380 |
DUST COVER Price: $4.60 |
| 17 |
52-7370 |
DUST FILTER Price: $2.14 |
| 18 |
3-0681 |
LATCH PLATE Price: $37.50 |
| 19 |
36-1000 |
GASKET Price: $5.69 |
| 20 |
47-7250 |
BEARING - BALL Price: $41.39 |
| 21 |
47-2890 |
BUSHING Price: $3.19 |
| 22 |
302-56 |
FITTING-GREASE Price: $3.69 |
| 23 |
47-2900 |
BUSHING Price: $3.98 |
| 24 |
36-5630-03 |
WHEEL COVER This part replaces 36-5630. Price: $20.72 |
| 25 |
46-6510 |
DISCONTINUED Price: Call Us |
| 26 |
32121-88 |
COIL PIN This part replaces 32121-98. Price: $7.79 |
| 27 |
46-6520 |
PINION GEAR 15T Price: $16.99 |
| 28 |
11-1419 |
WHL/GEAR/TIRE PKG Price: $41.57 |
| 29 |
27-6230 |
BOLT-WHEEL Price: $5.35 |
| 30 |
27-6250 |
BUSHING Price: $2.17 |
| 31 |
40-1940 |
WASHER Price: $1.59 |
| 32 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 33 |
68-9000 |
END CAP Price: $6.93 |
| 34 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 35 |
47-6730 |
SEAL-OIL Price: $7.88 |
| 36 |
8-0479 |
GEAR CASE ASM Price: $147.73 |
| 37 |
40-4755 |
DECAL Price: $0.88 |
| 38 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 39 |
28-1550 |
NYLON SCREW Price: $4.36 |
| 40 |
46-9640 |
FILL PLUG GASKET Price: $3.50 |
| 41 |
8-5679 |
WORM SHAFT & GEAR SET Price: $95.88 |
| 43 |
174490 |
Spring-Tension Price: Call Us |
| 44 |
24-7920 |
COVER-SHAFT, DRIVE Price: $6.61 |
| 45 |
66-6020 |
DRIVE SHAFT Price: $52.55 |
| 46 |
32121-88 |
COIL PIN Price: $7.79 |
| 47 |
3-0721 |
SLEEVE Price: $29.03 |
| 48 |
19-5660 |
CLUTCH JAW Price: $26.27 |
| 50 |
3-0724 |
THRUST WASHER Price: $5.65 |
| 51 |
63-8590 |
SCREW Price: $0.99 |
