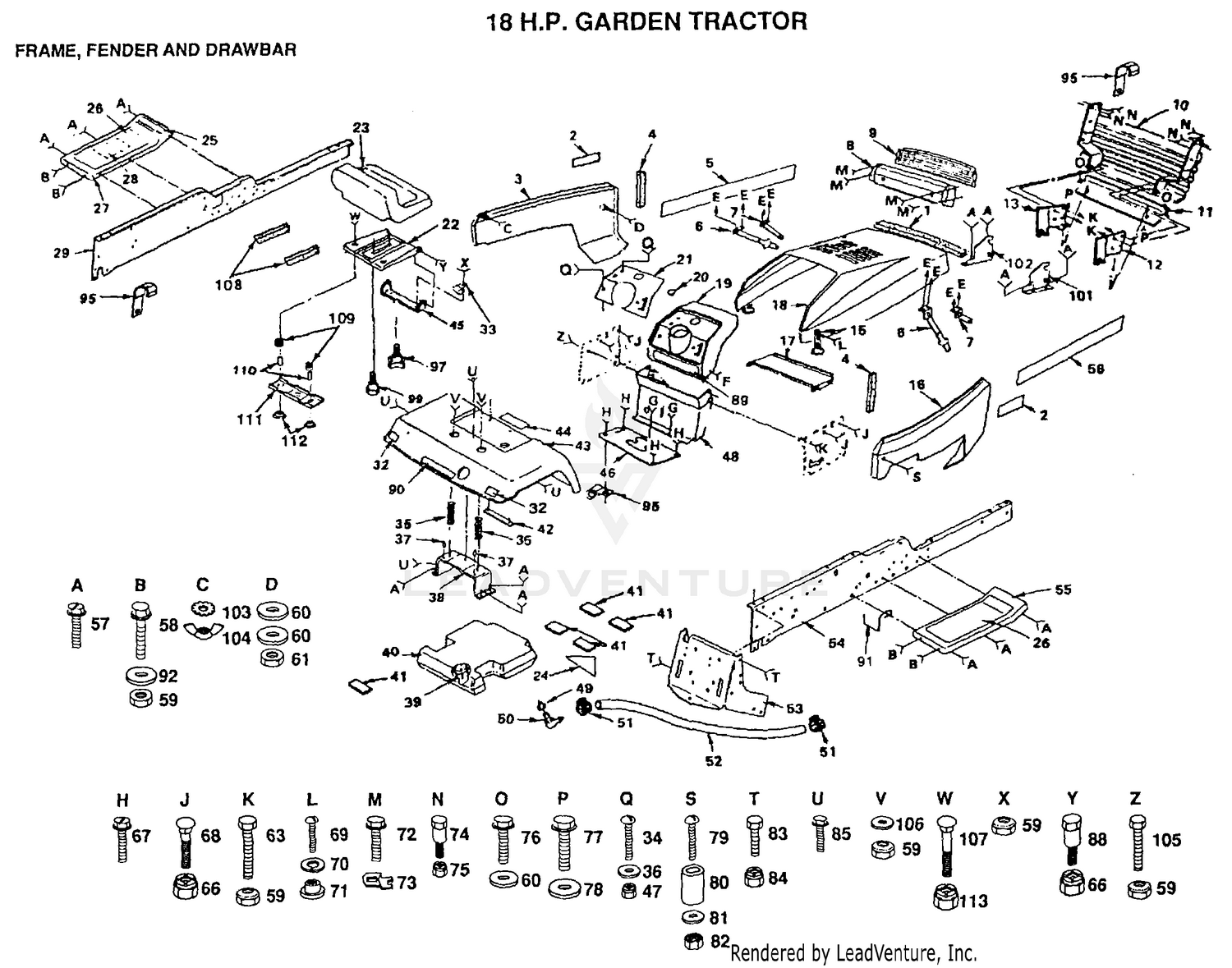

FRAME, FENDER AND DRAWBAR

FRAME, FENDER AND DRAWBAR

Parts (117)

RefPart NumberDescription
2 124053X NLA Price: Call Us
3 121888X388 SUB= 150302X505 Price: Call Us
4 106088X FOAM STRIP T Price: Call Us
5 123965X DECAL HOOD LH Price: Call Us
6 106784X SUB= 155013 Price: Call Us
7 104618X SUB= 155013 Price: Call Us
8 104613X SUB= 147717 Price: Call Us
9 106395X LENS LT Price: Call Us
10 122100X GRILL ASSY Price: Call Us
10 98-9459 CAMSHAFT-FUEL Price: $159.71
11 105419X388 NLA Price: Call Us
12 110854X SUPPORT RH YTH Price: Call Us
13 110855X SUPPORT LH YTH Price: Call Us
15 109808X HOOD LATCH T Price: Call Us
16 121887X388 SUB= 140679X505 Price: Call Us
17 7985J SUB= 140229 Price: Call Us
18 121886X388 SUB= 150301X505 Price: Call Us
19 121312X DASH Price: Call Us
20 107-9077 BEARING-BALL Price: $81.95
20 8022J PLUG-DASH T Price: Call Us
21 121448X011 DASH PLATE Price: Call Us
22 124294X SUB= 155925 Price: Call Us
23 110840X SUB= 140121 Price: Call Us
25 101892X DECAL T Price: Call Us
26 108256X PAD FOOTREST T Price: Call Us
27 105465X388 FOOTREST LH YT Price: Call Us
28 123243X DECAL - DRIVE BELT Price: Call Us
29 110893X SUB= 151630 Price: Call Us
30 107-9078 BEARING-BALL Price: $81.95
32 106202X REFLECTOR-TAIL YT Price: Call Us
33 2751R CLIP T Price: Call Us
34 74180512 SCREW Price: Call Us
35 124181X SPRING COMPRESSIO Price: Call Us
36 19111116 WASHER Price: Call Us
37 105531X NUT-PUSH YT Price: Call Us
38 105509X SUB= 137113 Price: Call Us
39 123549X SUB= 158990 Price: Call Us
40 106020X SUB= 151346 Price: Call Us
40 98-9590 NUT-CAP Price: $3.86
41 106082X PAD-SPACER LT Price: Call Us
42 105511X SUB= 140675 Price: Call Us
43 121642X388 FENDER Price: Call Us
44 120822X DECAL Price: Call Us
45 105513X SUB= 140551 Price: Call Us
46 106042X013 CVR SHAFT GATE Price: Call Us
47 73510500 NUT Price: Call Us
48 104608X DASH ASSEMBLY Price: Call Us
49 3645J BUSHING OUTLET T Price: Call Us
50 8710J FUEL TANK STEM GT Price: Call Us
50 98-9595 KEY-WOODRUFF Price: $2.04
51 123487X HOSE CLAMP Price: Call Us
52 7834R SUB= 8542R Price: Call Us
53 7982J SUB= 140506 Price: Call Us
54 110892X SUB= 150383 Price: Call Us
55 105464X388 FOOTREST-R.H. Price: Call Us
56 123966X NLA Price: Call Us
57 17490612 SCREW Price: Call Us
58 74760612 SUB= 74780612 Price: Call Us
59 73680600 SUB= 73690600 Price: Call Us
60 19091216 WASHER PM Price: Call Us
60 98-9669 GEAR-PUMP, INJECTION Price: $86.00
61 73220400 SUB= 50675 Price: Call Us
63 74760616 BOLT Price: Call Us
64 19131316 WASHER Price: Call Us
65 74180512 SCREW Price: Call Us
66 73680500 SUB= 73690500 Price: Call Us
67 17240408 SUB= 17720408 Price: Call Us
68 72140506 BOLT Price: Call Us
69 74191008 SCREW Price: Call Us
70 10071000 LOCKWASHER Price: Call Us
70 98-9511 STOPPER-FUEL, CAMSHAFT Price: $5.18
71 2029J WELDNUT Price: Call Us
72 17211010 SCREW LT Price: Call Us
74 123481X SUB= 7605J Price: Call Us
75 73680400 SUB= 73690400 Price: Call Us
76 17190412 SCREW Price: Call Us
77 17490512 SCREW Price: Call Us
78 19111212 WASHER Price: Call Us
79 74981020 SCREW Price: Call Us
80 7206J SPACER LT Price: Call Us
80 98-9350 BOLT Price: $0.98
81 19070818 WASHER Price: Call Us
82 73731000 NUT Price: Call Us
83 74760716 BOLT Price: Call Us
84 73680700 NUT GTV Price: Call Us
85 17490608 SCREW LT Price: Call Us
88 105529X SUB= 139888 Price: Call Us
89 108813X SUB= 138956 Price: Call Us
90 123964X NLA Price: Call Us
90 98-9644 GOVERNOR SHAFT ASM Price: $527.54
91 105500X BELT RETAINER GT Price: Call Us
92 19131312 WASHER Price: Call Us
95 4171R CLIP T Price: Call Us
99 121144X SUB= 127018X Price: Call Us
100 98-9562 HOLDER-GEAR, GOVERNOR Price: $61.49
101 110853X SUPPORT RH YTH Price: Call Us
102 110852X SUPPORT LH YTH Price: Call Us
103 11030400 LOCKWASHER GT Price: Call Us
104 73490400 SUB= 146525 Price: Call Us
105 74760620 Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us
106 19131614 WASHER Price: Call Us
107 72170410 BOLT Price: Call Us
108 121251X STRIP FORM Price: Call Us
109 121250X SPRING Price: Call Us
110 121249X SPACER SPLIT Price: Call Us
110 98-9673 GEAR-GOVERNOR Price: $137.25
111 121246X BRKT SWITCH Price: Call Us
112 121248X BUSHING Price: Call Us
113 123976X SUB= 73900400 Price: Call Us
120 98-9561 HOLDER-WEIGHT, GOVERNOR Price: $23.68
130 98-9559 GOVERNOR WEIGHT ASM Price: $105.15
140 98-9560 SHAFT-WEIGHT, GOVERNOR Price: $6.17
145 98-9692 ROLLER Price: $11.45
150 98-9563 SLEEVE-GOVERNOR Price: $29.68
160 98-9564 WASHER-THRUST Price: $5.01
170 107-9079 BEARING-BALL Price: $81.78
180 98-9657 CIRCLIP-SHAFT, GOVERNOR Price: $4.48
