Home / OPE / 12-Self-Propelled Walk-Behind Mowers / 2004 Models / 12AF753B766 9 HP 33" (Elec) Wide-Cut ES Mowers / Transaxle Assembly

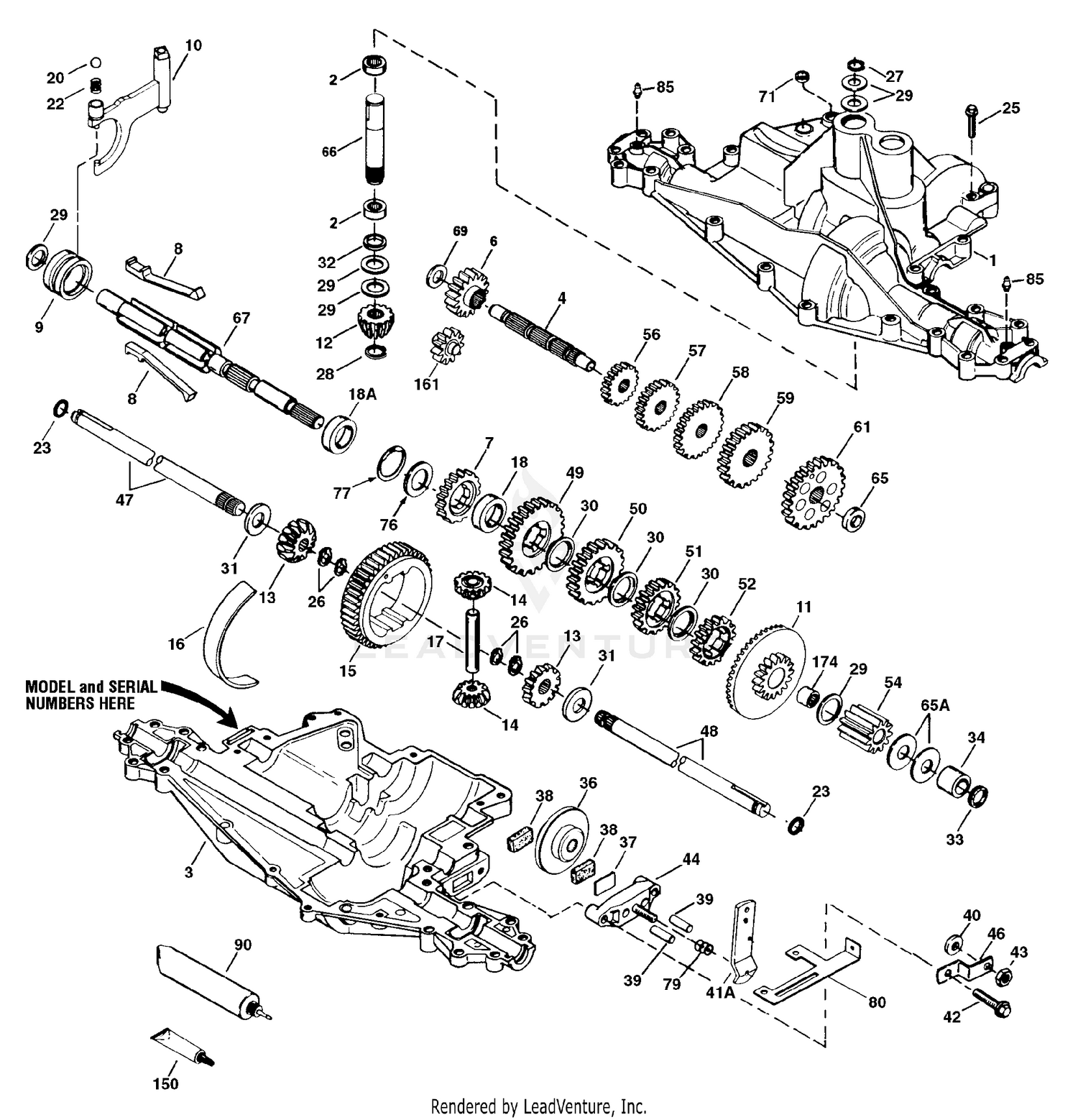

Transaxle Assembly

Transaxle Assembly

Parts (63)

RefPart NumberDescription
1 TC-772113 Transaxle Cover Price: Call Us
1 TC-772135 COVER-TRANSAXLE Not Available Price:
2 TC-780086 THRUST BEARING Not Available This part replaces TC-780086A. Price:
3 TC-770110 Transaxle Case Price: Call Us
4 TC-776300 COUNTERSHAFT Not Available Price:
6 TC-778281 SPUR GEAR Not Available Price:
7 TC-778122A SPUR GEAR (22 TEET Not Available Price:
8 TC-792160A KEY-SHIFT Not Available This part replaces TC-792160. Price:
9 TC-784373 COLLAR-SHIFT Not Available Price:
10 TC-784365 Shift Rod & Fork Price: Call Us
12 TC-778262 BEVEL GEAR PINION Not Available Price:
13 TC-778221 BEVEL GEAR Not Available Price:
14 TC-778068 BEVEL GEAR Not Available Price:
15 TC-778260 RING GEAR Not Available Price:
16 TC-786150 STRIP-BEAR Not Available Price:
17 TC-786139 PIN-DRIVE Not Available Price:
18 TC-786147 SPACER-NEU Not Available Price:
18A TC-786159 SPACER-NEU Not Available Price:
20 TC-792077A BALL-5/16 GRADE 20 Not Available This part replaces TC-792077. Price:
22 TC-792079 SPRING Not Available Price:
23 TC-788061 SEAL RING Not Available Price:
25 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
26 TC-792125 RING-RETAINER (SET Not Available Price:
27 TC-792035 Retaining Ring Not Available Price:
28 TC-788040 E-RINGXT RET .521 Not Available Price:
29 TC-780072 THRUST WASHER Not Available Price:
30 TC-780108 Washer Not Available Price:
31 TC-780001 WASHER Not Available Price:
32 TC-792001 RING-QUAD Not Available Price:
33 TC-788076 O-RING Not Available Price:
34 TC-780159 BUSHING Not Available Price:
36 TC-790071 BRAKE DISK Not Available Price:
37 TC-790007 PLATE-BRAKE PAD Not Available Price:
39 TC-786026 DOWEL PIN Not Available Price:
40 736-3078 Fl. Wash., 344 x 1.000 x .063 This part replaces TC-792076A. Price: $3.95
41 TC-790045 BRAKE LEVER Not Available Price:
42 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
43 712-0237 HEX NUT This part replaces TC-792075. Price: $4.37
44 TC-790025 HOLDER-BRAKE PAD Not Available Price:
46 TC-786086 BRACKET-BRAKE LEVE Not Available Price:
47 TC-774747 AXLE (16-1/4"LG) Not Available Price:
48 TC-774888 AXLE (11"LG) Not Available Price:
49 TC-778124A SPUR GEAR (30 TEET Not Available Price:
50 TC-778123A SPUR GEAR (25 TEET Not Available Price:
51 TC-778122A SPUR GEAR (22 TEET Not Available Price:
52 TC-778273 SPUR GEAR (19 TEET Not Available Price:
54 TC-778263 SPUR GEAR Not Available Price:
56 TC-778126A SPUR GEAR (20 TEET Not Available Price:
57 TC-778127A SPUR GEAR (25 TEET Not Available Price:
58 TC-778128A SPUR GEAR (28 TEET Not Available Price:
59 TC-778129A SPUR GEAR Not Available Price:
61 TC-778265 SPUR GEAR (34 TEET Not Available Price:
65 TC-780162 WASHER Not Available Price:
65A TC-780160 WASHER Not Available Price:
66 TC-776299 INPUT SHAFT Not Available Price:
67 TC-776352 SHAFT-SHIF Not Available Price:
69 TC-780161 WASHER Not Available Price:
71 TC-788069 SEAL-SQUARE CUT Not Available Price:
76 TC-780090 THRUST WASHER Not Available Price:
79 TC-792144 SPRING Not Available Price:
80 TC-790063A BRACKET-BRAKE Not Available Price:
85 737-04006 GREASE FITTING 1/4 Not Available This part replaces TC-792137. Price:
161 776302 Reverse Idler Price: Call Us
