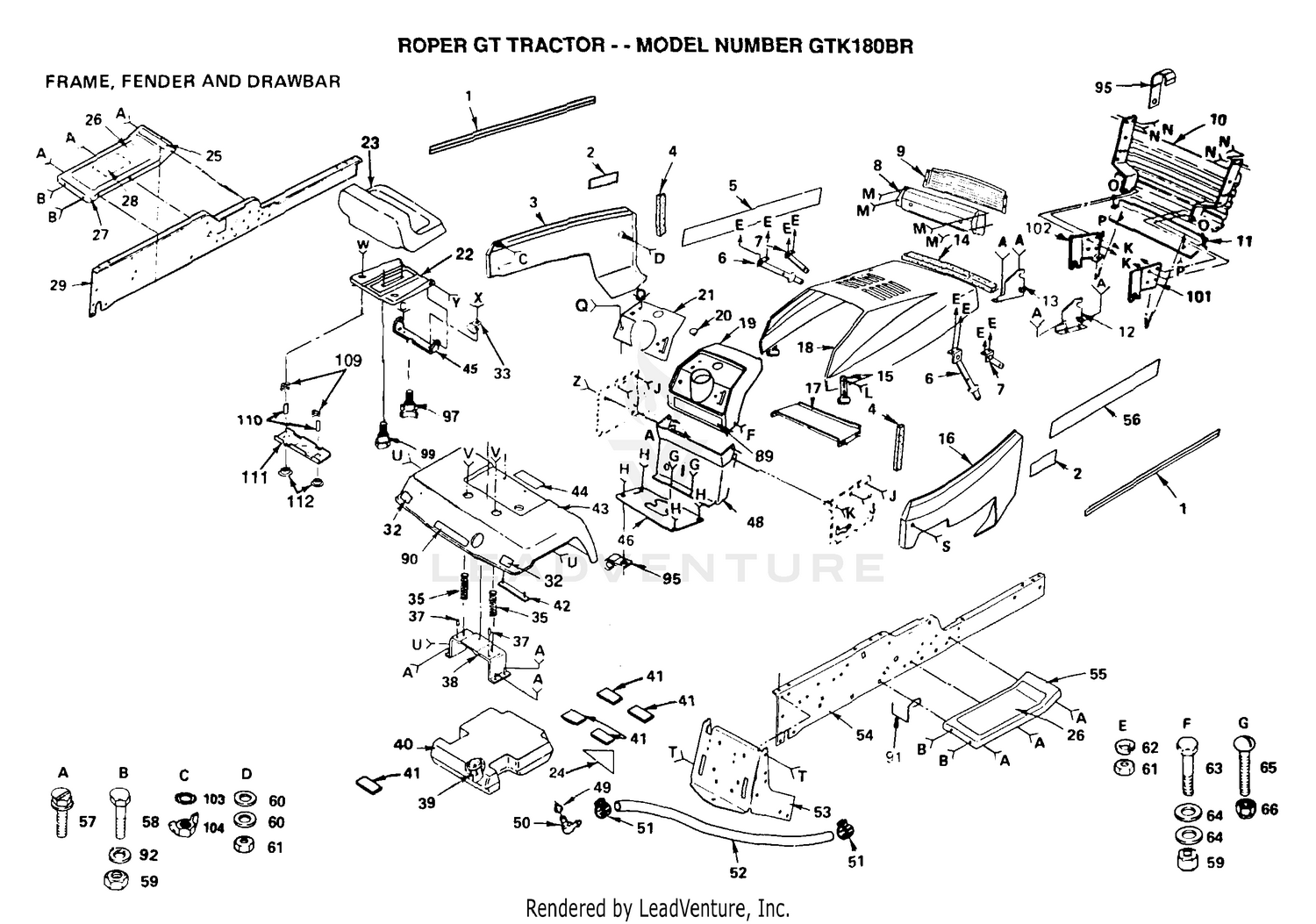

FRAME, FENDER, SEAT, DRAWBAR

FRAME, FENDER, SEAT, DRAWBAR

Parts (83)

RefPart NumberDescription
1 121589X NLA Price: Call Us
2 121972X NLA Price: Call Us
3 108372X388 SUB= 150302X505 Price: Call Us
4 106088X FOAM STRIP T Price: Call Us
5 121587X NLA Price: Call Us
6 106784X SUB= 155013 Price: Call Us
7 104618X SUB= 155013 Price: Call Us
8 104613X SUB= 147717 Price: Call Us
9 106395X LENS LT Price: Call Us
010 131-6557 ALTERNATOR ASM This part replaces 98-9474. Price: $443.05
10 122100X GRILL ASSY Price: Call Us
11 105419X388 NLA Price: Call Us
12 110853X SUPPORT RH YTH Price: Call Us
13 110852X SUPPORT LH YTH Price: Call Us
15 109808X HOOD LATCH T Price: Call Us
16 108371X388 SUB= 140679X505 Price: Call Us
17 7985J SUB= 140229 Price: Call Us
18 108370X388 SUB= 150301X505 Price: Call Us
19 121312X DASH Price: Call Us
020 112-7047 STAY-DYNAMO This part replaces 98-9573. Price: $14.95
20 8022J PLUG-DASH T Price: Call Us
21 121448X011 DASH PLATE Price: Call Us
22 121247X SUB= 155925 Price: Call Us
23 110840X SUB= 140121 Price: Call Us
24 109984X NLA Price: Call Us
25 101892X DECAL T Price: Call Us
26 109864X SUB= 108256X Price: Call Us
27 105465X388 FOOTREST LH YT Price: Call Us
28 106868X DECAL T Price: Call Us
29 110893X SUB= 151630 Price: Call Us
030 98-7697 BOLT Price: $1.08
32 106202X REFLECTOR-TAIL YT Price: Call Us
33 2751R CLIP T Price: Call Us
35 121067X SPRING T Price: Call Us
37 105531X NUT-PUSH YT Price: Call Us
38 105509X SUB= 137113 Price: Call Us
39 121221X SUB= 158990 Price: Call Us
040 98-9360 BOLT Price: $2.35
40 106020X SUB= 151346 Price: Call Us
41 106082X PAD-SPACER LT Price: Call Us
42 105511X SUB= 140675 Price: Call Us
43 121642X388 FENDER Price: Call Us
44 120822X DECAL Price: Call Us
45 105513X SUB= 140551 Price: Call Us
46 106042X013 CVR SHAFT GATE Price: Call Us
48 104608X DASH ASSEMBLY Price: Call Us
49 3645J BUSHING OUTLET T Price: Call Us
050 99-7526 NUT This part replaces 98-7737. Price: $1.29
50 8710J FUEL TANK STEM GT Price: Call Us
51 6999R SUB= 123487X Price: Call Us
52 7834R SUB= 8542R Price: Call Us
53 7982J SUB= 140506 Price: Call Us
54 110892X SUB= 150383 Price: Call Us
55 105464X388 FOOTREST-R.H. Price: Call Us
56 121588X NLA Price: Call Us
57 17490612 SCREW Price: Call Us
58 74760612 SUB= 74780612 Price: Call Us
59 73680600 SUB= 73690600 Price: Call Us
060 3256-24 WASHER-FLAT Price: $0.28
60 19091216 WASHER PM Price: Call Us
61 73220400 SUB= 50675 Price: Call Us
62 10090400 SUB= 10040400 Price: Call Us
63 74760616 BOLT Price: Call Us
64 19131316 WASHER Price: Call Us
65 74180512 SCREW Price: Call Us
66 73680500 SUB= 73690500 Price: Call Us
070 98-7738 WASHER-SPRING Price: $0.24
080 100-9233 WASHER-PLAIN Price: $0.48
89 108813X SUB= 138956 Price: Call Us
090 98-7692 BOLT Price: $0.92
90 121586X NLA Price: Call Us
91 105500X BELT RETAINER GT Price: Call Us
92 19131312 WASHER Price: Call Us
95 4171R CLIP T Price: Call Us
99 121144X SUB= 127018X Price: Call Us
100 98-9473 PULLEY-DRIVE, FAN Price: $319.19
101 110854X SUPPORT RH YTH Price: Call Us
102 110855X SUPPORT LH YTH Price: Call Us
103 11030400 LOCKWASHER GT Price: Call Us
104 73490400 SUB= 146525 Price: Call Us
109 121250X SPRING Price: Call Us
110 121249X SPACER SPLIT Price: Call Us
111 121246X BRKT SWITCH Price: Call Us
