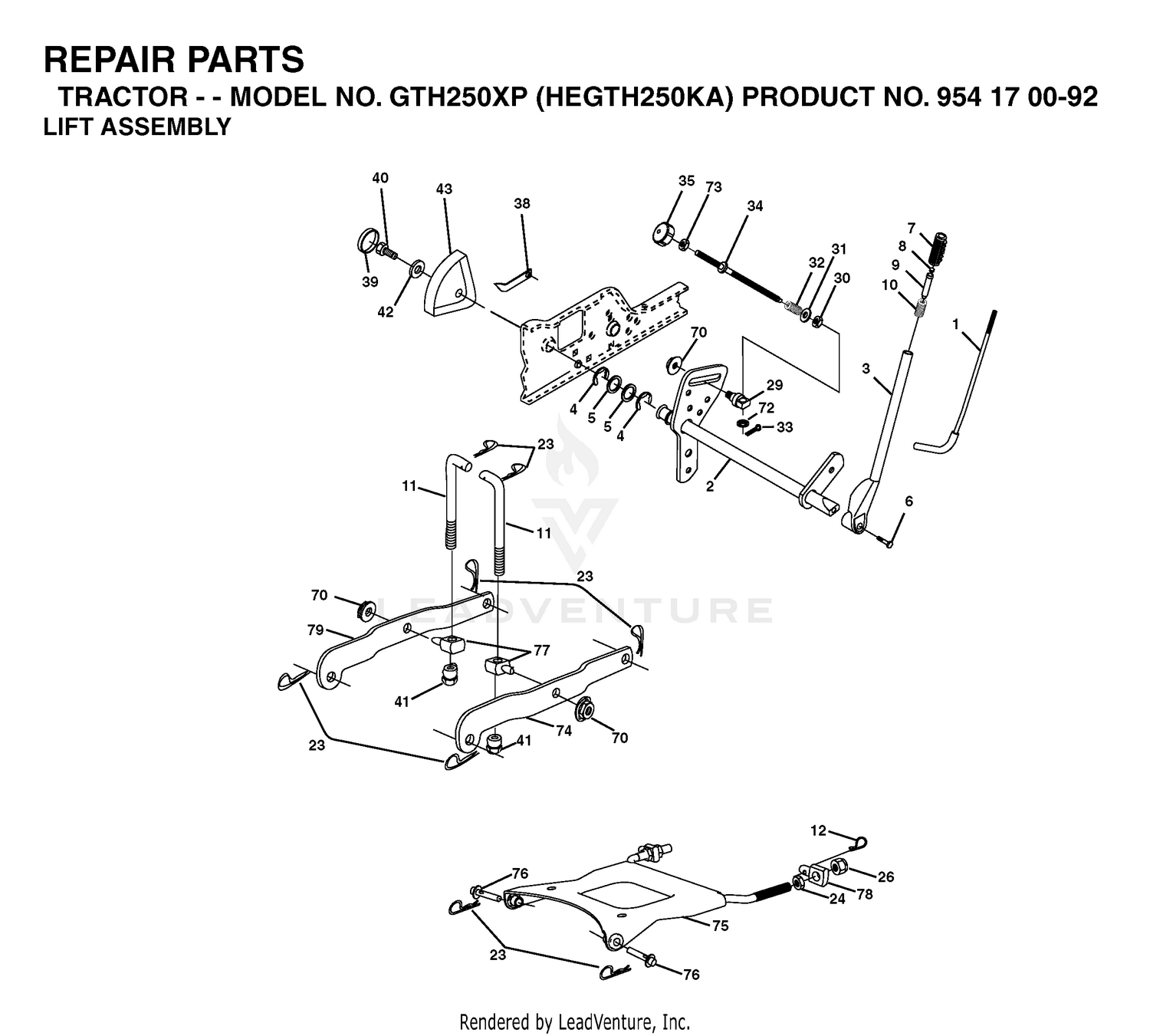

| Ref | Part Number | Description |
|---|
| 1 |
3269-5 |
RIVET-POP Price: $1.29 |
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
532180045 |
SHAFT ASM., LIFT VGT Price: $59.99 |
| 2 |
95-8707 |
COVER-DASH Price: $194.77 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 3 |
95-8763 |
BRACKET-HOLD DOWN, COVER Price: $13.94 |
| 4 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 5 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 5 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/12 Price: $2.99 |
| 6 |
95-8764-0P |
SUPPORT-MAGNET This part replaces 95-8764-03. Price: $35.03 |
| 7 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 8 |
95-8765 |
BRACKET-STRIKE, MAGNET Price: $9.32 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 9 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 10 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
532183894 |
SPRING 0.620D X 2.125 Price: $4.99 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
532181576 |
LIFT LINK This part replaces 532175375. Price: $9.99 |
| 12 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 13 |
95-8684 |
PAD-BUMPER Price: $27.13 |
| 14 |
3289-4 |
SCREW-FH Price: $3.27 |
| 15 |
104-4628 |
LINK-BRAKE, PARKING This part replaces 104-4628-03. Price: $18.33 |
| 16 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 17 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 18 |
104-4817 |
LEVER-BRAKE Price: $143.45 |
| 19 |
87-4710 |
SPACER-BRAKE, PARKING Price: $4.27 |
| 20 |
32105-9 |
SCREW Price: $0.54 |
| 21 |
95-8900 |
SWITCH Price: $95.42 |
| 22 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 23 |
3296-9 |
NUT-HEX Price: $0.25 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 24 |
321-10 |
SCREW-HH Price: $1.29 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 25 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 26 |
596433401 |
Nuts This part replaces 873680800. Price: $2.99 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 41 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 74 |
532175802 |
ARM SUSP REAR RH Price: $84.99 |
| 75 |
532175805 |
PLATE ASM SUSP FRONT Price: $69.99 |
| 76 |
532175560 |
PIN.FLANGE Price: $11.99 |
| 77 |
532176205 |
TRUNNION Price: $6.99 |
| 78 |
532175689 |
TRUNNION Price: $3.99 |
| 79 |
532175378 |
ARM SUSP. REAR LH Price: $44.99 |
| 80 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
