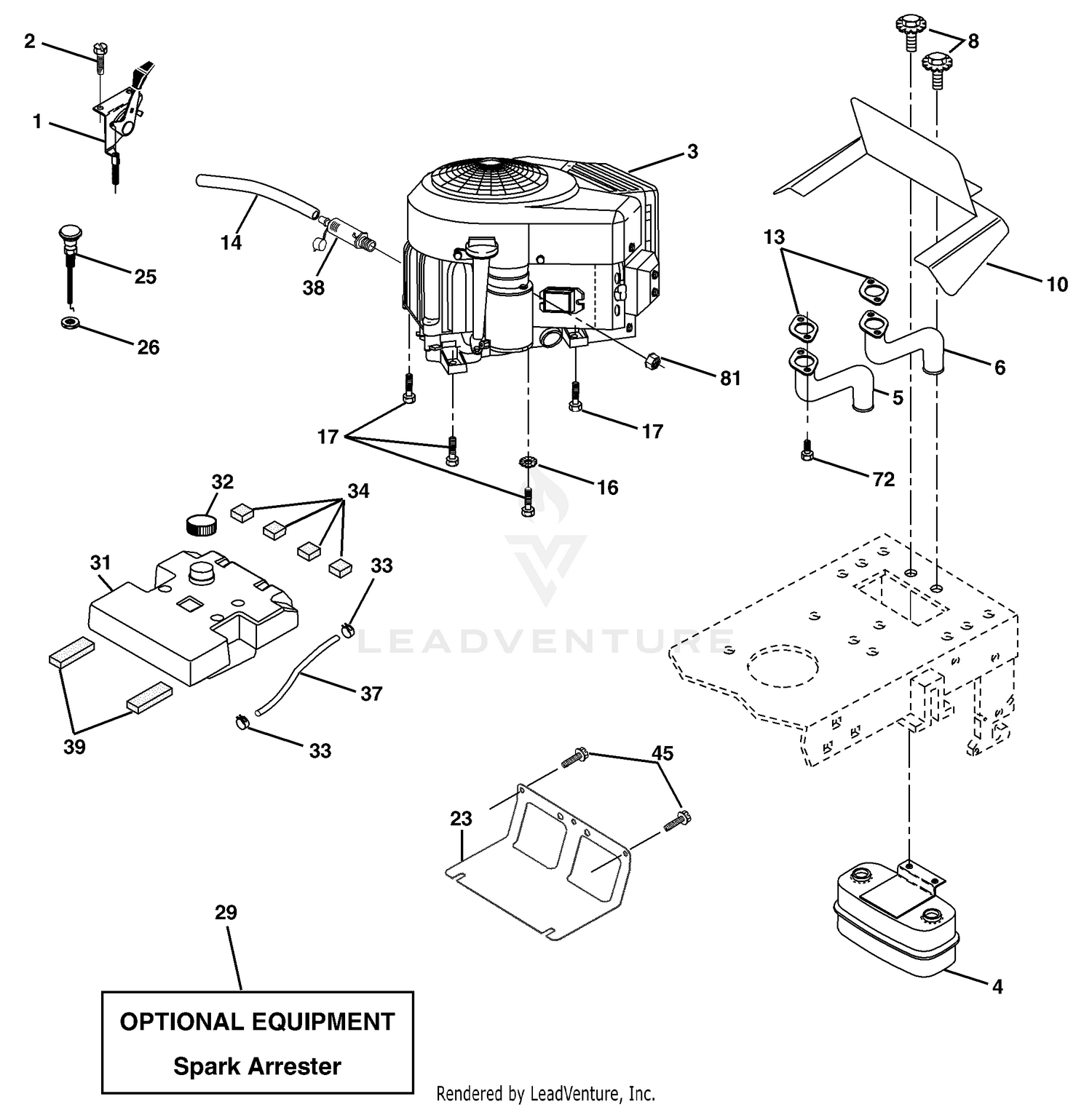

| Ref | Part Number | Description |
|---|
| 1 |
175437X428 |
Control Throttle Price: Call Us |
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3546 |
PULLEY-DRIVEN, LOW Price: $163.56 |
| 2 |
171875 |
Screw Hwhd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 3 |
112-8446 |
SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 4 |
119-4546 |
SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 4 |
149723 |
Muffler Asm Twin Lo-Tone Price: Call Us |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 5 |
159955 |
Pipe Exhaust LH Intek Price: Call Us |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 6 |
160589 |
Pipe Exhaust RH Intek Price: Call Us |
| 8 |
171877 |
Bolt 5/16-18 Unc x 3/4 w/Sems Price: Call Us |
| 10 |
162797 |
Shield Browning Intek II Price: Call Us |
| 13 |
165391 |
Muffler Gasket Price: Call Us |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 17 |
17060624 |
Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 23 |
169837 |
Shield Heat Price: Call Us |
| 25 |
175440X428 |
Choke Control Price: Call Us |
| 26 |
73920600 |
Nut, Keps 3/8-24 Unf Price: Call Us |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 31 |
157103 |
Tank Fuel 3 50 Rear Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Black Price: Call Us |
| 34 |
106082X |
Pad, Spacer Price: Call Us |
| 37 |
8543R |
Line Fuel Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 39 |
109227X |
Pad Idler Price: Call Us |
| 45 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 72 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
