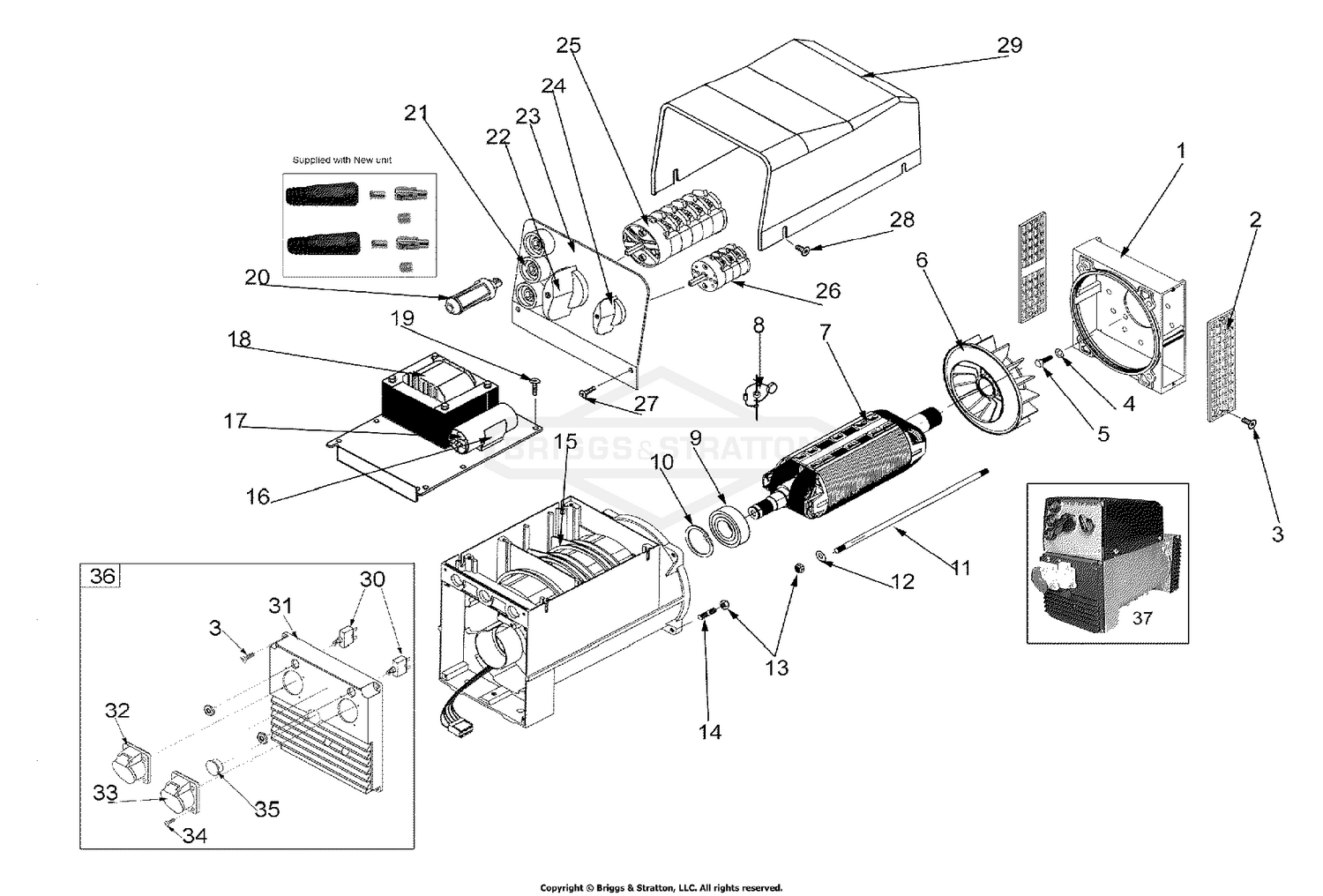

Alternator 102569GS

Alternator 102569GS

Parts (37)

RefPart NumberDescription
1 102271GS Flange Plate Price: Call Us
2 102139GS Side Grill (Plastic) Price: Call Us
3 ~NSP Screw MC PPHD M5*10mm Price: Call Us
4 ~NSP Washer Lock M10/ 3/8 OXY Black Price: Call Us
5 102279GS Screw Cap 3/8 unc * 1 1/4" Price: Call Us
6 102280GS Rotor Fan Price: Call Us
7 102383GS Rotor EW200 AC Welder Price: Call Us
8 B4916GS KIT-CAPACITOR DIODE & VAR This part replaces 102052GS. Price: $18.55
9 102283GS Bearing Assy Sincro Price: Call Us
10 ~NSP Bearing Circlip Price: Call Us
11 102285GS Rotor Bolt Sincro 325mm Price: Call Us
12 ~NSP Washer Flat M8 & 5/16" Price: Call Us
13 ~NSP Nut nylock M8-1.25 Type T Price: Call Us
14 102131GS Stud M8*30mm Price: Call Us
15 102385GS Stator EW AC 200 Welder Price: Call Us
16 ~NSP Capacitor Clip AC Welder Price: Call Us
17 102387GS Capacitor 50uF Price: Call Us
18 102388GS Impedence Welder 200AC Price: Call Us
19 ~NSP Screw MC PPHD M6*10mm Price: Call Us
20 102389GS Connector Male AC Welder Price: Call Us
21 102390GS Connector Female AC Welder Price: Call Us
22 102374GS Knob Switch 2 Position Price: Call Us
23 102392GS Panel Aluminium Blank Price: Call Us
24 102391GS Knob Switch 7 Position Price: Call Us
25 102375GS Switch 2 Weld/Gen EW200AC Price: Call Us
26 102393GS Switch 7 Position AC Welder Price: Call Us
27 ~NSP Screw Machine M5*8mm Price: Call Us
28 ~NSP SCREW M6 * 15MM Price: Call Us
29 102287GS Cover Top Box Price: Call Us
30 102261GS Circuit Breaker 20A Price: Call Us
31 102433GS Outlet Panel Blank (no outlets) Sincro 3.5/4.2 Price: Call Us
32 102419GS Socket Outlet 16A 115Volt Price: Call Us
33 102418GS Socket Outlet 16A 230V Price: Call Us
34 ~NSP Screw Self Tap #10*15mm Price: Call Us
35 102085GS End Cap Plastic (Outlet Panel) Price: Call Us
36 102447GS Outlet Panel EWACUK 2*30ACB Price: Call Us
102569GS Alternator Price: Call Us 102569GS
