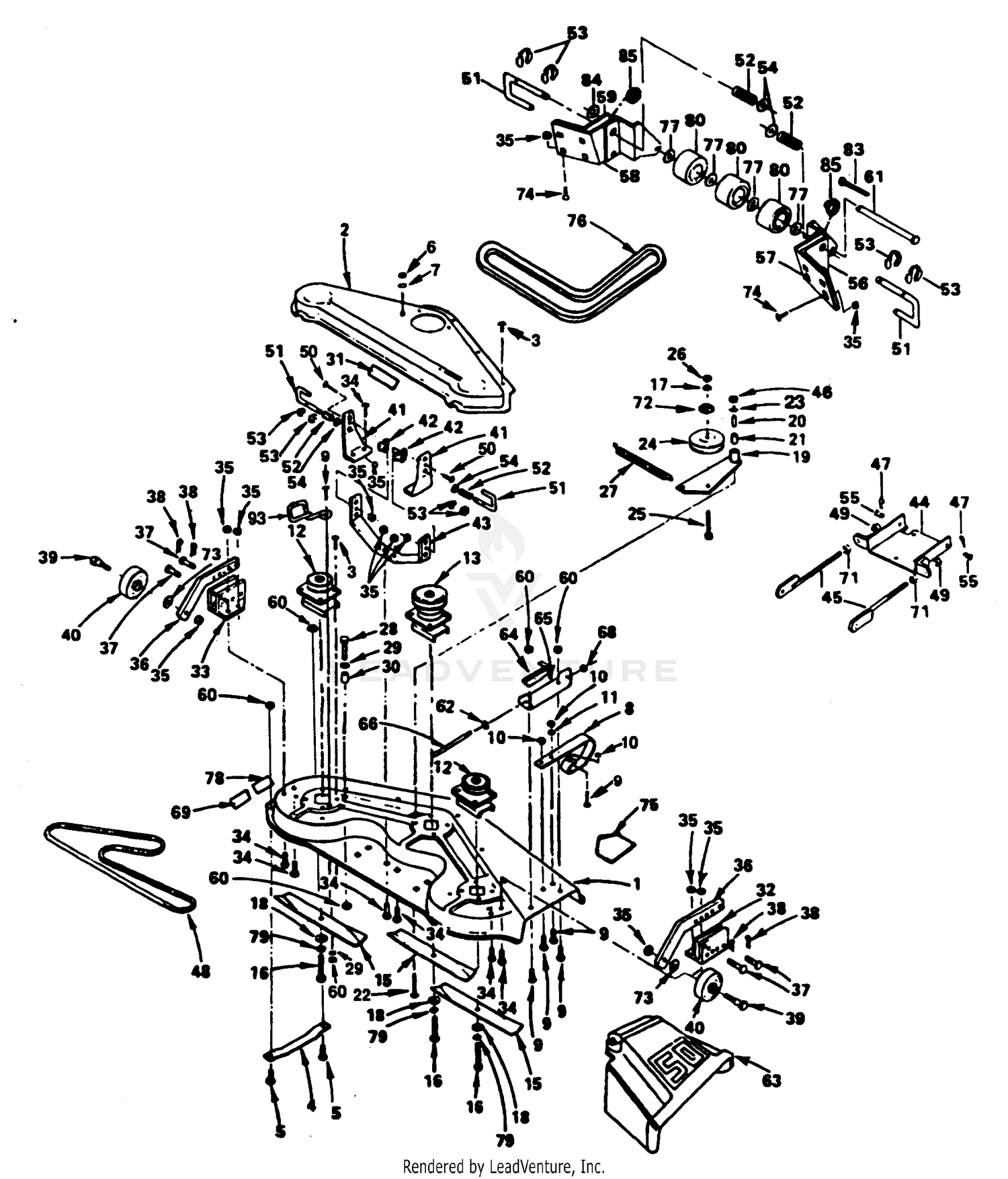

| Ref | Part Number | Description |
|---|
| 1 |
532123760 |
MOWER HOUSING This part replaces 532121664. Price: $302.55 |
| 1 |
84-8290 |
HYD CYLINDER ASSY This part replaces 353-442. Price: $335.46 |
| 2 |
532121875 |
Deck Drive Cover (AYP part number) Price: $3.33 |
| 3 |
817490508 |
Thd. Roll. Washer Hex Screw (AYP part number) Price: $3.99 |
| 4 |
532007631 |
Runner, Mower LH (AYP part number) This part replaces 532125074. Price: $11.99 |
| 5 |
84-8290 |
HYD CYLINDER ASSY This part replaces 353-443. Price: $335.46 |
| 5 |
872110505 |
Carriage Bolt (AYP part number) Price: $3.99 |
| 6 |
810040500 |
Lock Washer 5/16 (AYP part number) Price: $2.99 |
| 7 |
873220500 |
Hex Nut 5/16-18 (AYP part number) Price: $3.99 |
| 8 |
532136320 |
Runner, RH (AYP part number) This part replaces 532120449. Price: $7.99 |
| 8 |
84-8290 |
HYD CYLINDER ASSY This part replaces 353-448. Price: $335.46 |
| 9 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 10 |
532068478 |
LOCKNUT This part replaces 532001685. Price: $3.99 |
| 11 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 12 |
353-447 |
DISCONTINUED Price: Call Us |
| 12 |
532136819 |
MANDREL ASM SEC 44/50 This part replaces 532121658. Price: $79.99 |
| 13 |
353-444 |
INNER LOCK RING Price: $5.40 |
| 13 |
532121657 |
Primary Mandrel (AYP part number) Price: $89.99 |
| 14 |
353-445 |
DISCONTINUED Price: Call Us |
| 14 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 15 |
353-446 |
OUTER LOCK RING Price: $31.47 |
| 15 |
532121798 |
Blade Price: $17.99 |
| 16 |
874610624 |
Hex Bolt 3/8-24 x 1-1/2 Gr. 5 (AYP part number) Price: $3.99 |
| 17 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 18 |
819132012 |
Washer (AYP part number) Price: $2.99 |
| 19 |
532124685 |
Idler Arm Assembly (AYP part number) Price: $9.99 |
| 20 |
532124702 |
Bearing Liner (AYP part number) Price: $17.99 |
| 21 |
532007835 |
Bearing (AYP part number) Price: $17.99 |
| 22 |
872110522 |
Carriage Bolt (AYP part number) Price: $2.99 |
| 23 |
819111816 |
Washer (AYP part number) Price: Call Us |
| 24 |
532102403 |
Idler Pulley (AYP part number) Price: $22.99 |
| 25 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 26 |
873220600 |
Hex Nut 3/8-16 (AYP part number) Price: $3.99 |
| 27 |
532104361 |
Spring (AYP part number) Price: $3.65 |
| 28 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD This part replaces 874780520. Price: $2.99 |
| 29 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 30 |
532008438 |
Split Spacer (AYP part number) Price: $2.99 |
| 31 |
532106224 |
Dr. Schematic V-Belt Mower Decal (AYP part number) Price: $3.33 |
| 32 |
532105448 |
R.H. Ga. Wheel Bracket (AYP part number) Price: $10.51 |
| 33 |
532105449 |
L.H. Ga. Wheel Bracket (AYP part number) Price: $10.51 |
| 34 |
872240606 |
Carriage Bolt 3/8-16 x 3/4 (AYP part number) Price: $2.99 |
| 35 |
873680600 |
Crownlock Nut Price: $1.99 |
| 36 |
532105453 |
Ga. Wheel Bar (AYP part number) Price: $14.99 |
| 37 |
532139031 |
Pin, Clevis (AYP part number) This part replaces 532005565. Price: $3.99 |
| 38 |
532124670 |
Spring Retainer (AYP part number) Price: $5.99 |
| 39 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 40 |
532105455 |
Gauge Wheel (AYP part number) Price: $11.99 |
| 41 |
532105433 |
Suspension Bracket (AYP part number) Price: $4.99 |
| 42 |
532110237 |
Spacer (AYP part number) Price: $3.99 |
| 43 |
532105434 |
Suspension Brace (AYP part number) Price: $7.99 |
| 44 |
532109778 |
Mower Suspension Plate Assembly (AYP part number) Price: $29.08 |
| 45 |
532109771 |
Suspension Bracket (AYP part number) Price: $16.99 |
| 46 |
873220500 |
NUT This part replaces 873350500. Price: $3.99 |
| 47 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 48 |
532003703 |
V-Belt (AYP part number) Price: $44.99 |
| 49 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873680800. Price: $1.99 |
| 50 |
874760622 |
Hex Bolt (AYP part number) Price: $2.99 |
| 51 |
532105435 |
Release Pin (AYP part number) Price: $10.21 |
| 52 |
532003720 |
Spring (AYP part number) Price: $3.99 |
| 53 |
812000039 |
Klip Ring (AYP part number) Price: $3.99 |
| 54 |
532052160 |
Washer (AYP part number) This part replaces 819171612. Price: $3.99 |
| 55 |
532105440 |
Clevis Pin (AYP part number) Price: $4.62 |
| 56 |
532105458 |
R.H. Outer Bracket (AYP part number) Price: $3.74 |
| 57 |
532109773 |
R.H. Inner Bracket (AYP part number) Price: $18.98 |
| 58 |
532110997 |
L.H. Inner Bracket (AYP part number) Price: $15.76 |
| 59 |
532120000 |
L.H. Outer Bracket (AYP part number) Price: $4.99 |
| 60 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 61 |
532109776 |
Pivot Pin (AYP part number) Price: $8.99 |
| 62 |
819111016 |
Washer (AYP part number) Price: $5.99 |
| 63 |
532110509 |
Deflector Shield (AYP part number) Price: $22.99 |
| 64 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 65 |
532137607 |
Bracket Assembly, Deflector (AYP part number) This part replaces 532109743. Price: $3.99 |
| 66 |
532106735 |
Hinge Rod (AYP part number) Price: $4.99 |
| 68 |
532110452 |
Push Nut (AYP part number) Price: $1.99 |
| 69 |
532003713 |
Caution Instruction Decal (AYP part number) Price: $13.98 |
| 71 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 72 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 73 |
819171512 |
Washer (AYP part number) Price: $3.99 |
| 74 |
872240608 |
Carriage Bolt (AYP part number) Price: $2.99 |
| 75 |
532121349 |
Warning Decal (AYP part number) Price: $2.99 |
| 76 |
532110884 |
V-Belt (AYP part number) Price: $19.99 |
| 77 |
819151610 |
Washer (AYP part number) Price: $5.99 |
| 78 |
532105185 |
Instruction Decal (AYP part number) Price: $4.62 |
| 79 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 80 |
532109729 |
Nose Roller (AYP part number) Price: $6.99 |
| 83 |
876020412 |
Retainer Spring (AYP part number) Price: $3.99 |
| 84 |
532052160 |
Washer (AYP part number) This part replaces 819151616. Price: $3.99 |
| 85 |
532120135 |
Spacer (AYP part number) Price: $2.42 |
