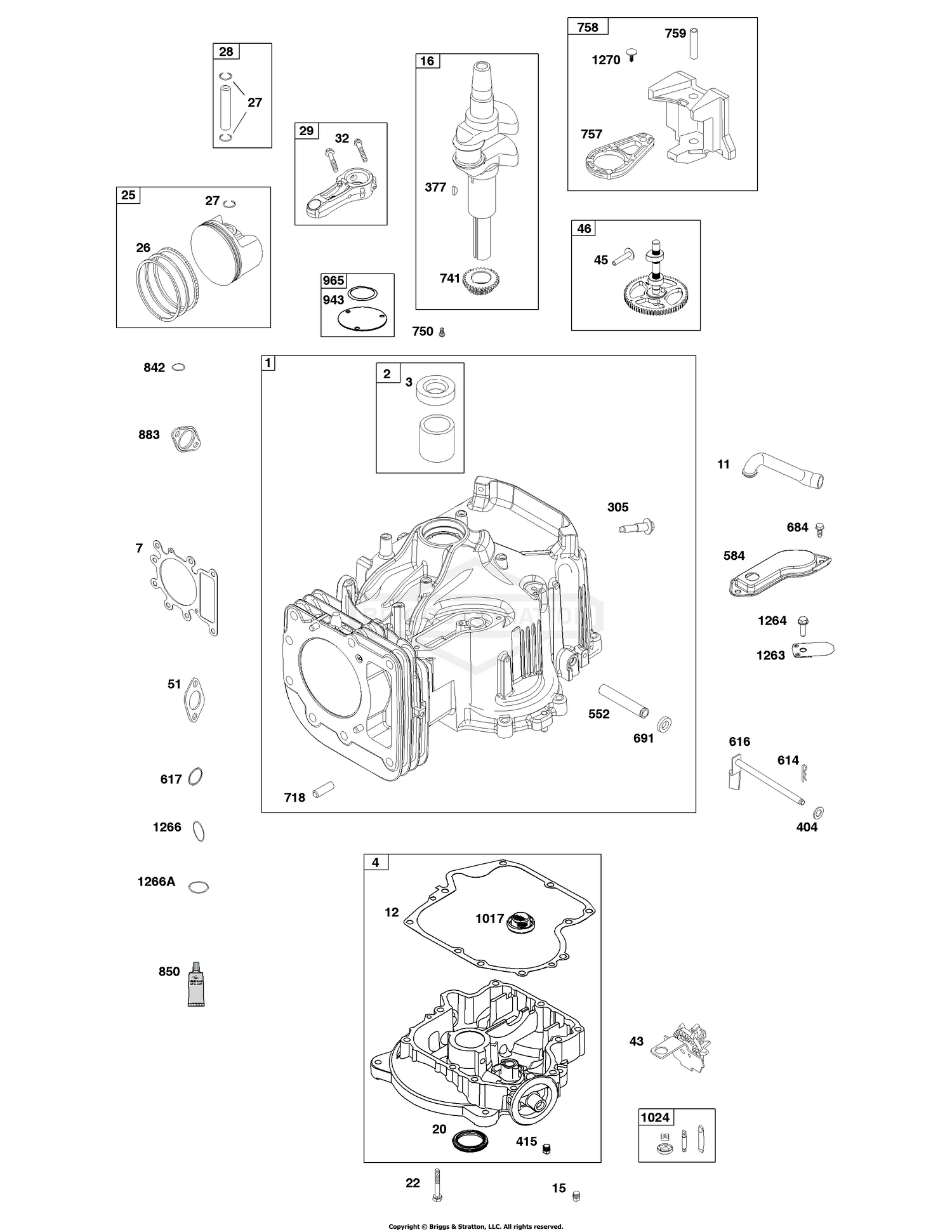

| Ref | Part Number | Description |
|---|
| 1 |
697377 |
CYLINDER ASSEMBLY Price: $417.82 |
| 4 |
592849 |
SUMP, Engine Price: $221.84 |
| 7 |
273280S |
GASKET, Cylinder Head Price: $9.69 |
| 11 |
794683 |
TUBE, Breather Price: $7.07 |
| 12 |
697110 |
GASKET, Crankcase Price: $6.65 |
| 15 |
690946 |
PLUG, Oil Drain Price: $5.05 |
| 16 |
593417 |
CRANKSHAFT Price: $323.66 |
| 25 |
597230 |
PISTON ASSEMBLY Price: $141.23 |
| 26 |
797011 |
SET, Ring This part replaces 792306. Price: $51.18 |
| 27 |
698469 |
LOCK, Piston Pin Price: $3.99 |
| 28 |
84002062 |
PIN, PISTON This part replaces 797013. Price: $11.54 |
| 29 |
791633 |
ROD, Connecting Price: $70.61 |
| 43 |
691968 |
SLINGER, Governor/Oil Price: $33.26 |
| 45 |
690564 |
TAPPET, Valve Price: $8.46 |
| 46 |
84005207 |
CAMSHAFT This part replaces 793880. Price: $92.96 |
| 51 |
692137 |
GASKET-INTAKE Price: $2.79 |
| 377 |
691639 |
KEY, Woodruff Price: $3.69 |
| 415 |
794903 |
PLUG Price: $4.82 |
| 552 |
697144 |
BUSHING, Governor Crank Price: $7.85 |
| 584 |
794682 |
COVER, Breather Passage Price: $8.23 |
| 614 |
691620 |
PIN, Cotter Price: $3.70 |
| 616 |
692012 |
CRANK, Governor Price: $12.23 |
| 691 |
692407 |
SEAL, Governor Shaft Price: $6.62 |
| 718 |
690959 |
PIN, Locating Price: $5.75 |
| 741 |
697128 |
GEAR, Timing Price: $18.35 |
| 757 |
793242 |
LINK, Counterweight Price: $18.35 |
| 758 |
593418 |
COUNTERWEIGHT Price: $69.54 |
| 759 |
697392 |
PIN, Counterweight Price: $5.17 |
| 850 |
100106 |
SEALANT, Liquid Price: $11.90 |
| 883 |
692236 |
GASKET, Exhaust Price: $4.43 |
| 965 |
499613 |
COVER, Oil Pump Price: $11.64 |
| 1017 |
796981 |
SCREEN, Oil Pump Price: $14.47 |
| 1024 |
794644 |
PUMP-OIL Price: $31.15 |
| 1263 |
697124 |
REED, Breather Price: $6.46 |
