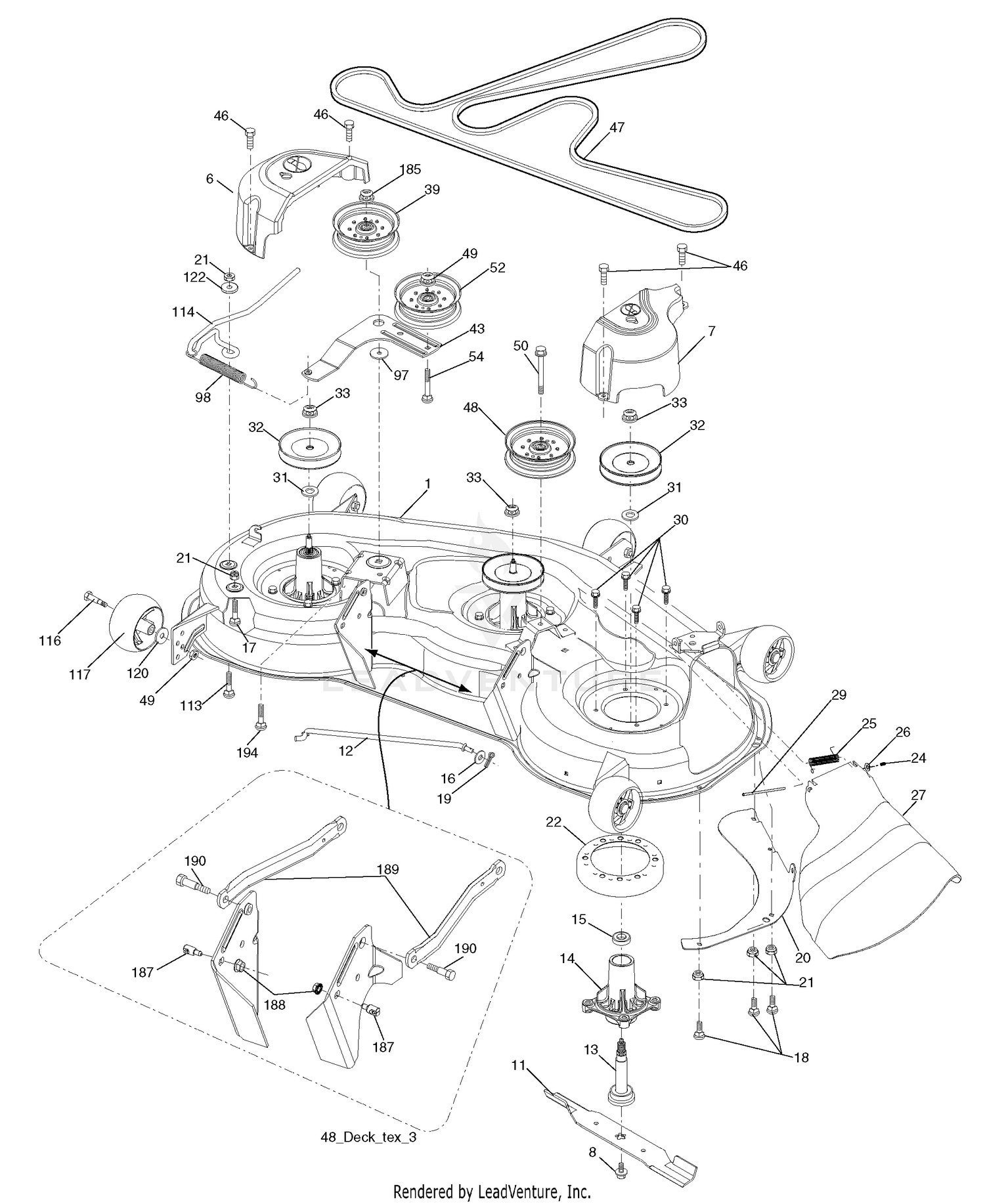

| Ref | Part Number | Description |
|---|
| 1 |
197216 |
Deck Weldment Mower Price: Call Us |
| 6 |
197248 |
Cover Mandrel LH Price: Call Us |
| 7 |
199102 |
Cover Mandrel RH Price: Call Us |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 010 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 11 |
173921 |
Blade Mulching Price: Call Us |
| 11 |
180054 |
Blade High Lift Price: Call Us |
| 12 |
400337 |
Rod Anti-Sway Price: Call Us |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
19131312 |
Washer 13/23 x 13/16 x 1 2Ga. Price: Call Us |
| 17 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 18 |
72140505 |
Bolt RdHd 5/16-18 unc x 5/8 Price: Call Us |
| 19 |
194208 |
Pin Cotter 5/16 Bowtie Lock Price: Call Us |
| 020 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 20 |
174378 |
Baffle Vortex Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 22 |
174493 |
Stripper Mandrel Deck Price: Call Us |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
180655X428 |
Deflector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 030 |
98-7708 |
NUT Price: $7.76 |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173435 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 39 |
196104 |
Pulley, Idler, Stationary Price: Call Us |
| 040 |
98-7709 |
COLLAR Price: $8.79 |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
197242 |
Belt Drive Deck Price: Call Us |
| 48 |
177968 |
Pulley Idler Primary Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 050 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 50 |
17490636 |
Screw 3/8-16 x 1-1/4 unc Price: Call Us |
| 52 |
196106 |
Pulley Idler Price: Call Us |
| 54 |
72110612 |
Bolt Carriage 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 060 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 070 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 080 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 090 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
197451 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
98-7720 |
COVER-END Price: $39.58 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
739000500 |
Nut Lock Hex Flange Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 194 |
72140716 |
Bolt Carr Sqnk 3/8-16 x 2-1/4 Price: Call Us |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
