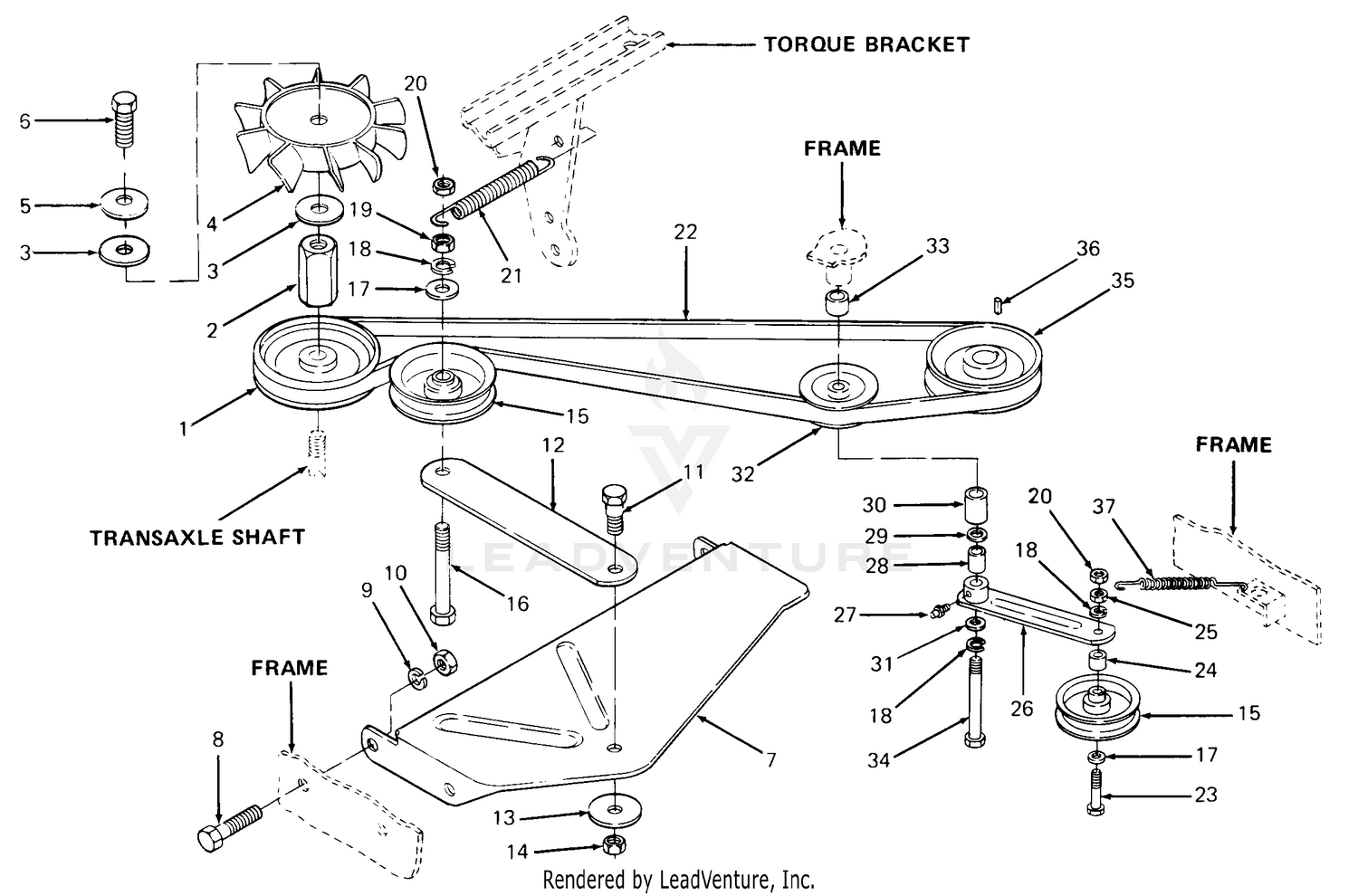

| Ref | Part Number | Description |
|---|
| 1 |
756-3038 |
V-Pulley, 4.0 Dia Price: $64.29 |
| 1 |
92-7531-03 |
TUBE-PUMP CONTROL This part replaces 92-7531. Price: $139.90 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
711-3243 |
FAN ADAPTER 1.0 LG. Not Available Price: |
| 3 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 3 |
736-3021 |
FLAT WASHER 17/32X1.5X11GA. Not Available Price: |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
323-9 |
SCREW-HH Price: $1.29 |
| 5 |
736-0253 |
Washer, Bell, .505 X 1.00 X .075 Price: $3.58 |
| 6 |
710-3194 |
Bolt, Hex, 1/2-20 X .75 Lg GR5 Price: $6.01 |
| 6 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 7 |
703-1534 |
BRACKET-CLUTCH MTG. Not Available Price: |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 9 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 9 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 11 |
738-0140 |
Screw, Shoulder Price: $4.93 |
| 12 |
703-1644-0637 |
HYDRO IDLER BRACKET (POWDER BLACK) Not Available This part replaces 703-1644. Price: |
| 12 |
92-7608-03 |
BRACKET-SPRING This part replaces 92-7608. Price: $16.86 |
| 13 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 13 |
936-0123 |
WASHER-FL NLAUD Not Available This part replaces 736-0123. Price: |
| 14 |
712-3009 |
Nut, Hex Center Lock, 5/16-18 GR5 Price: $5.99 |
| 14 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 15 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 15 |
956-3054 |
FLAT IDLER WITH FLANGES 2.75 This part replaces 756-3054. Price: $45.71 |
| 16 |
710-3011 |
Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5 Price: $6.49 |
| 16 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 17 |
736-0185 |
Washer, Flat, .406 X .75 X .063 Thk Price: $3.43 |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 18 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 18 |
736-0169 |
Washer, Lock, 3/8 Price: $3.33 |
| 19 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 19 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 20 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 20 |
712-0266A |
Nut, Jam Lock, 3/8-16 This part replaces 712-0266. Price: $3.43 |
| 21 |
233-42 |
KNOB Price: $12.88 |
| 21 |
932-0429A |
Extension Spring 3.97" Lg. This part replaces 732-0429A. Price: $8.29 |
| 22 |
75-6490 |
LEVER ASM Price: $78.45 |
| 22 |
954-3037 |
V-BELT 1/2 x 80 This part replaces 754-3037. Price: $38.79 |
| 23 |
710-3022 |
Screw, Hex Cap, 3/8-16 X 2.75 Lg GR5 Price: $4.09 |
| 23 |
84-3500 |
DECAL - SPEED CONTROL Price: $13.52 |
| 23 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 24 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 24 |
750-0497 |
Spacer, .375 X .625 X .445 Lg Price: $9.24 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 26 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
703-1396-0637 |
IDLER ARM(POWDER BLACK) Not Available This part replaces 703-1396. Price: |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
937-3000 |
Grease Fitting This part replaces 7373000. Price: $4.04 |
| 28 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 28 |
950-0252 |
Idler Spacer Not Available This part replaces 750-0252. Price: |
| 29 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 29 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 30 |
711-3263 |
SPACER .38X.75X1.2 Not Available Price: |
| 30 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 31 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 31 |
736-0247 |
Washer, Flat, .406 X 1.25 X X .157 Thk Price: $8.82 |
| 32 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 32 |
756-1035A |
Idler Pulley This part replaces 756-0166. Price: $30.37 |
| 33 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 33 |
711-3175 |
BUSHING-.390 x 1.0 x .812 LG Not Available Price: |
| 34 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 34 |
710-3153 |
SCREW 3/8-16 x 4.75 GR5 Not Available Price: |
| 35 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 35 |
756-3033 |
ENGINE PULLEY Not Available Price: |
| 36 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 36 |
714-0119 |
Key, Square, 1/4 X .75 Lg Price: $7.27 |
| 37 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 38 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 39 |
256-42 |
BUSHING Price: $7.03 |
| 40 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 41 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 42 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 43 |
60-5700 |
SPRING Price: $27.02 |
| 44 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 45 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 46 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 47 |
5-0652 |
SPACER Price: $5.35 |
| 48 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 501444501 |
501444501 |
GUIDE PLATE Price: $5.99 |
| 501480901 |
501480901 |
SPRING Price: $4.99 |
| 501610002 |
501610002 |
FELLING DOG Price: $27.99 |
| 501611701 |
501611701 |
Price: $11.40 |
| 501768701 |
501768701 |
Price: $3.67 |
| 501813601 |
501813601 |
DUST GUARD NLA Price: $7.94 |
| 501823201 |
501823201 |
Price: $21.41 |
| 501823901 |
501823901 |
Price: $7.33 |
| 501824101 |
501824101 |
Price: $20.89 |
| 501824301 |
501824301 |
PIVOT SLEEVE NLA Price: $7.46 |
| 501824401 |
501824401 |
Price: $7.26 |
| 501831001 |
501831001 |
Price: $5.67 |
| 503220001 |
503220001 |
NUT M8 FLANGE Price: $2.99 |
| 503415171 |
503415101 |
CHAINBRAKE CPL NLA This part replaces 503415171. Price: $160.93 |
| 503415201 |
503415201 |
CLUTCH COVER Price: $64.28 |
| 503415301 |
503415301 |
Price: $93.65 |
| 503415601 |
503415601 |
BRAKE BAND NLA Price: $21.25 |
| 503415801 |
503415801 |
Price: $3.72 |
| 721425250 |
721425250 |
SPIRAL PIN 4X12 Price: $2.99 |
| 722142401 |
722142401 |
Price: $2.05 |
| 725529356 |
725529356 |
SCREW MC6S 4X16 Price: $4.99 |
| 725636755 |
725636755 |
SCREW MF6S 6X14 Price: $3.99 |
| 731231655 |
503222402 |
NUT This part replaces 731231655. Price: $4.99 |
