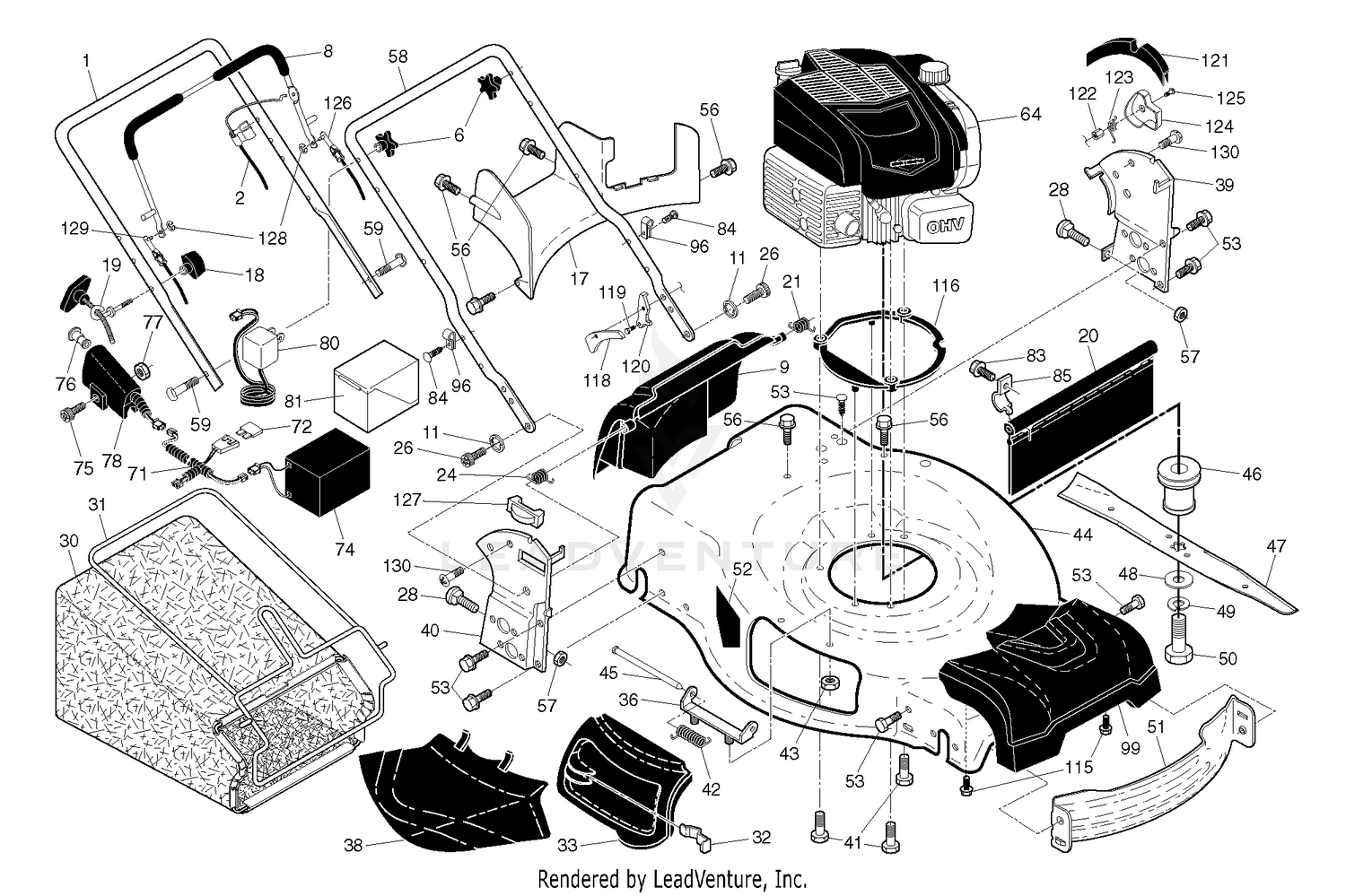

| Ref | Part Number | Description |
|---|
| 1 |
580638706 |
HANDLE.UPPER.3.POS.BS.AW2.GREY Price: $44.99 |
| 2 |
532440386 |
CABLE.MZR.RGD.22.B&S/HON.ERGO Price: $17.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 8 |
585251806 |
BAIL.CONTROL.MZR.ERGO.EZS.O/B Price: $19.99 |
| 9 |
585847603 |
DOOR.REAR.ASM.22+GEN.FG/RG.498 Price: $32.99 |
| 10 |
105-3714 |
GAUGE-OIL Price: $58.87 |
| 11 |
579482801 |
E-RING.12MM.SHAFT Price: $3.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $32.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 20 |
110-3720 |
PLUG-GAUGE, OIL Price: $18.99 |
| 20 |
532444501 |
SKIRT.REAR.22PLUS.RGD.LW(2 2MC Price: $11.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $2.99 |
| 30 |
580943401 |
RB GBAG.B55110010.GENERIC.SERV This part replaces 580943408. Price: $39.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $17.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $3.99 |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532419927. Price: $5.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 41 |
532850999 |
SCREW Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
| 44 |
581708362 |
KIT.HSG.22+AW.MC.WO.668.CE SYM This part replaces 581708354. Price: $129.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581650901 |
ADAPTER.BLADE.25M.B&S.AWD Price: $14.99 |
| 47 |
587199603 |
BLADE.22".REAPER.BLACK. This part replaces 587199601. Price: $17.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532179617 |
BOLT.BLADE Price: $4.99 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $12.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
585250702 |
HANDLE.LOWER.22+EZS.498 Price: $24.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 71 |
587934401 |
HARNESS.WIRE.ES.RGD.BUTTON.CON Price: $22.99 |
| 72 |
532425937 |
FUSE, 40A Price: $3.99 |
| 74 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532431584. Price: $84.99 |
| 75 |
532446694 |
BOLT.M6-1X40.T30 Price: $2.99 |
| 76 |
580915202 |
BUTTON.KEY.CYLINDER.BLACK Price: $17.99 |
| 77 |
597434101 |
NUT LOCK NUT M6 NYLOC INSERT H This part replaces 532446695. Price: $1.99 |
| 78 |
587934301 |
STARTER.ASM.PUSH.BUTTON Price: $44.99 |
| 80 |
597186301 |
Chargers This part replaces 587007101. Price: $32.99 |
| 81 |
585152402 |
COVER.BATTERY.BOX 22+RDG.GRY Price: $37.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 99 |
585668701 |
COVER.ASSEMBLY.FRONT.22+AWD Price: $27.99 |
| 115 |
581330001 |
SCREW.SHOULDER.5/16X1.375 Price: $3.99 |
| 116 |
581745601 |
SPACER.AWD.B&S Price: $8.99 |
| 119 |
585487601 |
BOLT.PAWL.M6 Price: $2.99 |
| 122 |
585487701 |
NUT.PAWL.M6 Price: $2.99 |
| 125 |
585547901 |
SCREW.TORX.PAN HEAD.M6-1 Price: $2.99 |
| 126 |
585251601 |
CABLE.MZR.EZS.LH.DSTR/ERGO Price: $6.99 |
| 127 |
585252401 |
DOOR.REAR.LIFT.ASM EZS Price: $7.99 |
| 128 |
585984701 |
E-RING.5/32.HD Price: $2.99 |
| 129 |
585251705 |
CABLE.MZR.EZS.RH.ERGO.PB Price: $24.99 |
| 130 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
