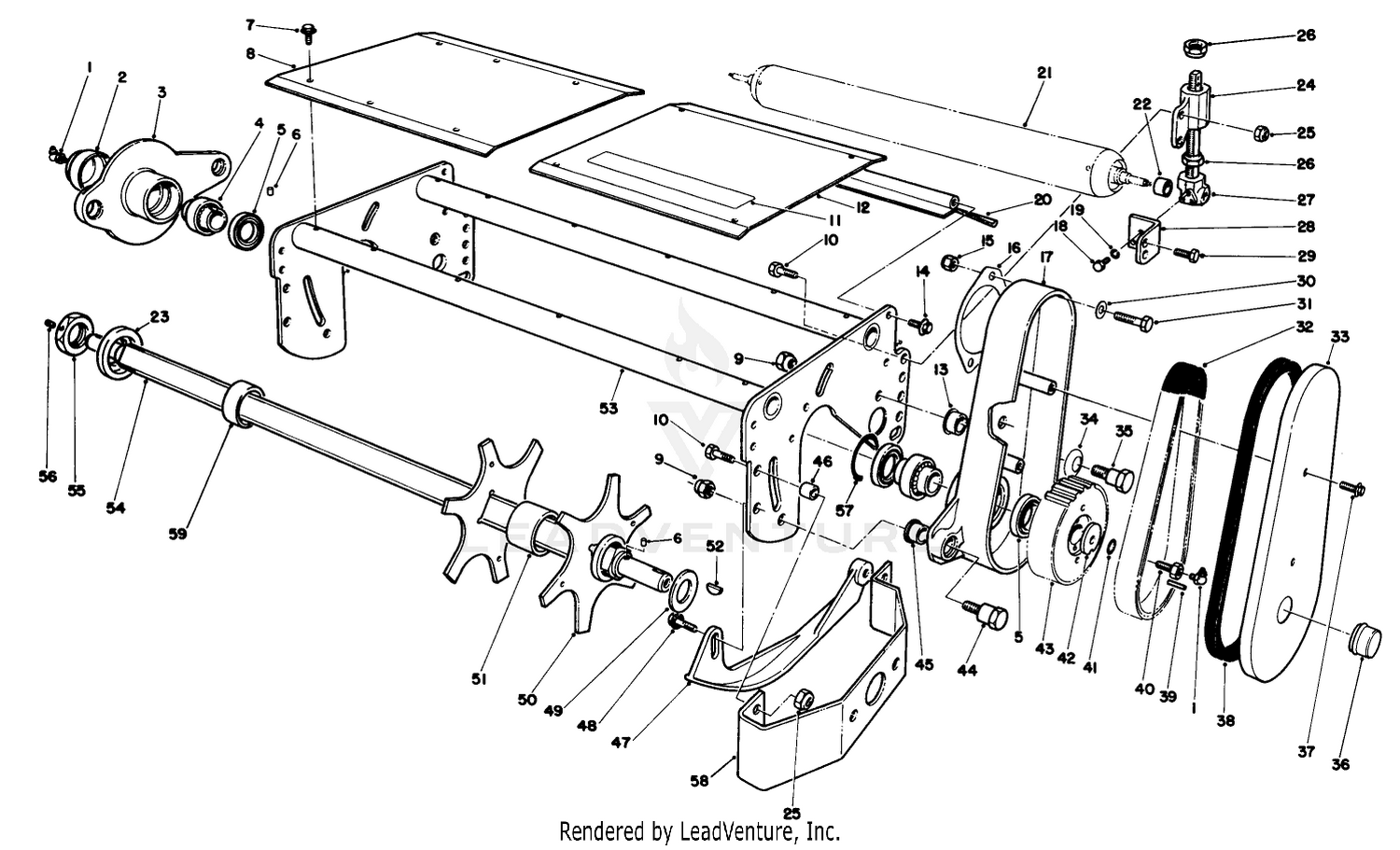

| Ref | Part Number | Description |
|---|
| 1 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 2 |
59-5560 |
CAP-DUST Price: $27.70 |
| 3 |
13-7749 |
HOUSING AND BEARING ASM This part replaces 59-5550. Price: $281.00 |
| 4 |
59-6140 |
BEARING Price: $92.24 |
| 5 |
93-1414 |
SEAL-GREASE This part replaces 253-145. Price: $7.54 |
| 6 |
48-8880 |
PIN-DOWEL Price: $1.70 |
| 7 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 8 |
59-5830-01 |
COVER-FRAME This part replaces 59-5830. Price: $35.24 |
| 9 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 10 |
325-7 |
SCREW-HH Price: $1.53 |
| 11 |
59-7790 |
DISCONTINUED Price: Call Us |
| 12 |
100-9993 |
FRONT COVER ASM This part replaces 59-5840. Price: $44.16 |
| 13 |
256-252 |
BEARING-FLANGE Price: $5.35 |
| 14 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 15 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 16 |
48-9050 |
SHIELD-PLATE, DRIVE Price: $15.38 |
| 17 |
62-6480-01 |
DRIVE HSG LH (MACH) This part replaces 62-6480. Price: $222.75 |
| 18 |
322-2 |
SCREW-HH Price: $0.69 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
75-7680-01 |
DEFLECTOR-GRASS ASM This part replaces 52-9660. Price: $93.26 |
| 21 |
59-5630 |
ROLLER ASM Price: $479.63 |
| 22 |
59-5780 |
ROLLER BUSHING ASM Price: $21.34 |
| 24 |
59-5770-01 |
HOUSING-ADJUSTMENT This part replaces 59-5770. Price: $71.35 |
| 25 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 26 |
59-5820 |
NUT-CONE Price: $12.82 |
| 27 |
84-6160 |
COLLAR AND BUSHING ASM This part replaces 84-6100. Price: $118.96 |
| 28 |
59-6010-01 |
BRACKET-SKID, LH This part replaces 59-6010. Price: $25.03 |
| 29 |
325-5 |
SCREW-HH Price: $1.20 |
| 30 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 31 |
324-6 |
SCREW-HH Price: $0.81 |
| 32 |
47-7160 |
BELT Price: $26.00 |
| 33 |
48-9081-01 |
COVER-DRIVE HOUSING, LH This part replaces 48-9081. Price: $52.14 |
| 34 |
3290-440 |
WASHER-BELLEVILLE Price: $7.46 |
| 35 |
48-9020 |
BOLT-SHOULDER Price: $16.08 |
| 36 |
59-7490 |
PLUG-FITTING, GREASE Price: $3.54 |
| 37 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 38 |
47-7170 |
GASKET-COVER Price: $22.96 |
| 39 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 40 |
59-6190 |
CAPSCREW-SHAFT, REEL Price: $22.17 |
| 41 |
3254-4 |
WASHER-LOCK/INT Price: $0.34 |
| 42 |
59-6150 |
WASHER-PULLEY Price: $15.54 |
| 43 |
47-7140 |
PULLEY-DRIVEN Price: $290.32 |
| 44 |
59-6340 |
SHOULDER BOLT Price: $26.19 |
| 45 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 46 |
59-6030 |
SPACER Price: $5.69 |
| 47 |
84-0810-01 |
SKID-CASTING, LH This part replaces 84-0810. Price: $125.42 |
| 48 |
3234-27 |
SCREW-HHF Price: $5.97 |
| 49 |
38-7330 |
SHIELD WASHER Price: $6.11 |
| 52 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 53 |
59-6250-01 |
FRAME WA This part replaces 59-6250. Price: $476.41 |
| 54 |
59-6290 |
SHAFT & STOP Price: $305.92 |
| 55 |
59-6330 |
NUT Price: $125.54 |
| 56 |
3246-17 |
SETSCREW-HSH Price: $0.47 |
| 57 |
32151-71 |
RING-RETAINING, INTERNAL Price: $2.10 |
| 58 |
72-0470-01 |
GUARD This part replaces 72-0470. Price: $39.91 |
