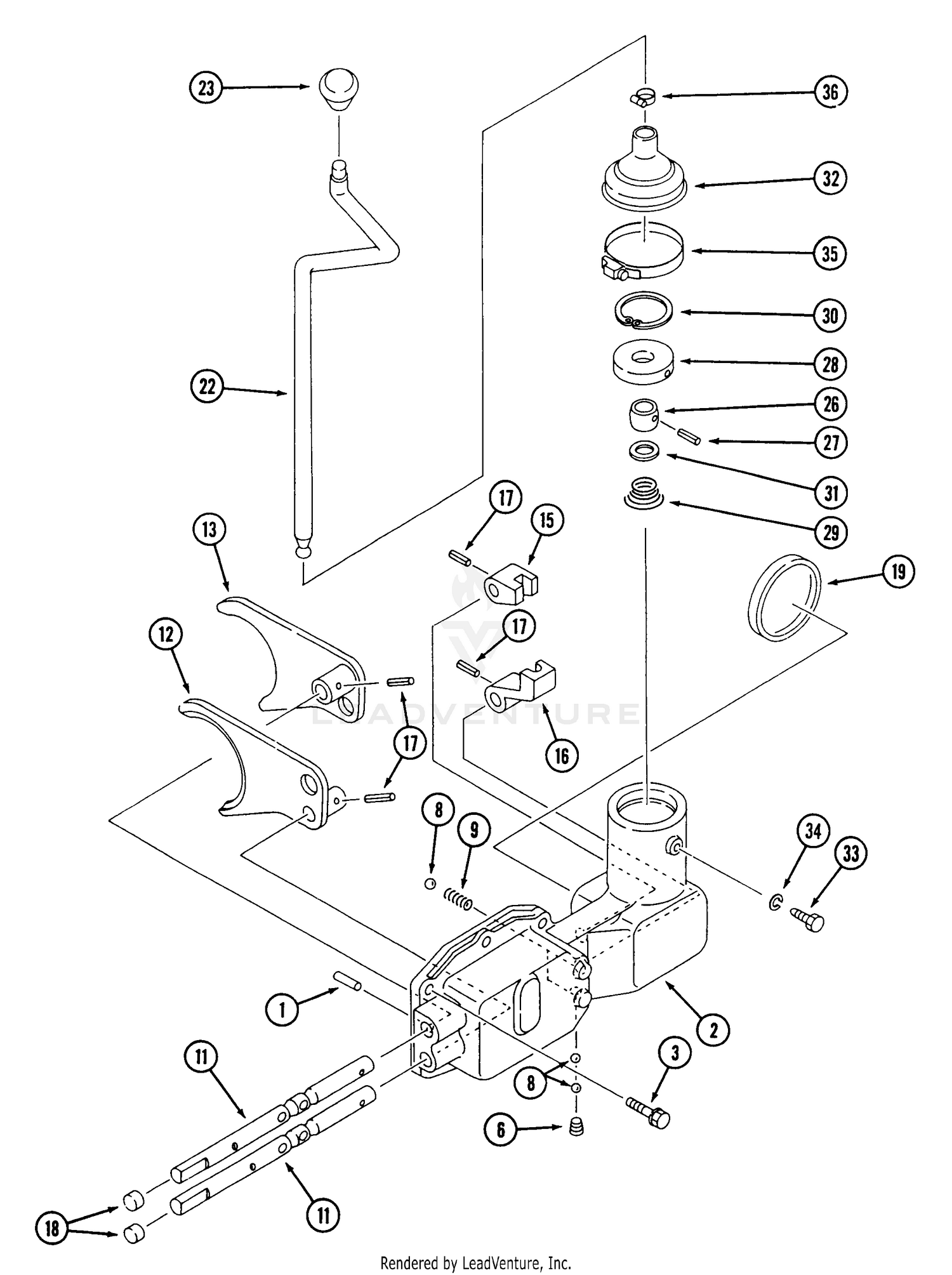

T/M Control Gear (Part 1)
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 146139 | SUB= 123899X Price: Call Us |
| 1 | 76-0860 | SHAFT-COUPLING Price: $688.74 |
| 1 | MA-05401010020 | PIN Not Available Price: |
| 2 | 76-0850 | BEARING-THRUST Price: $30.56 |
| 2 | MA-19641701AG0 | COVER,CONT Not Available Price: |
| 3 | 19091016 | WASHER Price: Call Us |
| 3 | 92-9761 | LINK-DRIVE Price: $313.30 |
| 3 | MA-F1550110030 | Bolt Price: $3.52 |
| 4 | 10040400 | LOCKWASHER Price: Call Us |
| 4 | 92-9762 | SCREW-HH Price: $8.11 |
| 5 | 3257-42 | KEY-WOODRUFF Price: $5.99 |
| 6 | 73220400 | SUB= 50675 Price: Call Us |
| 6 | 92-9754 | PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 6 | MA-A6010A01300 | PLUG Not Available Price: |
| 7 | 109238X | TUBE T Price: Call Us |
| 7 | 76-0840 | MANIFOLD Price: $790.28 |
| 8 | 144940 | SUB= 156417 Price: Call Us |
| 8 | 76-0940 | END COVER ASM Price: $431.83 |
| 8 | MA-08000000900 | BALL Not Available Price: |
| 9 | 109596X | HOSE CLAMP T Price: Call Us |
| 9 | 92-9763 | ROTOR SET Price: $877.55 |
| 9 | MA-67428-01700 | SPRING Not Available Price: |
| 10 | 76-0880 | COMMUTATOR ASM Price: $492.51 |
| 11 | 100-6131 | SEAL KIT This part replaces 94-8178. Price: $102.14 |
| 12 | MA-19641704000 | FORK,1-3 Not Available Price: |
| 13 | MA-19641705000 | FORK,2-R Not Available Price: |
| 15 | 147688 | FASTNER.SNAP-IN Price: Call Us |
| 15 | MA-19631715000 | ADAPTER A Not Available Price: |
| 16 | 153664 | SWITCH INTERLOCK Price: Call Us |
| 16 | MA-19631716000 | ADAPTER B Not Available Price: |
| 17 | MA-05500006025 | SPRING PIN Not Available Price: |
| 18 | MA-08340016050 | CAP-SEAL Not Available Price: |
| 19 | 10090400 | SUB= 10040400 Price: Call Us |
| 19 | MA-08340080100 | CAP,SEAL Not Available Price: |
| 20 | 73350400 | NUT Price: Call Us |
| 22 | 4152J | HEADLAMP BULB Price: Call Us |
| 22 | MA-19641707AG0 | LEVER,MAIN Not Available Price: |
| 23 | MA-06930014460 | GRIP Not Available Price: |
| 25 | 146147 | CABLE.BTRY.6GA.RD Price: Call Us |
| 26 | 108824X | FUSE HYT Price: Call Us |
| 26 | MA-10311725000 | BALL Not Available Price: |
| 27 | MA-10311715000 | PIN SPRING Not Available Price: |
| 28 | 4207J | CABLE T Price: Call Us |
| 28 | MA-19631754000 | BOSS Not Available Price: |
| 29 | 121305X | SWITCH SEAT Price: Call Us |
| 29 | MA-11931796000 | SPRING Not Available Price: |
| 30 | 144921 | SUB= 163088 Price: $10.69 |
| 30 | MA-07410005501 | RING, SNAP Not Available Price: |
| 31 | 140400 | SUB= 145774 Price: Call Us |
| 31 | MA-14152517000 | WASHER Not Available Price: |
| 32 | 141226 | COVER KEY SWITCH Price: Call Us |
| 32 | MA-10311727000 | Cover, Dust Price: $73.30 |
| 33 | 140401 | KEY MLD GEN DELTA Price: Call Us |
| 33 | MA-10311729000 | BOLT Not Available Price: |
| 34 | 110712X | SWITCH LT Price: Call Us |
| 34 | MA-A3010108002 | NUT Not Available Price: |
| 35 | 108236X | BRACKET LT Price: Call Us |
| 35 | MA-10311728000 | CLAMP Not Available Price: |
| 36 | 17021008 | SCREW Price: Call Us |
| 39 | 109553X | SWITCH INTERLOCKT Price: Call Us |
| 40 | 146057 | HARNESS.IGN.DASH. Price: Call Us |
| 41 | 71110408 | BOLT HXHD FIN Price: Call Us |
| 42 | 131563 | SUB= 154336 Price: Call Us |
| 43 | 145673 | SUB= 146154 Price: Call Us |
| 44 | 73640400 | NUT HXKEP 1/4X20 Price: Call Us |
| 48 | 140844 | ADAPTER AMMETER Price: Call Us |
| 49 | 153249 | WASHER PINNED Price: Call Us |
