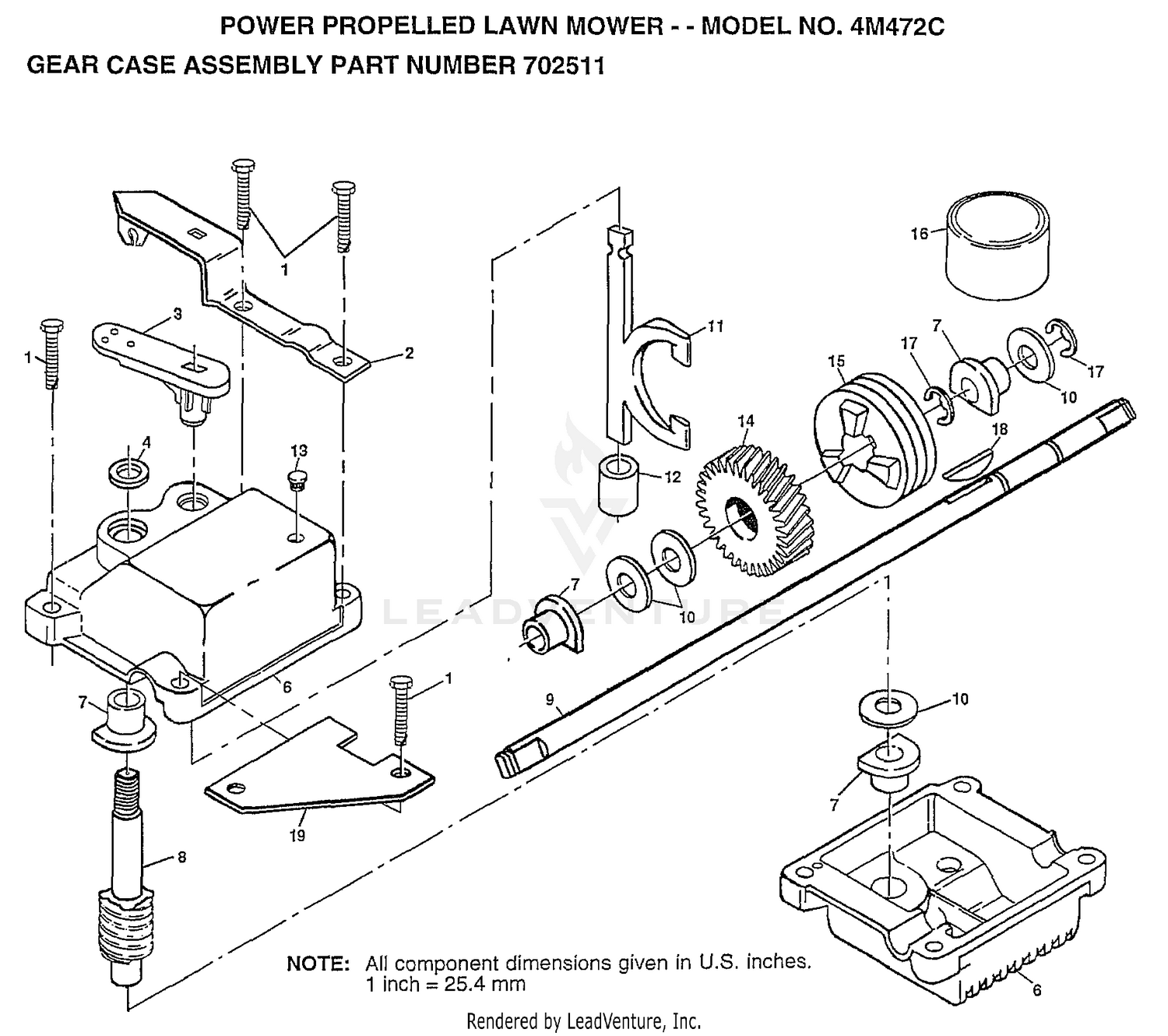

| Ref | Part Number | Description |
|---|
| 1 |
17490416 |
SCREW.1/4-20 Price: Call Us |
| 2 |
100-8148-03 |
MOUNT-RH Price: $332.38 |
| 2 |
100-8149-03 |
MOUNT-LH Price: $348.41 |
| 2 |
137055X004 |
BRACKET.GEARCASE Price: Call Us |
| 3 |
137053 |
SHIFTER Price: Call Us |
| 3 |
328-4 |
SCREW-HH Price: $4.82 |
| 4 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 4 |
57072 |
SEAL Price: Call Us |
| 5 |
104-8305-03 |
MOUNT-BASE Price: $99.32 |
| 6 |
104-0731 |
SHIM Price: $4.64 |
| 6 |
48373 |
KIT GEARCASE HALV Price: Call Us |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
77881 |
BEARING Price: Call Us |
| 8 |
137051 |
SHAFT.WORM Price: Call Us |
| 8 |
323-7 |
SCREW-HH Price: $0.65 |
| 9 |
104-8348 |
PLATE-RUBBER Price: $11.41 |
| 9 |
137074 |
SHAFT.DRIVE Price: Call Us |
| 10 |
104-8347-03 |
PLATE Price: $18.23 |
| 10 |
57079 |
THRUST WASHER Price: Call Us |
| 11 |
131484 |
CLUTCH YOKE Price: Call Us |
| 11 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 12 |
700343 |
BUSHING.GEAR BOX Price: Call Us |
| 12 |
92-2739 |
PIN-CLEVIS Price: $8.48 |
| 13 |
104-0705-03 |
YOKE-JOINT Price: $530.60 |
| 13 |
86447 |
PLUG PM Price: Call Us |
| 14 |
104-0720 |
SPACER Price: $35.75 |
| 14 |
137050 |
GEAR.HELICAL Price: Call Us |
| 15 |
104-0721 |
WASHER-THRUST Price: $4.00 |
| 15 |
750436X |
CLUTCH JAW Price: Call Us |
| 16 |
104-0719 |
WASHER-HARDENED Price: $9.34 |
| 16 |
750369 |
SUB= 6066J Price: Call Us |
| 17 |
12000003 |
RING T Price: Call Us |
| 17 |
32136-11 |
NUT-HEX, SLOT Price: $7.74 |
| 18 |
104-2281 |
SHAFT-PIVOT Price: $131.91 |
| 18 |
850848 |
HI PRO KEY Price: Call Us |
| 19 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 20 |
3272-25 |
PIN-COTTER Price: $0.89 |
| 21 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 22 |
108-1471 |
RH REAR ARM ASM This part replaces 105-2800. Price: $586.89 |
| 22 |
108-1473 |
LH REAR ARM ASM This part replaces 105-2801. Price: $586.89 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 25 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 26 |
69-9290 |
PAD-BUMPER Price: $9.52 |
| 27 |
105-4556-03 |
BRACKET-BUMPER Price: $39.25 |
| 28 |
325-8 |
SCREW-HH Price: $3.52 |
| 29 |
108-1475-03 |
BELL CRANK-RH This part replaces 100-5684-03. Price: $202.01 |
| 29 |
108-1476-03 |
BELL CRANK-LH This part replaces 100-5690-03. Price: $202.01 |
| 30 |
105-3249 |
DAMPER Price: $176.72 |
| 31 |
104-8331 |
END-ROD, SPHERICAL Price: $46.75 |
| 32 |
322-9 |
SCREW-HH Price: $3.09 |
| 33 |
105-2809 |
TUBE-LINK Price: $77.02 |
| 34 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 35 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 36 |
104-7521 |
BUSHING Price: $3.43 |
| 37 |
104-7520 |
SPRING-DAMPER Price: $49.77 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
3229-1 |
BOLT-CARR This part replaces 3229-25. Price: $3.39 |
| 40 |
105-4548 |
SHAFT-SPRING Price: $211.58 |
| 41 |
100-8138 |
SPRING-COMPRESSION Price: $48.65 |
| 42 |
105-4552 |
BEARING-PLASTIC Price: $25.10 |
| 43 |
105-4551 |
WASHER-FLAT Price: $3.35 |
| 44 |
145-8390 |
PLATE This part replaces 105-2807-03. Price: $13.74 |
| 45 |
105-4550 |
BUSHING-STRAIGHT Price: $8.87 |
| 46 |
3217-9 |
NUT-HH Price: $0.37 |
| 47 |
3220-7 |
NUT-JAM Price: $4.09 |
| 48 |
105-2806 |
END-ROD Price: $98.92 |
| 49 |
105-0756 |
SPACER Price: $21.53 |
| 50 |
105-2808 |
END-ROD Price: $88.58 |
| 51 |
3220-5 |
NUT-JAM Price: $0.65 |
| 52 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 53 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
