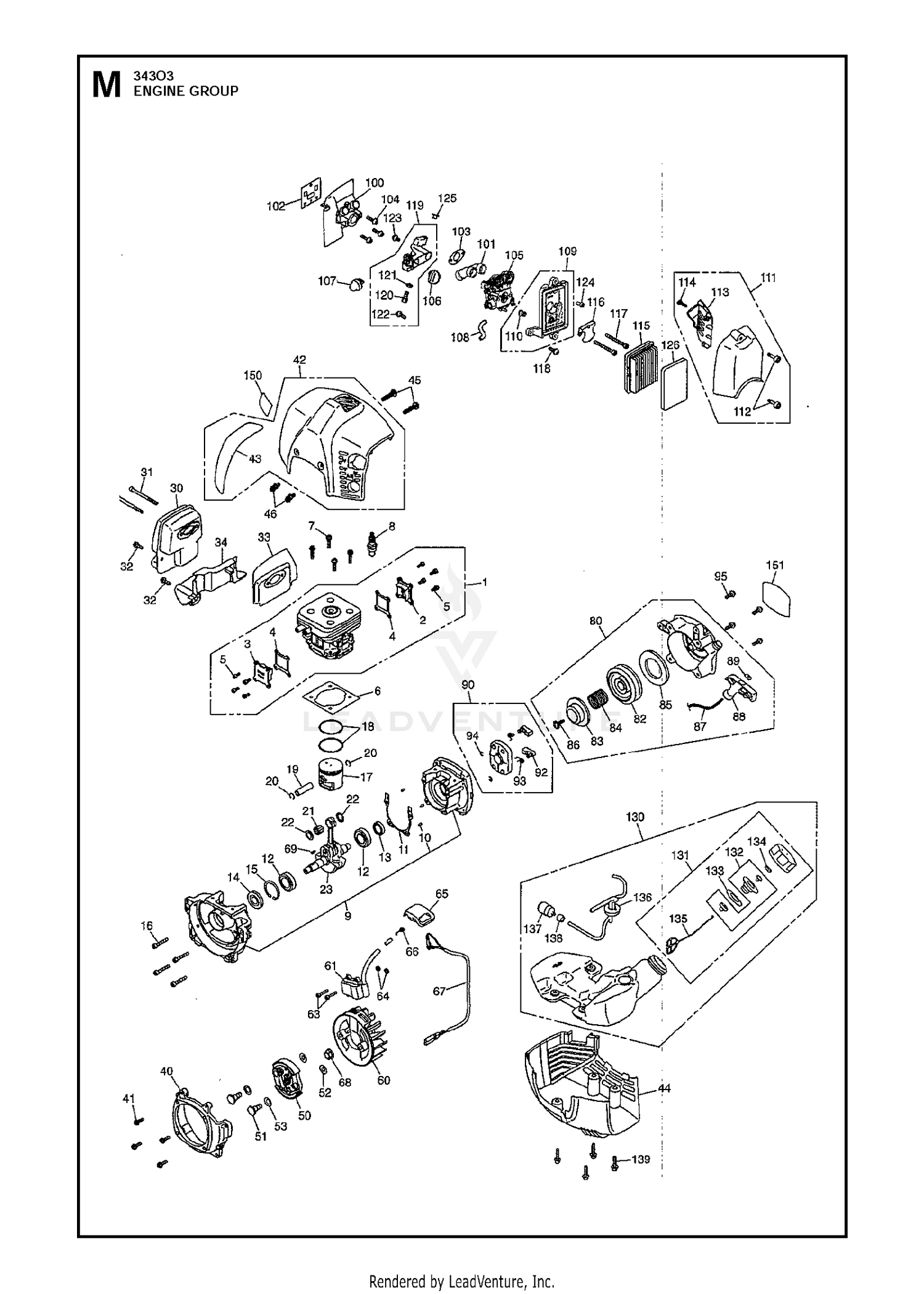

ENGINE 2
Parts (95)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 528695901 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 521621201 | COVER Price: $5.99 |
| 3 | 521621301 | COVER Price: $5.99 |
| 4 | 521634601 | GASKET, TR Price: $1.12 |
| 5 | 504119201 | BOLT Price: $1.99 |
| 6 | 521634301 | GASKET Price: $3.99 |
| 7 | 506745201 | BOLT This part replaces 544256601. Price: $4.99 |
| 8 | 506615101 | SPARK PLUG NGK CMR7H Price: $8.99 |
| 9 | 522650801 | NEEDS DESCRIPTION Price: Call Us |
| 10 | 505296101 | PIN Price: $2.99 |
| 11 | 512311101 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 521521101 | BEARING Price: $9.93 |
| 13 | 502849201 | SEALING Price: $8.99 |
| 14 | 513238701 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 502849301 | SNAP RING Price: $2.99 |
| 16 | 515388101 | BOLT This part replaces 544258801. Price: $2.99 |
| 17 | 528696201 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 513622201 | RING.PISTON Price: $5.99 |
| 19 | 510916901 | PISTON PIN This part replaces 513947801. Price: $6.99 |
| 20 | 502849801 | SNAP RING Price: $2.99 |
| 21 | 502849901 | BEARING Price: $9.99 |
| 22 | 513622401 | WASHER Price: $2.06 |
| 23 | 521636301 | CRANKSHAFT COMP Price: $75.74 |
| 30 | 521635301 | MUFFLER Price: $19.00 |
| 31 | 521517301 | BOLT Price: $2.99 |
| 32 | 506745601 | BOLT This part replaces 544263101. Price: $2.99 |
| 33 | 528778401 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 525431701 | Price: Call Us |
| 40 | 522650701 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 522654201 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 528772401 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 521636001 | TAPE Price: $6.99 |
| 45 | 521863601 | SCREW, TORX (RPLS T4970-52001) Price: $2.99 |
| 46 | 521515901 | BOLT (RPLS T495051010-11) Price: $2.99 |
| 50 | 521636401 | SHOE COMP Price: $49.99 |
| 51 | 505297801 | SCREW Price: $4.99 |
| 52 | 505298001 | WASHER Price: $2.99 |
| 53 | 522650601 | NEEDS DESCRIPTION Price: Call Us |
| 60 | 521647901 | ROTOR Price: $45.94 |
| 61 | 521648701 | Price: Call Us |
| 63 | 522654401 | BOLT TORX Price: $1.99 |
| 64 | 504118601 | SPACER Price: $2.99 |
| 65 | 521610001 | CAP Price: $5.99 |
| 66 | 505298901 | SPRING Price: $2.99 |
| 67 | 529253401 | NEEDS DESCRIPTION Price: Call Us |
| 68 | 513241901 | NUT This part replaces 544259901. Price: $3.99 |
| 69 | 506689401 | KEY This part replaces 544260001. Price: $2.99 |
| 70 | 506618201 | TUBE Price: $2.99 |
| 80 | 525432001 | Price: Call Us |
| 82 | 521648101 | REEL Price: $11.99 |
| 83 | 522651501 | NEEDS DESCRIPTION Price: Call Us |
| 84 | 521638001 | SPRING Price: $8.19 |
| 85 | 521637401 | SPRING, SPIRAL Price: $7.70 |
| 86 | 522654101 | NEEDS DESCRIPTION Price: Call Us |
| 87 | 521637701 | ROPE Price: $3.49 |
| 88 | 521617901 | KNOB Price: $9.99 |
| 90 | 521648001 | Price: Call Us |
| 92 | 522651101 | NEEDS DESCRIPTION Price: Call Us |
| 93 | 544262901 | SPRING Price: $1.99 |
| 94 | 513167701 | E-RING This part replaces 544263001. Price: $1.99 |
| 95 | 506745601 | BOLT This part replaces 544263101. Price: $2.99 |
| 100 | 521634801 | INSULATOR Price: $12.29 |
| 101 | 521641501 | PIPE Price: $9.93 |
| 102 | 521635001 | GASKET Price: $0.86 |
| 103 | 521635201 | GASKET Price: $1.99 |
| 104 | 505040401 | BOLT, TORX Price: $2.99 |
| 105 | 574184601 | NEEDS DESCRIPTION Price: Call Us |
| 106 | 521641701 | KNOB Price: $1.74 |
| 107 | 513789301 | PRIMARY BTN This part replaces 516972801. Price: $9.99 |
| 108 | 521523501 | TUBE Price: $2.22 |
| 109 | 521625401 | Price: $10.66 |
| 110 | 521625601 | GROMMET Price: $3.99 |
| 111 | 528706501 | Price: Call Us |
| 112 | 521515401 | SCREW Price: $0.78 |
| 115 | 521642101 | ELEMENT Price: $17.99 |
| 116 | 521834401 | PLATE Price: $2.99 |
| 117 | 504116501 | BOLT Price: $2.99 |
| 118 | 506745601 | BOLT This part replaces 544263101. Price: $2.99 |
| 119 | 521641201 | BRACKET ASSY Price: $4.96 |
| 120 | 505308201 | SCREW CABLE ADJUST Price: $29.99 |
| 121 | 510487401 | NUT Price: $2.99 |
| 122 | 505308301 | SCREW Price: $2.99 |
| 124 | 521515701 | BOLT M4 X 12 T27 Price: $2.99 |
| 126 | 521625701 | Price: Call Us |
| 130 | 528775801 | NEEDS DESCRIPTION Price: Call Us |
| 131 | 505309601 | CAP A Price: $9.99 |
| 132 | 515369401 | HOLDER-A This part replaces 544272401. Price: $5.99 |
| 133 | 506744301 | PACKING This part replaces 544272501. Price: $2.99 |
| 134 | 506746801 | FILTER This part replaces 544272601. Price: $3.99 |
| 135 | 506745801 | STOPPER This part replaces 544272701. Price: $2.99 |
| 136 | 511486901 | PIPE COMP Price: $10.30 |
| 137 | 591375401 | KIT FUEL FILTER This part replaces 544272901. Price: $8.99 |
| 138 | 505044501 | COLLER Price: $2.99 |
| 139 | 522654301 | NEEDS DESCRIPTION Price: Call Us |
| 140 | 510173401 | NEEDS DESCRIPTION Price: Call Us |
