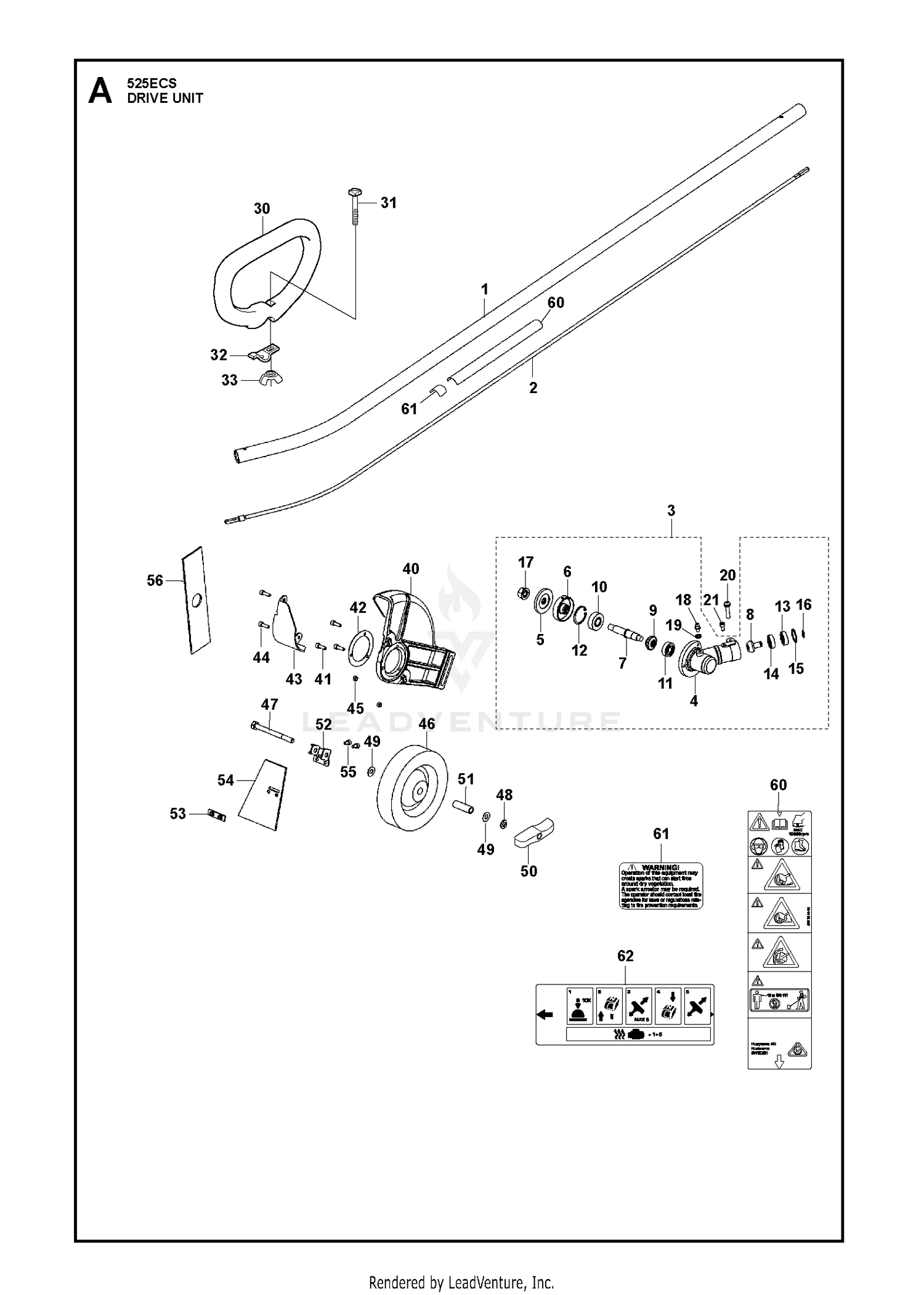

DRIVE
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 526058301 | PIPE COMP Price: $44.99 |
| 2 | 526058601 | FLEX SHAFT Price: $22.99 |
| 3 | 588221401 | GEARCASE ASSY Price: $84.99 |
| 4 | 512556001 | GEARCASE Price: $44.99 |
| 5 | 515537501 | HOLDER(B) Price: $6.99 |
| 7 | 588221301 | SHAFT GEAR Price: $32.99 |
| 8 | 512556101 | PINION Price: $37.99 |
| 9 | 515537301 | GEAR Price: $22.99 |
| 10 | 510569701 | BEARING*** Price: $7.99 |
| 11 | 515537001 | BEARING Price: $5.99 |
| 12 | 504121001 | RING Price: $2.99 |
| 13 | 505169301 | BEARING Price: $4.99 |
| 14 | 505169201 | BEARING Price: $5.99 |
| 15 | 505169401 | RP_RING Price: $2.99 |
| 16 | 521821801 | RING Price: $2.99 |
| 17 | 521804001 | NUT Price: $3.99 |
| 18 | 505171501 | FITTING Price: $4.99 |
| 19 | 505171601 | WASHER Price: $2.99 |
| 20 | 576590701 | BOLT Price: $2.99 |
| 21 | 529268101 | BOLT Price: $2.99 |
| 30 | 537076801 | HANDLE, LOOP Price: $12.99 |
| 31 | 503219835 | SCREW Price: $3.99 |
| 32 | 530038599 | CLAMP This part replaces 537042501. Price: $0.36 |
| 33 | 503222601 | WING NUT Price: $3.99 |
| 40 | 505171702 | Guards Price: $74.99 |
| 41 | 596876101 | Screws Price: $1.99 |
| 42 | 505171901 | PLATE Price: $5.99 |
| 43 | 505172003 | PROTECTIVE PLATE This part replaces 505172002. Price: $6.99 |
| 44 | 506745601 | BOLT Price: $2.99 |
| 45 | 505172301 | NUT Price: $2.99 |
| 46 | 505172501 | WHEEL Price: $14.99 |
| 47 | 526059601 | BOLT Price: $6.99 |
| 48 | 505172901 | WASHER Price: $2.99 |
| 49 | 505173001 | WASHER Price: $3.99 |
| 50 | 527068601 | NUT Price: $12.99 |
| 51 | 505173301 | SLEEVE Price: $9.99 |
| 52 | 526059501 | BRACKET Price: $5.99 |
| 53 | 505173601 | PLATE Price: $3.99 |
| 54 | 505173701 | RUBBER Price: $12.99 |
| 55 | 578473501 | SCREW Price: $2.99 |
| 56 | 531300233 | EDGER BLADE (IN CLAM) This part replaces 503848202. Price: $7.99 |
| 60 | 588184401 | DECAL Price: $1.99 |
| 61 | 522928602 | DECAL SPARK ARRESTOR WARNING Price: $2.99 |
| 62 | 579562301 | DECAL START REMINDER 523/525 Price: $2.99 |
