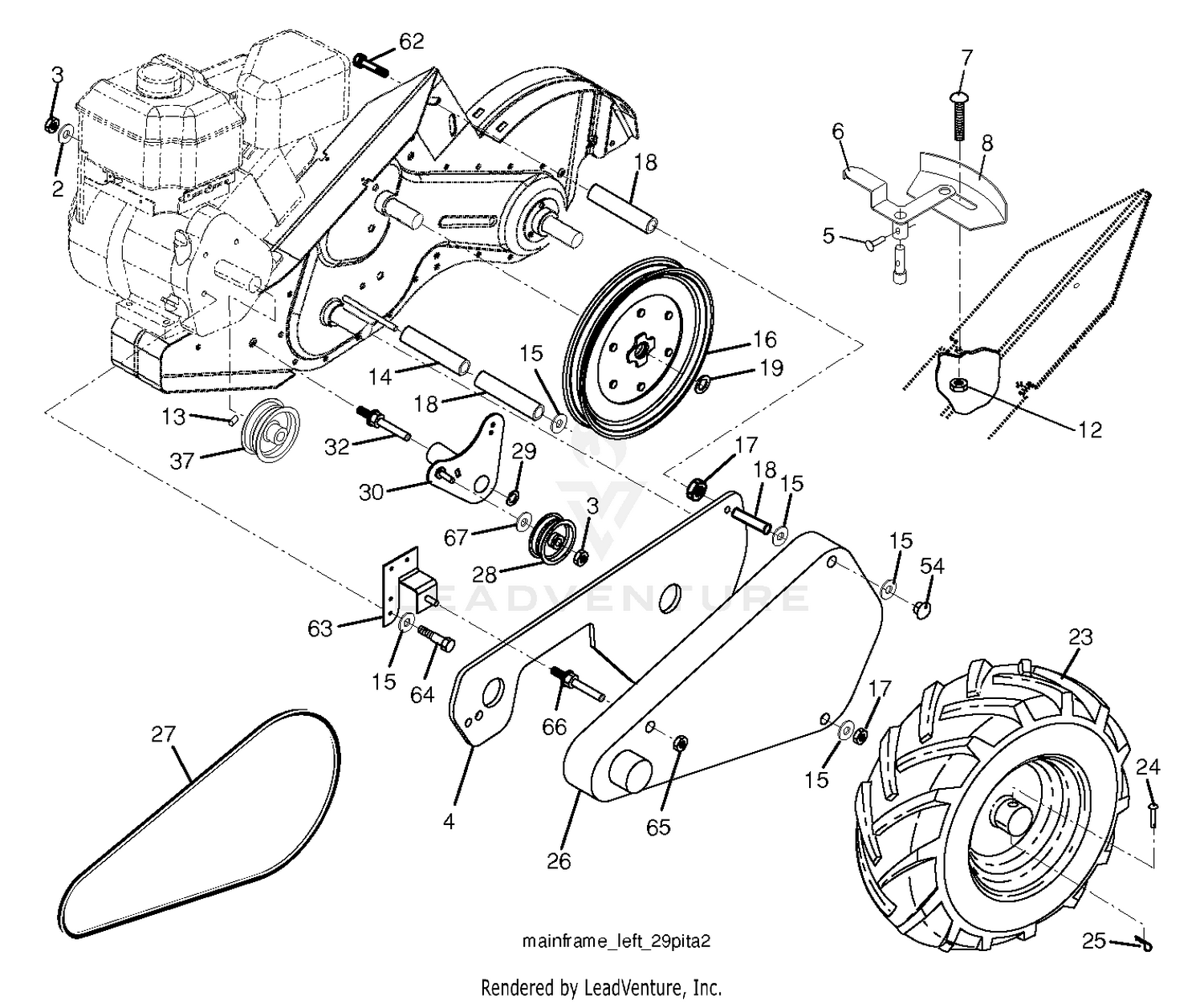

| Ref | Part Number | Description |
|---|
| 1 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 2 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 2 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 3 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 3 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 4 |
581850401 |
SHIELD Price: $54.99 |
| 5 |
532164329 |
PIN.SPIROL.FLARED Price: $3.99 |
| 5 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 6 |
532110111 |
LEVER ASM CRT Price: $11.99 |
| 7 |
872110404 |
BOLT Price: $7.99 |
| 8 |
532008700 |
PANEL.INDICATOR.SHIFT.BLACK This part replaces 581845001. Price: $3.99 |
| 9 |
98-7777 |
BOLT Price: $1.56 |
| 10 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 11 |
105-3748 |
GASKET-THERMOSTAT This part replaces 98-7776. Price: $4.31 |
| 12 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 12 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 13 |
823230506 |
SET SCREW Price: $2.99 |
| 13 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 14 |
532156117 |
SPACER-SPLIT.327 X .42 Price: $4.99 |
| 14 |
98-7692 |
BOLT Price: $0.92 |
| 15 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 15 |
98-9356 |
BOLT Price: $2.06 |
| 16 |
532145102 |
SHEAVE, TRANSMISSION Price: $59.99 |
| 17 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 18 |
532131691 |
SPACER SPLIT Price: $4.99 |
| 19 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 23 |
581576602 |
WHEEL.DR.LH.16X4X8.TILLER.SILV Price: $139.99 |
| 24 |
532004929 |
RIVET TI Price: $5.99 |
| 25 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 26 |
532442960 |
GUARD.BELT.TILLER.8HP.ORANGE Price: $59.99 |
| 27 |
532138399 |
BELT, DRIVE Price: $44.99 |
| 28 |
532104679 |
PULLEY-IDLER TI Price: $14.99 |
| 29 |
812000032 |
KLIP RING Price: $3.99 |
| 30 |
584289401 |
BRACKET.IDLER.ASM.SHORT Price: $12.99 |
| 32 |
532139401 |
SHAFT, IDLER ARM Price: $12.99 |
| 37 |
532429695 |
RPSHEAVE.3.50.TILLER.ZINC.SUBA Price: $14.99 |
| 54 |
532104214 |
NUT TI Price: $3.99 |
| 62 |
874930572 |
BOLT 5/16-18X4 1/2 Price: $2.99 |
| 63 |
584461201 |
BRACKET.ASM.GUARD.BELT.INTEK This part replaces 581850301. Price: $9.99 |
| 64 |
874770508 |
BOLT Price: $2.99 |
| 65 |
873510600 |
NUT Price: $4.99 |
| 66 |
581981302 |
GUIDE.BELT.REAR.TINE.TILLER.BL Price: $8.99 |
