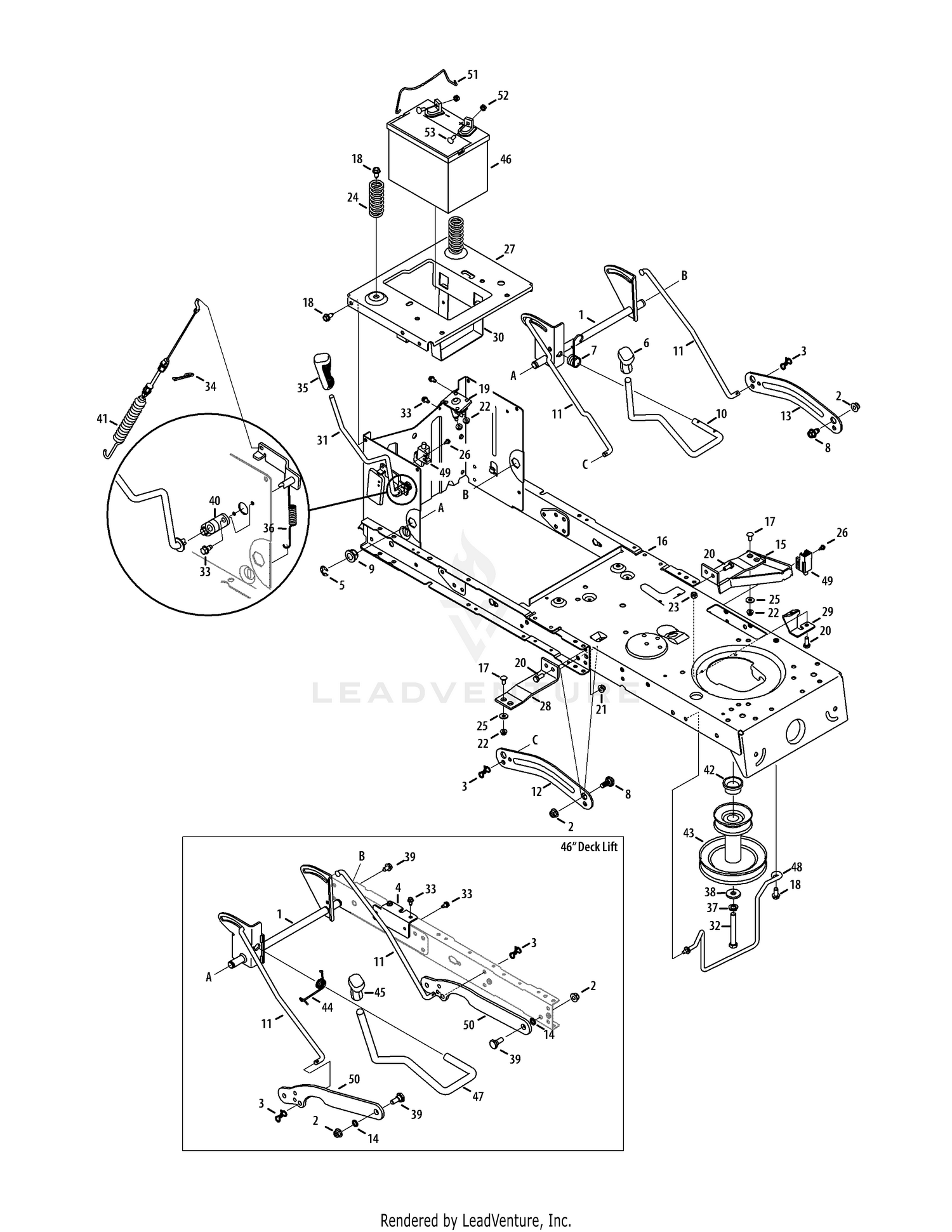

| Ref | Part Number | Description |
|---|
| 2 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 3 |
714-04040 |
Pin, Cotter, Bow Tie Price: $1.28 |
| 4 |
783-05389A-0637 |
Frame Brace Bracket Price: $7.18 |
| 5 |
716-0106A |
Ring, E-Type, .625 Dia. Price: $4.42 |
| 6 |
720-0311 |
Grip, Handle, 1/2 Price: $13.26 |
| 7 |
732-04225 |
Spring, Torsion Price: $10.75 |
| 8 |
738-04130A |
Shoulder Screw, .625 x .175, 3/8-16 This part replaces 738-04130. Price: $8.20 |
| 9 |
941-0225 |
Bearing, Hex Flange Price: $6.55 |
| 10 |
747-05296 |
Deck Handle, Lift Price: $23.28 |
| 11 |
747-04393 |
Rod, Lift Price: $20.87 |
| 12 |
783-04494C-0637 |
Lift Arm, Deck - RH Price: $19.05 |
| 13 |
783-04711C-0637 |
Lift Arm, Deck - LH Price: $21.52 |
| 14 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 15 |
683-04195-0637 |
Support Bracket Assembly Price: $37.53 |
| 16 |
683-04649B-0637 |
FRAME ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-04649-0637. Price: |
| 17 |
710-0134 |
Carriage Screw, 1/4-20 x .62 Price: $3.71 |
| 18 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 20 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 21 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 22 |
712-04064 |
Nut, Flange Lock, 1/4-20, GrF Price: $3.64 |
| 23 |
712-0429 |
Lock Nut, 5/16-18 This part replaces 912-0429. Price: $3.56 |
| 24 |
732-04035 |
Spring, Compr. , 1.28 OD x 3.125 Price: $9.61 |
| 25 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 26 |
738-04237A |
Shoulder Screw, #10-32 x .500 Price: $5.30 |
| 27 |
783-04548D |
Seat Bracket, Frame Price: $41.64 |
| 28 |
783-04637-0637 |
Bracket, Runing Board Price: $14.46 |
| 29 |
783-04753-0637 |
Frame Support Bracket Price: $69.83 |
| 30 |
783-04869A-0637 |
Bracket, Battery Price: $7.91 |
| 31 |
647-04096A-0637 |
Handle Assembly, PTO This part replaces 647-04096. Price: $36.03 |
| 32 |
710-04608 |
Screw, 7/16-20, 3.25 Price: $5.95 |
| 33 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 34 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 35 |
720-04049A |
Grip, Handle, 3/8 Price: $14.09 |
| 36 |
732-04276A |
Spring, Extension Price: $8.55 |
| 37 |
936-0171 |
Washer, Lock, 7/16 Price: $3.86 |
| 38 |
736-0322 |
Washer, Flat, .450 x 1.250 x .164 Price: $8.42 |
| 39 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 40 |
741-04119A |
Bearing, PTO Price: $4.56 |
| 41 |
946-04173E |
Deck Engage Cable This part replaces 946-04173C. Price: $55.45 |
| 42 |
750-0956 |
Spacer, 1.010 x 1.400 x .825 Price: $17.79 |
| 43 |
956-04067B |
ENGINE PULLEY (3.56 x 6.12 DIA) This part replaces 956-04067A. Price: $76.13 |
| 44 |
732-04438 |
Spring, Torsion 46" Deck Price: $9.09 |
| 45 |
720-0298 |
Grip, Handle, 5/8 Price: $37.92 |
| 46 |
925-1707D |
BATTERY Not Available Price: |
| 49 |
725-04363 |
Switch, Interlock Price: $13.25 |
| 50 |
783-0678C |
Deck Lift Link Price: $21.13 |
| 51 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 52 |
712-0271 |
Nut, Sems, 1/4-20 Price: $3.78 |
