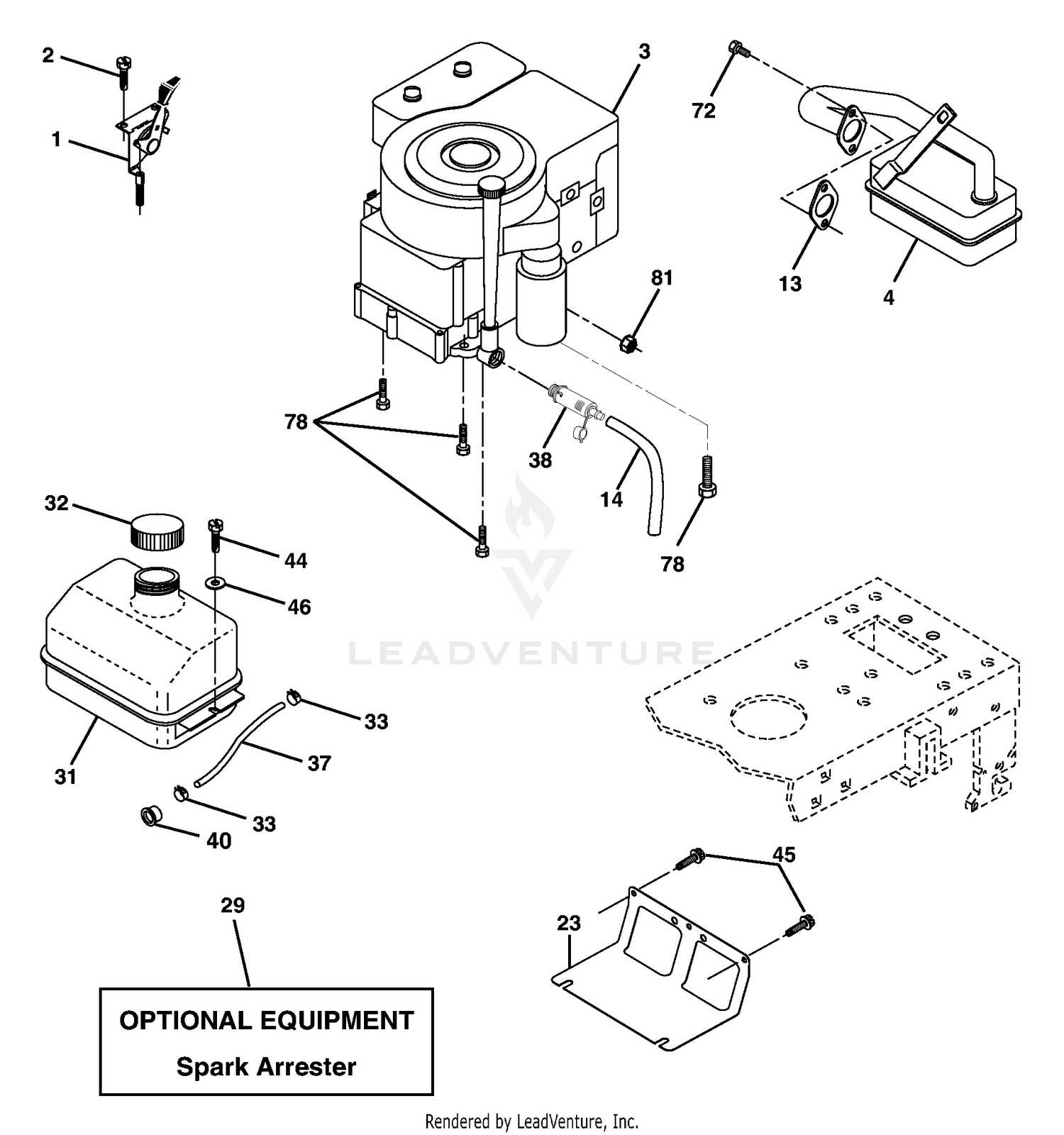

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control Throttle/Choke Flag Price: Call Us |
| 1 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 2 |
105-7822 |
DECAL-CAUTION Price: $13.82 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 3 |
21-2660-01 |
PLATE-SIDE Price: $299.86 |
| 4 |
137352 |
Muffler Exhaust B&S Price: Call Us |
| 5 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 7 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 9 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 13 |
165291 |
Gasket Eng 1 313 Id Tin Plated Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
32103-2 |
NUT-WING Price: $0.68 |
| 15 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 20 |
2412-39 |
CLAMP-R Price: $1.70 |
| 22 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 24 |
38-4550-03 |
COVER-INSTRUMENTS Price: $448.71 |
| 26 |
105-2564 |
BATTERY COVER ASM Price: $78.84 |
| 27 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 28 |
52-1321 |
DECAL-FUEL, DIESEL Price: $9.16 |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 29 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 31 |
184900 |
Tank Fuel Front Price: Call Us |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 32 |
140527 |
Cap Asm Fuel Price: Call Us |
| 32 |
93-3183 |
TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 |
123487X |
Clamp Hose Price: Call Us |
| 33 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 34 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 36 |
72-3560 |
DECAL Price: $12.52 |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 37 |
68-8610-01 |
EXTENSION-FENDER Price: $186.20 |
| 38 |
181654 |
Plug Drain Oil Price: Call Us |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 39 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 40 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 41 |
88-0070-01 |
PLATE-FLOOR Price: $169.68 |
| 44 |
17670412 |
Screw Thdrol 1/4-20 x 3/4 Price: Call Us |
| 44 |
93-3185 |
COVER ASM Price: $144.25 |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 47 |
98-3879 |
DISCONTINUED Price: Call Us |
| 72 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
