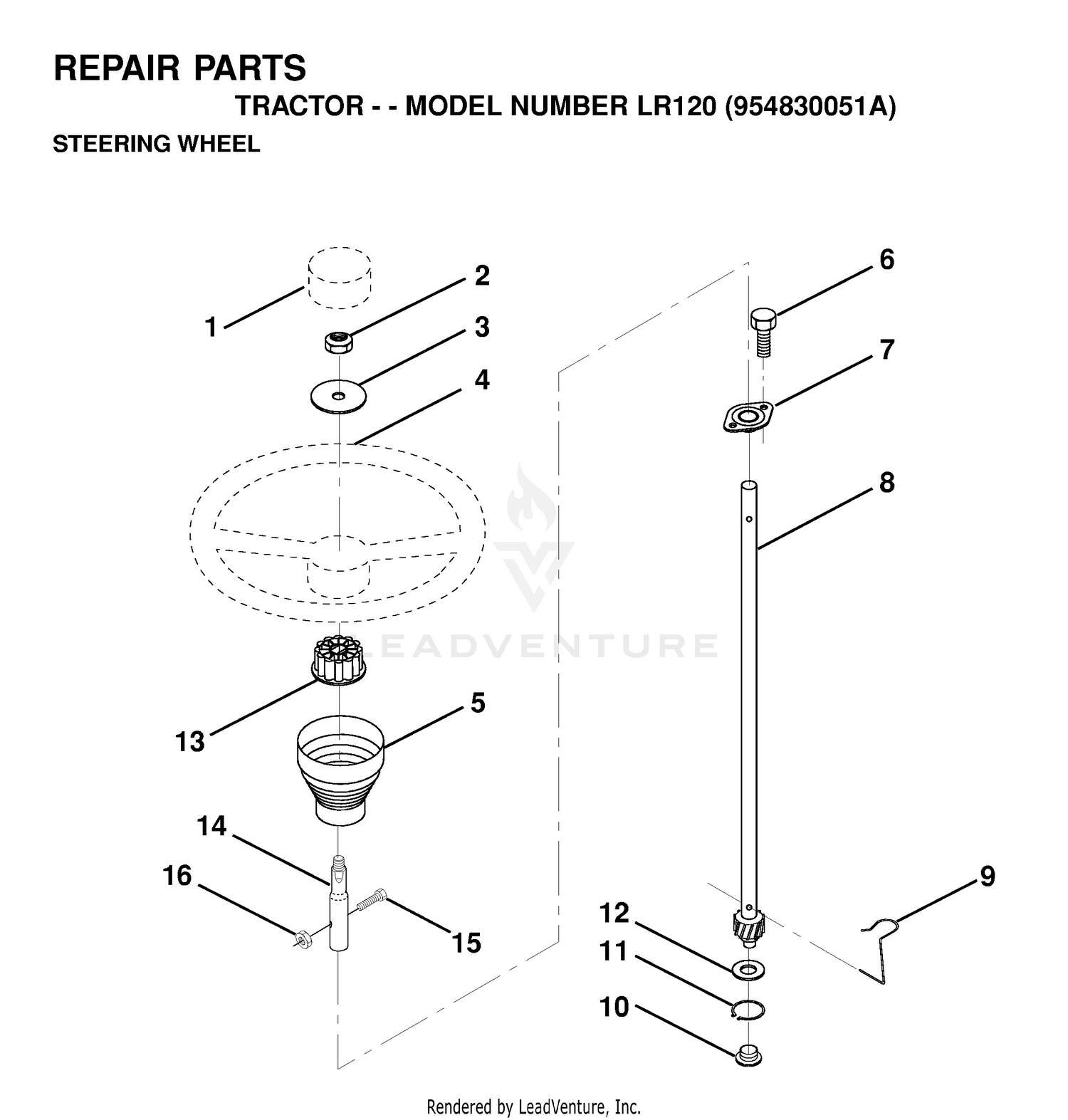

| Ref | Part Number | Description |
|---|
| 1 |
253-144 |
SEAL-GREASE Price: $20.77 |
| 1 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 2 |
254-103 |
CONE-BEARING, INNER Price: $38.71 |
| 2 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 3 |
254-104 |
CUP-BEARING, INNER Price: $17.18 |
| 3 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 4 |
115-4944 |
WHEEL HUB ASM This part replaces 77-0650. Price: $281.80 |
| 4 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 5 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 5 |
532127396 |
STEERING SLEEVE Price: $2.66 |
| 6 |
56-7960 |
TIRE (11-15) 8-PLY Price: $201.63 |
| 6 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 7 |
217-109 |
WHEEL Price: $694.71 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 8 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 8 |
532148966 |
KIT.SERVICE.SHAFT.STEERING.LR This part replaces 532147391. Price: $119.99 |
| 9 |
3272-19 |
PIN-COTTER Price: $0.31 |
| 9 |
532124210 |
STEERING CLIP Price: $4.99 |
| 10 |
217-111 |
CAP-HUB Price: $22.31 |
| 10 |
532123438 |
BUSHING STEER LWR Price: $5.99 |
| 11 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 12 |
47-2540 |
WASHER-FLAT Price: $4.14 |
| 12 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 13 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 13 |
532104820 |
ADAPTER-WHEEL LT Price: $13.99 |
| 14 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 14 |
532154307 |
KIT.EXTENSION.STEERING.PLM/LR This part replaces 532147392. Price: $34.99 |
| 15 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
