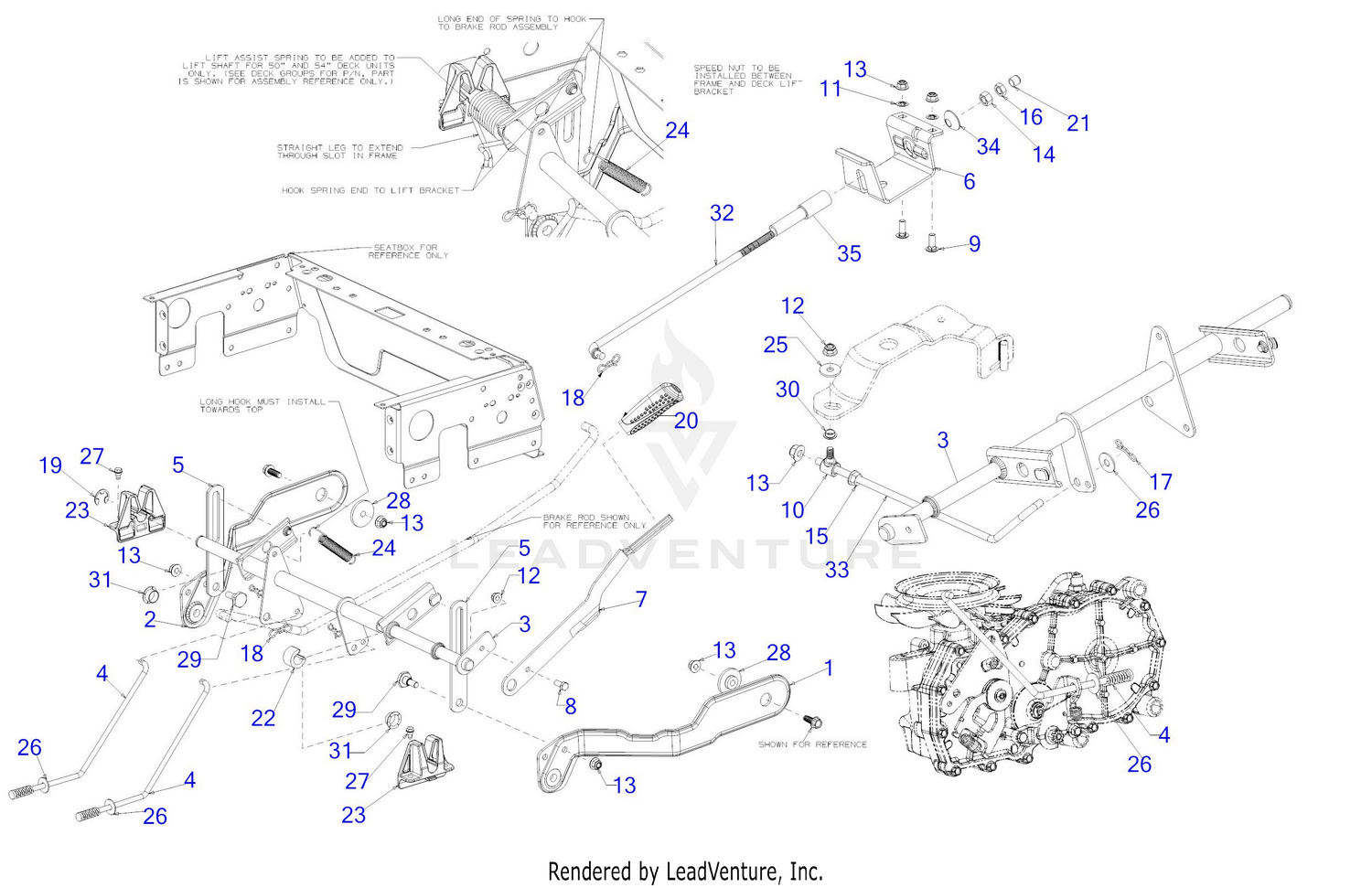

| Ref | Part Number | Description |
|---|
| 1 |
603-05107B-0637 |
DECK LIFT PLATE ASSEMBLY (RH) (POWDER BLACK) Price: $83.99 |
| 2 |
603-05108B-0637 |
DECK LIFT PLATE ASSEMBLY (LH) (POWDER BLACK) Price: $83.99 |
| 3 |
736-04624 |
FLAT WASHER .75 x 1.13 x .10 Price: $3.66 |
| 3 |
903-05137 |
DECK LIFT SHAFT Not Available Price: |
| 4 |
647-04267 |
BRAKE ROD ASSEMBLY W/SPRING Price: $27.01 |
| 7 |
703Z09621A |
DECK LIFT HANDLE Price: $12.96 |
| 8 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 9 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 10 |
711-06659A |
FERRULE 3/8 x 0.375 This part replaces 711-06659. Price: $8.71 |
| 11 |
712-0229 |
PUSH NUT Price: $3.14 |
| 12 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 13 |
712-04065 |
NUT Price: $3.68 |
| 14 |
712-05046 |
HEX NUT NYLOK 1/2-13 Price: $3.74 |
| 15 |
712-3005 |
Flange Lock Nut 3/8-16 This part replaces 912-3005. Price: $5.99 |
| 16 |
712-3048 |
Nut, Hex Jam, 1/2-13 GR5 This part replaces 912-3048. Price: $4.08 |
| 17 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 18 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 19 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 20 |
720-04139B |
GRIP Price: $16.45 |
| 21 |
726-05009 |
LIFT ROD END CAP Price: $3.70 |
| 22 |
731-05297 |
SPACER: .76ID x .75 Price: $8.47 |
| 23 |
731-08782 |
DECK LIFT BRACKET Price: $7.71 |
| 24 |
732-04587 |
EXTENSION SPRING .63 x 4.95 Price: $6.51 |
| 25 |
736-04117 |
FLAT WASHER 1.0 OD:.331 ID Price: $2.85 |
| 26 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 27 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 28 |
738-05029 |
SHOULDER SPACER -S Price: $8.34 |
| 29 |
738-0507B |
Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86 |
| 30 |
741-05170 |
FLANGE BEARING Price: $5.52 |
| 31 |
741-3084 |
FLANGE BEARING .75 x 1.125 x .375 Price: $4.55 |
| 32 |
747-05552C |
DECK FRONT LIFT ROD Price: $28.06 |
| 33 |
747-06775 |
BRAKE DISENGAGEMENT ROD Price: $12.27 |
| 34 |
748-04069A |
DECK LIFT PIVOT CUP Price: $4.93 |
