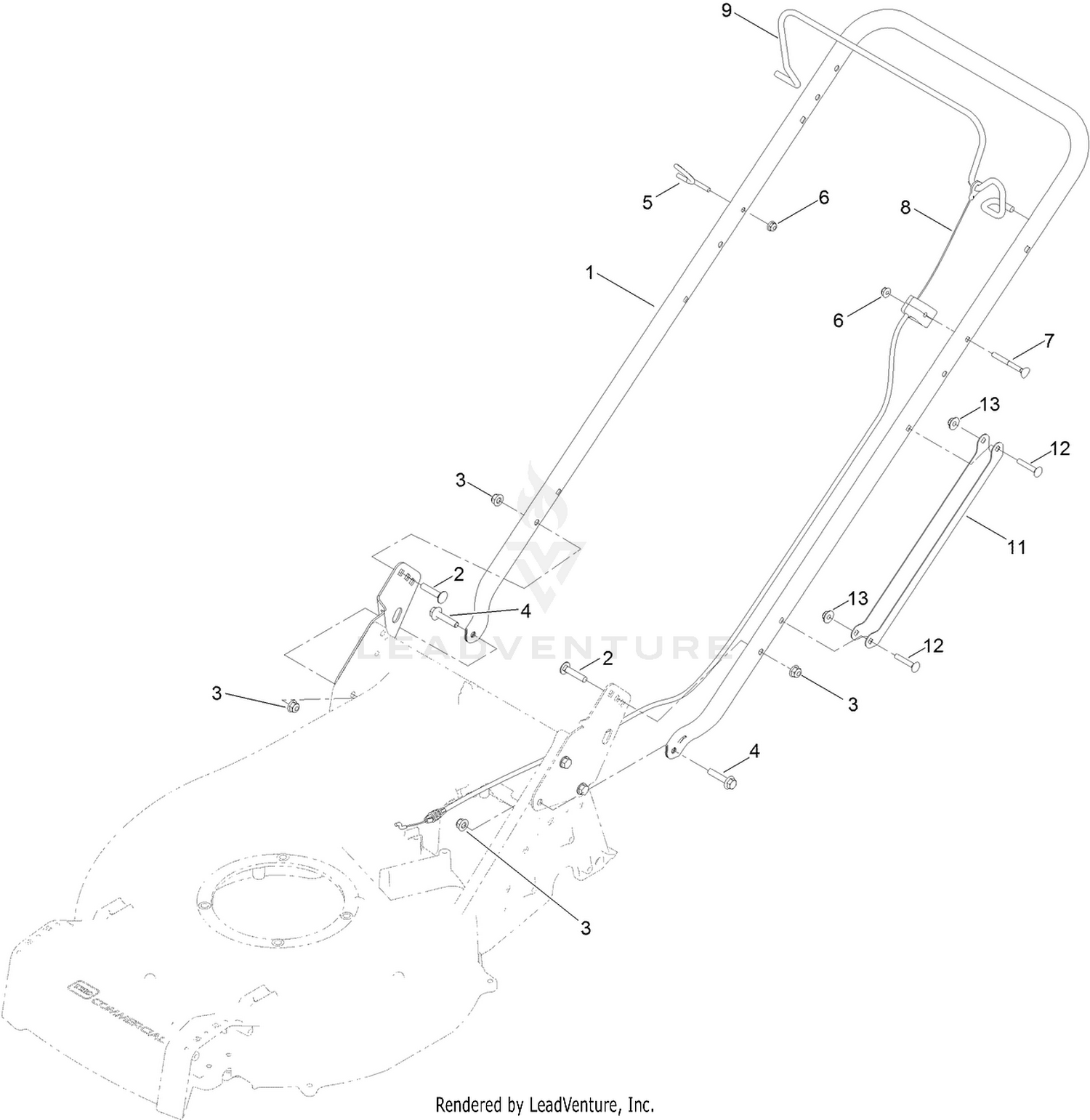

Handle and Brake Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-4817-03 | HANDLE Price: $106.99 |
| 2 | 3230-4 | BOLT-CARR Price: $0.47 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 115-1794 | SCREW-HHF Price: $1.73 |
| 5 | 114-2775 | GUIDE-ROPE Price: $9.99 |
| 6 | 104-7201 | NUT-HF Price: $0.69 |
| 7 | 92-2270 | SCREW-HANDLE Price: $7.89 |
| 8 | 130-9731 | CABLE-BRAKE Price: $36.99 |
| 9 | 125-8436-03 | BAIL-BRAKE Price: $25.99 |
| 11 | 127-6897-03 | GUARD-CABLE, HANDLE Price: $8.99 |
| 12 | 108-0988 | SCREW-CARR Price: $0.79 |
