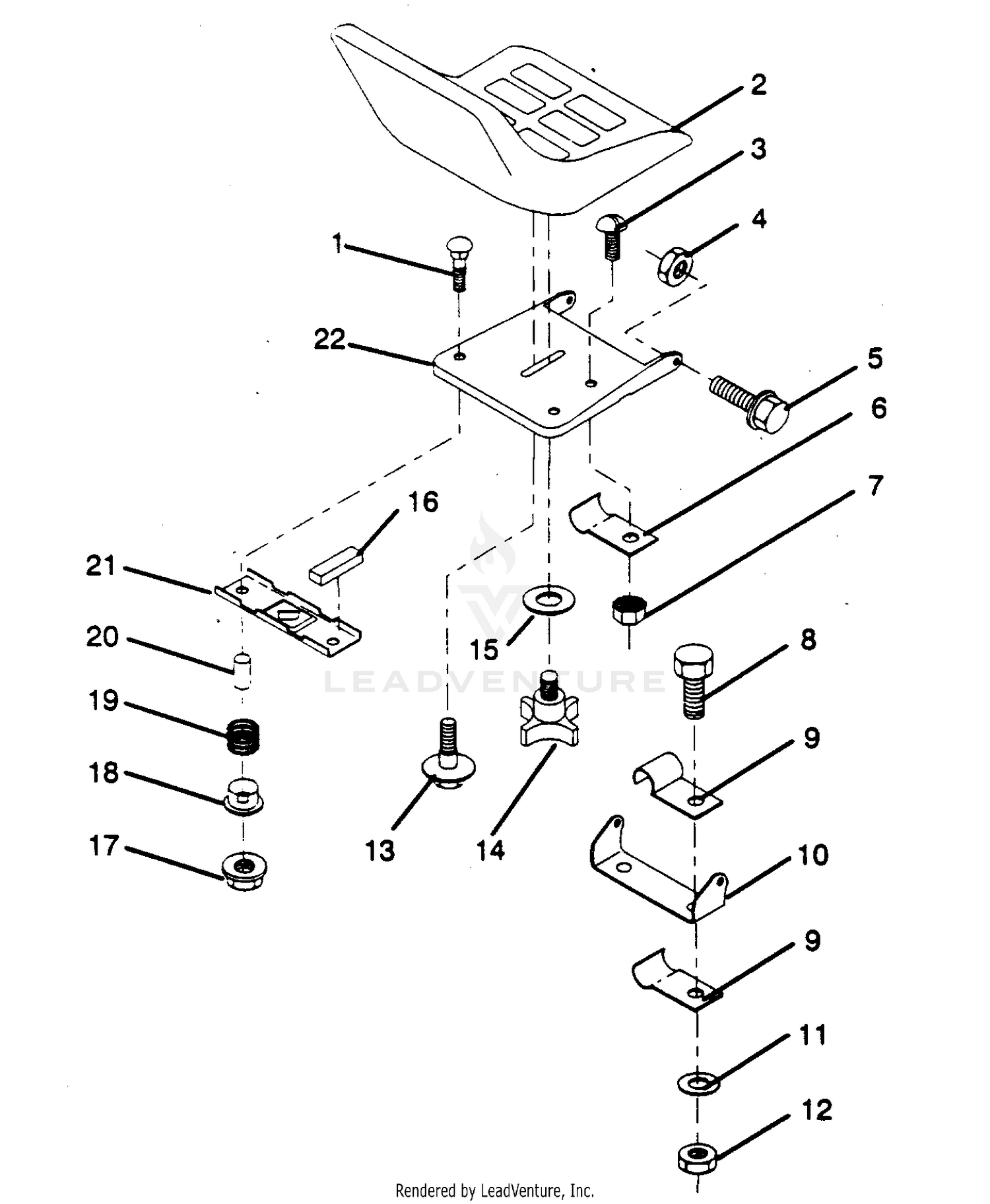

| Ref | Part Number | Description |
|---|
| 1 |
872170410 |
Bolt, Carriage 1/4-20 x 1-1/4 Price: $2.99 |
| 1 |
98-3948-03 |
MOUNT-CYLINDER Price: $167.43 |
| 2 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 2 |
532127423 |
Seat Price: $209.18 |
| 3 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 Price: $2.99 |
| 3 |
98-3932 |
DISCONTINUED Price: Call Us |
| 4 |
325-5 |
SCREW-HH Price: $1.20 |
| 4 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 5 |
532139888 |
Bolt Shoulder 5/16-18 Type T.T.T.R. This part replaces 532105529. Price: $2.99 |
| 5 |
99-6966-03 |
STOP-AXLE Price: $30.05 |
| 6 |
532124967 |
Clip, Insulated This part replaces 532004171. Price: $5.46 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 7 |
873161000 |
This part replaces 873951000. Price: $1.99 |
| 8 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 9 |
3220-6 |
NUT-JAM Price: $1.25 |
| 9 |
532126471 |
Clip, Insulated Price: $2.99 |
| 10 |
532126656 |
Bracket, Pivot, Seat Price: $5.46 |
| 10 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 11 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 11 |
734117201 |
WASHER This part replaces 819131210. Price: $1.99 |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 12 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 13 |
110-4800 |
DISCONTINUED Price: Call Us |
| 13 |
532127018 |
Bolt, Shoulder Price: $3.99 |
| 14 |
532166369 |
Knob Seat Adj. Wingnut This part replaces 532120068. Price: $4.99 |
| 14 |
98-8198-03 |
PLATE-BRACKET, CYLINDER Price: $59.09 |
| 15 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: $3.99 |
| 15 |
93-5268 |
NUT-LUG Price: $2.20 |
| 16 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 16 |
532121251 |
Strip, Foam Price: $5.46 |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 18 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
532121248 |
Bushing, Snap Price: $3.99 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 19 |
532121250 |
Spring, Compression Price: $3.99 |
| 20 |
532121249 |
Spacer, Split 28 ld. x .88 Large Price: $3.99 |
| 21 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
