Home / OPE / Riders / STCII-61V-36BV Tiger Cat II (S/N X5300001 to X5399999) Part No. 06407 / CUTTER DECK CONTROLS

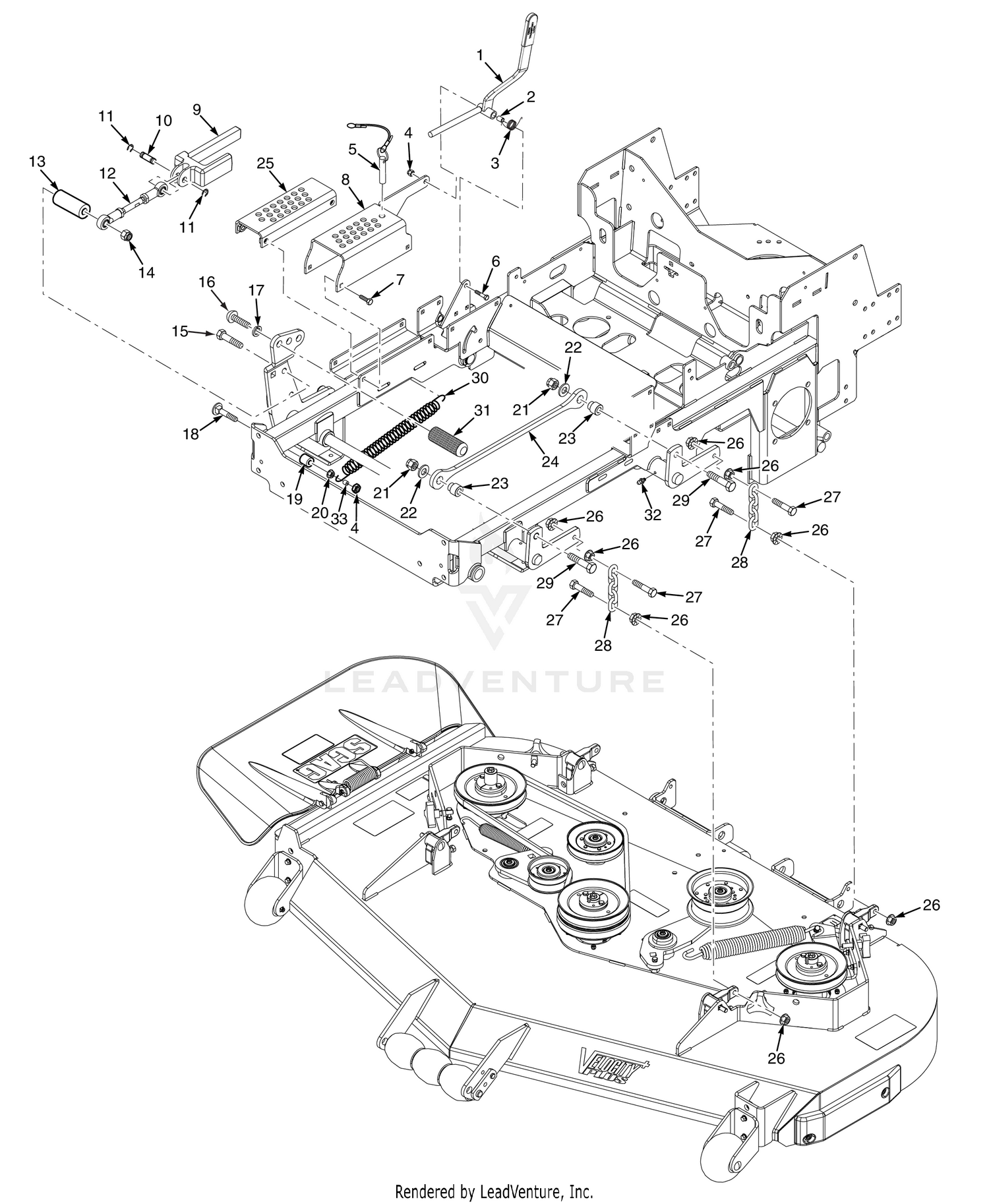

CUTTER DECK CONTROLS

CUTTER DECK CONTROLS

Parts (32)

RefPart NumberDescription
2 43874 Spacer, Deck Latch Price: Call Us
3 485704 Spring, Torsion - Lever Return Price: Call Us
4 04021-05 Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us
5 483345 Lanyard, Deck Height Pin Assembly Price: Call Us
6 04001-31 Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us
7 04006-02 Bolt, Hex Wshr Head 5/16-18 x 1-1/4" Price: Call Us
8 425737-G Adjustment Bracket, Cutting Height (Scag Gold) Price: Call Us
10 43487 Pin, Deck Lift Price: Call Us
11 04050-18 Retaining Ring, 1/2" Ext. "E" Price: Call Us
12 482534 Linkage Assembly, Deck Lift Price: Call Us
13 43873 Spacer, Deck Lift Pedal Price: Call Us
14 04021-07 HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us
15 04001-87 Bolt, Hex Head 1/2-13 x 4" (lower) Price: Call Us
16 04108-04 Capscrew, 5/8-11 x 1-1/2" Price: Call Us
17 04030-07 Lockwasher, 5/8" Spring Price: Call Us
18 04003-21 Carriage Bolt, 3/8-16 x 2-1/2" Price: Call Us
19 43572 Yoke, Front Caster Wheel Price: Call Us
20 04019-04 NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us
21 04021-07 HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us
22 04040-13 Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us
23 431018 Pivot, Deck Link Price: Call Us
24 428513 Link, Decklift (black) Price: Call Us
25 452408 Adjustment Bracket, Lower Cut Height Price: Call Us
26 04019-04 NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us
27 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us
28 482628 Chain, Deck Lift Price: Call Us
29 04001-153 Bolt, Hex Head 1/2-13 x 2-1/4" Price: Call Us
30 483177 Spring, Decklift Price: Call Us
31 424504 Foot Pedal, Height Adjustment Price: Call Us
32 48114-04 GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us
33 43212 Spacer, Deck Assist Price: Call Us
485592 Grip, Deck Latch Price: Call Us 485592
