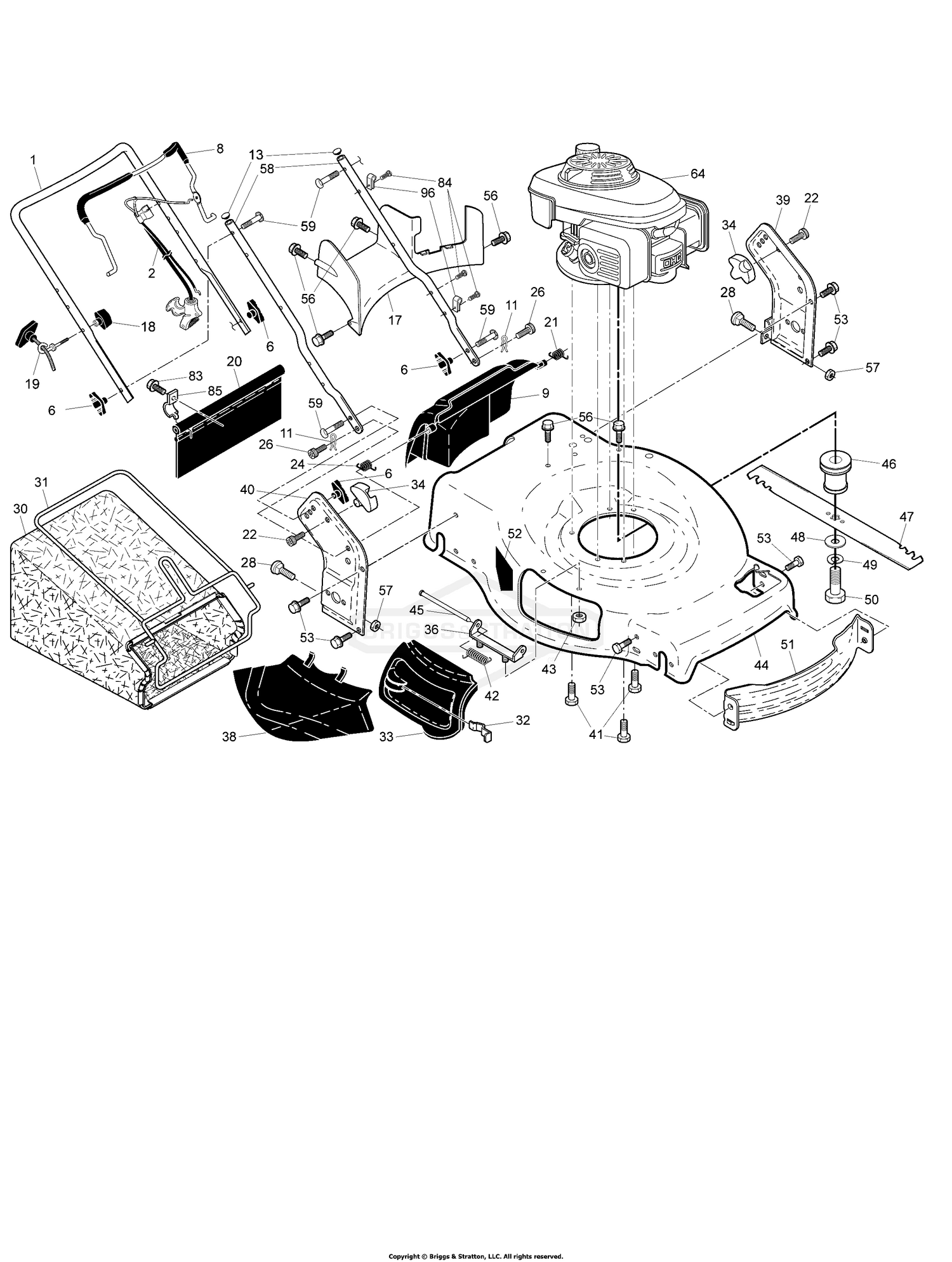

| Ref | Part Number | Description |
|---|
| 1 |
84003970 |
HANDLE, Upper Price: $124.99 |
| 2 |
84003971 |
CABLE, Engine Zone Control Price: $62.37 |
| 6 |
84004291 |
KNOB, Handle, Standard Price: $8.79 |
| 8 |
84003972 |
BAR, Control Price: $52.99 |
| 9 |
84003973 |
ASSEMBLY, Rear Door Price: $77.99 |
| 11 |
707772 |
PIN Price: $8.44 |
| 13 |
707666 |
PLUG, Handle Price: $5.93 |
| 17 |
707667 |
BAFFLE, Rear Price: $33.90 |
| 18 |
707668 |
KNOB Price: $4.16 |
| 19 |
707669 |
GUIDE, Rope Price: $6.41 |
| 20 |
84003974 |
SKIRT, Rear Price: $47.49 |
| 21 |
709341 |
Spring, Rear Door, LH, Black Price: $6.57 |
| 22 |
709080 |
Screw, Panhead, Torx #20 Price: $5.63 |
| 24 |
709340 |
Spring, Rear Door, RH, Grey Price: $5.98 |
| 26 |
84004302 |
SCREW, Door/Handle Pivot Price: $6.19 |
| 28 |
707675 |
BOLT, Carriage, 5/16-18 x 5/8 Price: $4.59 |
| 30 |
84003976 |
GRASSBAG Price: Call Us |
| 31 |
707677 |
FRAME, Grass Bag Price: $161.64 |
| 32 |
709337 |
Latch, Mulcher Door Price: $9.52 |
| 33 |
84003977 |
DOOR, Mulcher Price: $47.69 |
| 34 |
84004304 |
BRACKET, Pivot Price: $6.19 |
| 36 |
709183 |
Hinge Bracket Assembly Price: $11.84 |
| 38 |
709336 |
Discharge Deflector Price: $35.15 |
| 39 |
707679 |
BRACKET, Handle, Left Price: $39.61 |
| 40 |
707767 |
BRACKET, Handle, Right Price: $51.99 |
| 41 |
84004301 |
SCREW, 3/8 Hex HD Thread Rolled Price: $14.11 |
| 42 |
709257 |
Spring, Torsion Price: $9.86 |
| 43 |
709237 |
Nut, Hex, Flanged 1/4-20 Price: $6.02 |
| 44 |
84003979 |
KIT, Lawn Mower Housing Price: $339.99 |
| 45 |
707178 |
HOSE-FUEL Price: $45.57 |
| 46 |
84003983 |
ADAPTER / PULLEY, Blade Price: $41.11 |
| 47 |
709343 |
BLADE, 22 Price: $34.53 |
| 48 |
709448 |
WASHER, Hardened Price: $8.65 |
| 50 |
709449 |
Screw, Machine, Hex Head, 3/8-24 x 1-3/8, Grade 8 Price: $8.65 |
| 51 |
707687 |
BAFFLE This part replaces 709371. Price: $37.49 |
| 52 |
7013010SM |
DECAL-DANGER, CUT FIN Price: $8.48 |
| 53 |
705320 |
SCREW 5/16-18 Price: $9.42 |
| 56 |
709159 |
Screw, Hex Washer Head, #13 x 3/4 Price: $7.11 |
| 57 |
709105 |
Nut, Hex 3/8-16 Price: $6.02 |
| 58 |
707691 |
HANDLE, Lower Price: $54.99 |
| 59 |
709234 |
Bolt, Carriage 1/4-20 x 1-1/2 Price: $6.57 |
| 83 |
709835 |
SCREW Price: $5.32 |
| 84 |
707694 |
FASTENER, Push Price: $8.09 |
| 85 |
707695 |
BRACKET-MOUNTING Price: $8.38 |
| 96 |
709289 |
Clip, Cable Price: $6.31 |
