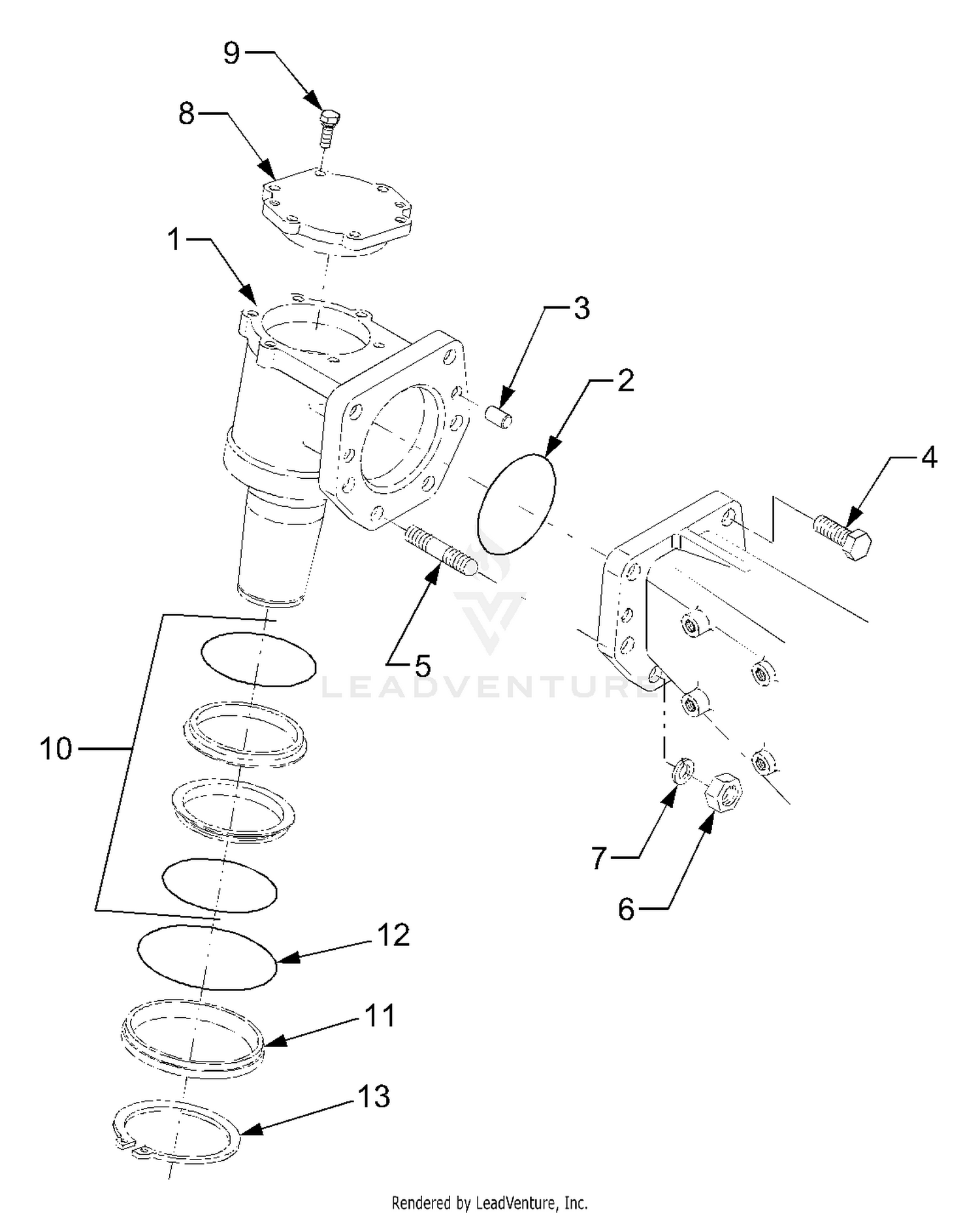

Bevel Gear Case Group
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DD-T4682-43311 | CASE-BEVEL GEAR Not Available Price: |
| 2 | DD-04811-50900 | O-RING Not Available Price: |
| 3 | DD-37805-43501 | DOWEL PIN Not Available Price: |
| 4 | DD-01173-51440 | HEX BOLT Not Available Price: |
| 5 | DD-01517-51440 | STUD Not Available Price: |
| 6 | DD-02176-50140 | HEX NUT Not Available Price: |
| 7 | DD-04512-50140 | LOCK WASHER Not Available Price: |
| 8 | DD-T4620-43321 | COVER-GEAR CASE Not Available Price: |
| 9 | DD-01123-50825 | HEX BOLT Not Available Price: |
| 10 | DD-T4260-43494 | SEAL ASSEMBLY-FLOATING Not Available Price: |
| 11 | DD-T4620-43462 | HOUSING-SEAL Not Available Price: |
| 12 | DD-04811-11150 | O-RING Not Available Price: |
| 503200220 | 503200220 | SCREW Price: $2.99 |
| 503200316 | 503200316 | SCREW Price: $3.99 |
| 537217104 | 574532601 | BLADE GUARD This part replaces 537217104. Price: $24.99 |
| 537256401 | 537256401 | ADAPTER Price: $44.99 |
| 537256601 | 537256601 | LOOP Price: $24.99 |
