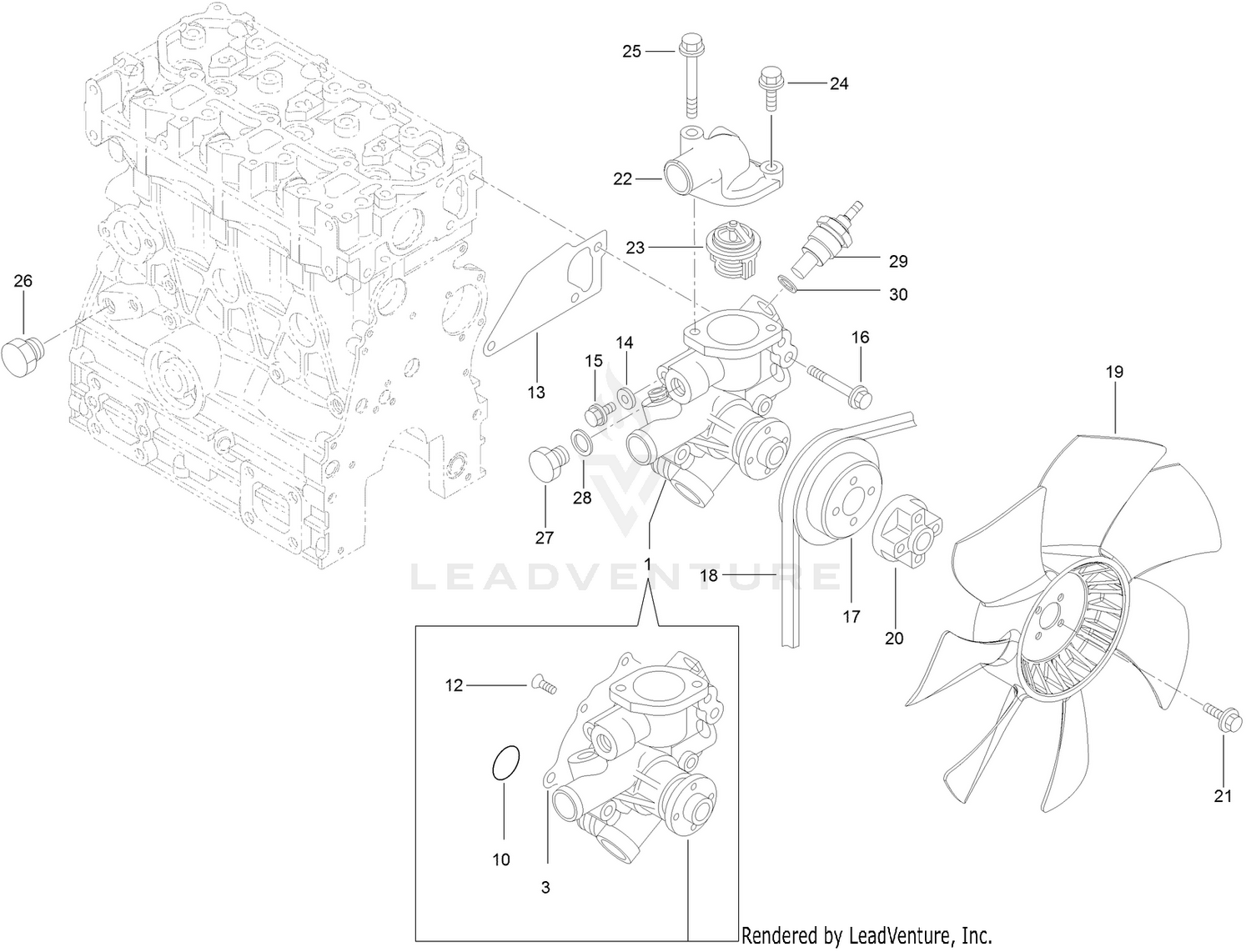

Cooling Water System Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-4009 | PUMP ASSY, CW Price: $265.48 |
| 3 | 135-4188 | GASKET Price: $49.99 |
| 10 | 135-4190 | O-RING Price: $8.99 |
| 12 | 133-2504 | SCREW Price: $2.46 |
| 13 | 135-4193 | GASKET-PUMP, WATER Price: $15.99 |
| 14 | 125-7192 | GASKET Price: $1.14 |
| 15 | 125-7212 | BOLT Price: $2.74 |
| 16 | 125-7220 | BOLT Price: $4.99 |
| 17 | 134-1417 | V-PULLEY Price: $66.40 |
| 18 | 140-7179 | V-BELT Price: $39.02 |
| 19 | 140-7157 | FAN-COOLING Price: $86.24 |
| 20 | 131-2705 | SPACER Price: Call Us |
| 21 | 131-2739 | BOLT Price: Call Us |
| 22 | 135-4199 | COVER-THERMOSTAT Price: $130.99 |
| 23 | 135-4200 | THERMOSTAT Price: $66.99 |
| 24 | 135-4201 | BOLT Price: $1.99 |
| 25 | 135-4202 | BOLT Price: $2.49 |
| 26 | 125-7171 | PLUG-DRAIN Price: $23.08 |
| 27 | 125-6953 | PLUG Price: $7.59 |
| 28 | 125-6979 | GASKET Price: $2.55 |
| 29 | 134-3128 | SENSOR-TEMPERATURE Price: $68.42 |
