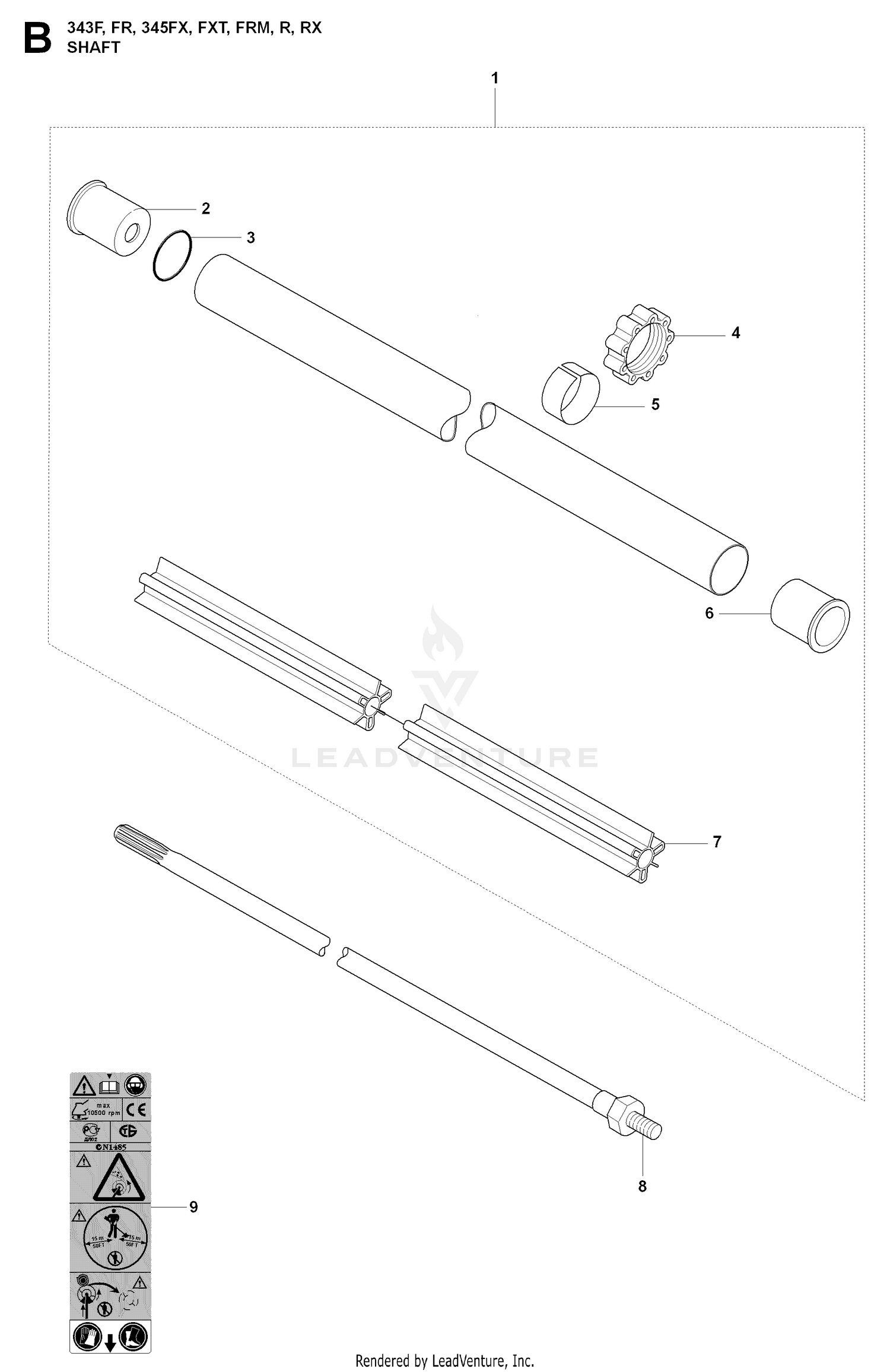

SHAFT
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-2102 | FRAME ASM Price: $10,957.85 |
| 1 | 586262602 | TUBE ASSY This part replaces 537279208. Price: $99.99 |
| 1 | 586262611 | Tubes This part replaces 537279210. Price: $64.99 |
| 2 | 33016-00 | NUT-HEX Price: $1.13 |
| 2 | 544029401 | SPACER SLEEVE Price: $3.99 |
| 3 | 100-5359 | HANDLE ASM Price: $56.86 |
| 3 | 506110301 | O-RING Price: $3.99 |
| 4 | 100-5389 | PIN-LYNCH Price: $7.46 |
| 4 | 537309801 | MOVEMENT LIMITER Price: $6.99 |
| 5 | 100-5356 | HANDLE-CONTROL, DEPTH Price: $172.12 |
| 5 | 537309702 | BAND This part replaces 537309701. Price: $3.99 |
| 6 | 106-2114 | WASHER-FLAT Price: $4.85 |
| 6 | 544029401 | SPACER SLEEVE Price: $3.99 |
| 7 | 100-5440 | PIN-SPRING, SLOTTED Price: $0.97 |
| 7 | 505444301 | GUIDE This part replaces 537183104. Price: $49.99 |
| 7 | 505444304 | GUIDE This part replaces 537183105. Price: $24.99 |
| 8 | 100-5448-03 | GUARD-SIDE, RH Price: $385.23 |
| 8 | 503924402 | SHAFT Price: $49.99 |
| 8 | 503924403 | DRIVE SHAFT Price: $54.99 |
| 8 | 503955401 | SHAFT Price: $59.99 |
| 8 | 503955402 | SHAFT Price: $59.99 |
| 9 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 9 | 537294703 | WARNING DECAL Price: $4.99 |
| 9 | 537294707 | DECAL Price: $4.99 |
| 10 | 48-7960 | NUT This part replaces 33015-00. Price: $1.40 |
| 11 | 100-5425-03 | RH ROLLER LEG ASM Price: $829.01 |
| 12 | 100-5422-03 | BRACKET-TURF FINGER Price: $524.01 |
| 13 | 33016-00 | NUT-HEX Price: $1.13 |
| 14 | 43-5940 | WASHER-LOCK, SPRING Price: $0.70 |
| 15 | 33096-00 | WASHER-FLAT Price: $1.76 |
| 16 | 100-5423-03 | CLAMP-GUARD, TURF Price: $129.50 |
| 17 | 3290-355 | PIN-HAIR Price: $2.09 |
| 18 | 104-0935 | SCREW-HH Price: $57.47 |
| 19 | 100-7564 | PIN-BRACKET, TURF Price: $62.02 |
| 20 | 100-5424-03 | LH ROLLER LEG ASM Price: $829.01 |
| 21 | 100-7568-03 | GUARD-SIDE, LH Price: $385.23 |
| 22 | 48-9590 | WASHER-LOCK Price: $0.25 |
