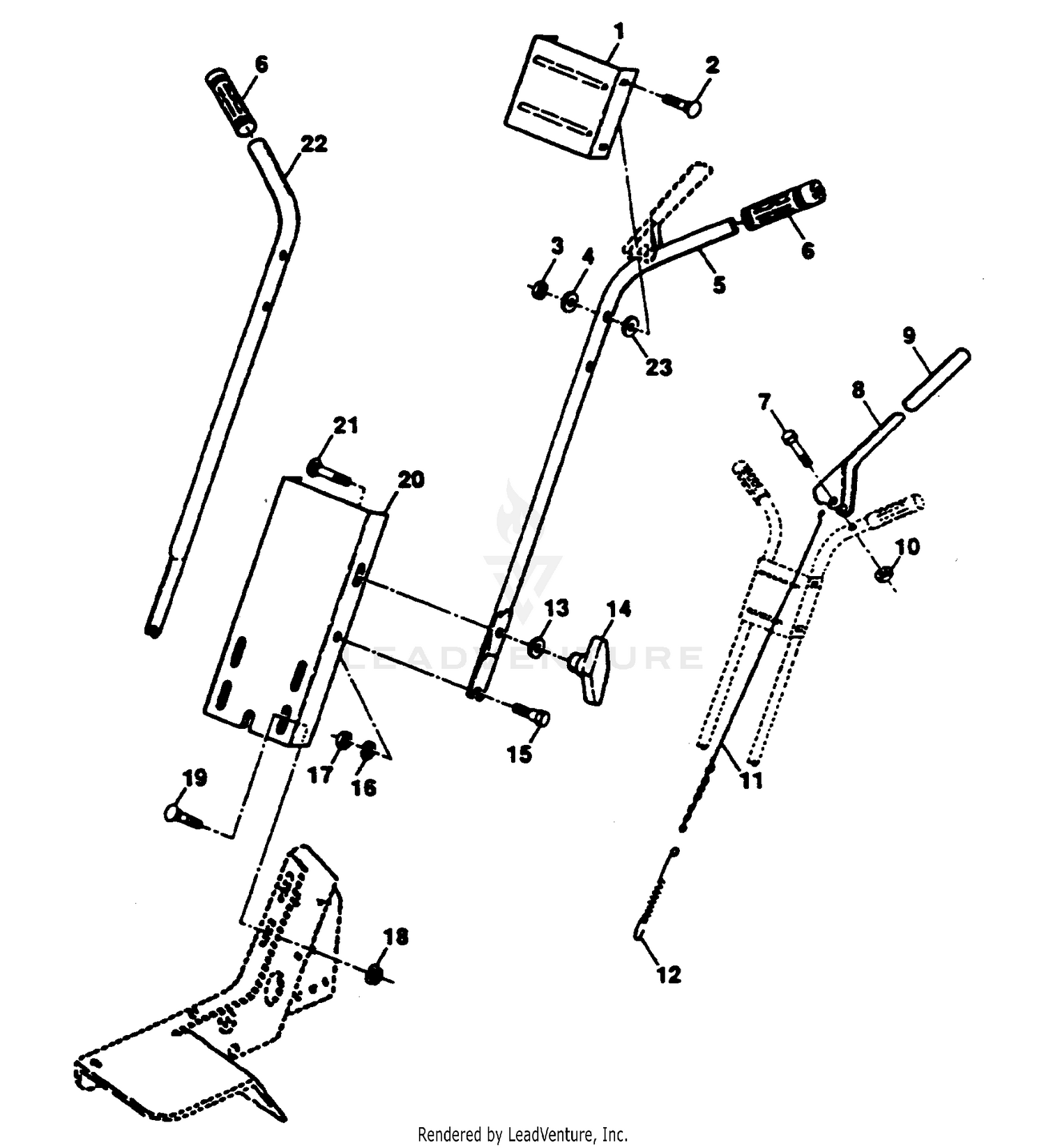

| Ref | Part Number | Description |
|---|
| 1 |
131-0521 |
RH SIDE PLATE ASM Price: $372.57 |
| 1 |
532125461 |
Bracket, Handle (AYP part number) Price: $2.99 |
| 2 |
131-0520 |
LH SIDE PLATE ASM Price: $372.57 |
| 2 |
539102933 |
RHSNB 5/16-18 X 1-1/2 GR 5 ZD This part replaces 872140512. Price: $1.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 4 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
532002621 |
Handle, L.H. (AYP part number) Price: $3.33 |
| 6 |
532009266 |
Grip, Handle (AYP part number) Price: $3.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
539976935 |
CAPSCREW 5/16 X 1/1/2 HEX HEAD This part replaces 874760524. Price: $1.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
532003069 |
Lever, Control, Tine (AYP part number) Price: $3.33 |
| 9 |
108-4960 |
SPRING-COMPRESSION Price: $24.68 |
| 9 |
532008206 |
GRIP T This part replaces 532124797. Price: $3.99 |
| 10 |
532124949 |
Nut, Hex (AYP part number) Price: $3.99 |
| 11 |
532003067 |
Cable, Control, Tine (AYP part number) Price: Call Us |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
532003070 |
Spring, Extension (AYP part number) Price: $3.33 |
| 13 |
108-4959 |
ROD-TURF Price: $54.38 |
| 13 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 14 |
532183724 |
KNOB.HANDLE.KIT.SERVICE This part replaces 532136376. Price: $6.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
532000471 |
Bolt, Shoulder 5/16-18 x 3/4 (AYP part number) Price: $7.99 |
| 16 |
810040500 |
Washer, Lock 5/16 (AYP part number) Price: $2.99 |
| 17 |
873220500 |
Nut, Hex 5/16-18 (AYP part number) Price: $3.99 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
898000129 |
Nut, Flanged 5/16-18 (AYP part number) Price: $5.99 |
| 19 |
107-2951 |
FRAME Price: $239.55 |
| 19 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
532125462 |
Panel, Handle (AYP part number) Price: $22.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 21 |
872110510 |
Bolt, Carriage 5/16-18 x 1-1/4 Gr. 5 (AYP part number) Price: $3.99 |
| 22 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 22 |
532002622 |
Handle, R.H. (AYP part number) Price: $3.33 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 25 |
106-3937 |
CARRIER FRAME ASM Price: $489.45 |
