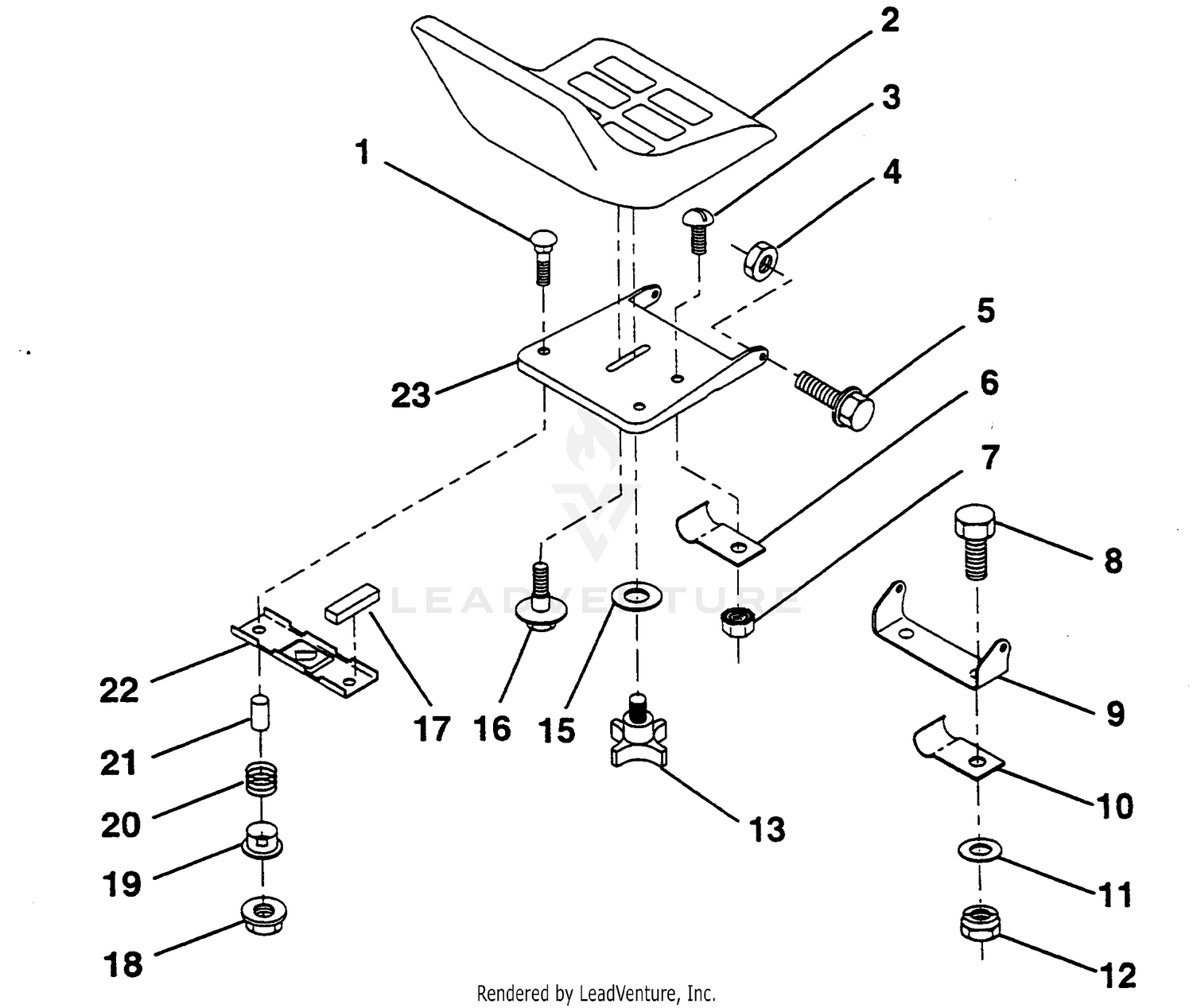

| Ref | Part Number | Description |
|---|
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
532127428 |
Seat (AYP part number) Price: $119.99 |
| 3 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number) Price: $2.99 |
| 4 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 5 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 6 |
532124967 |
Clip, Insulated (AYP part number) Price: $5.46 |
| 7 |
873951000 |
Nut, Hex, Keps #10-32 UNF (AYP part number) Price: $5.99 |
| 8 |
874760612 |
Bolt, Hex, Fin. 3/8-16 UNC x 3/4 (AYP part number) Price: $1.99 |
| 9 |
532126656 |
Bracket, Pivot, Seat (AYP part number) Price: $5.46 |
| 10 |
532126471 |
Clip, Insulated (AYP part number) Price: $2.99 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 12 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 13 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 15 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Gauge (AYP part number) Price: $3.99 |
| 16 |
532127018 |
Bolt, Shoulder (AYP part number) Price: $3.99 |
| 17 |
532121251 |
Strip, Foam (AYP part number) Price: $5.46 |
| 18 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 19 |
532121248 |
Bushing, Snap (AYP part number) Price: $3.99 |
| 20 |
532121250 |
Spring, Compression (AYP part number) Price: $3.99 |
| 21 |
532134300 |
Spacer, Split, Large .28 Id. x .96 (AYP part number) Price: $3.99 |
| 22 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
