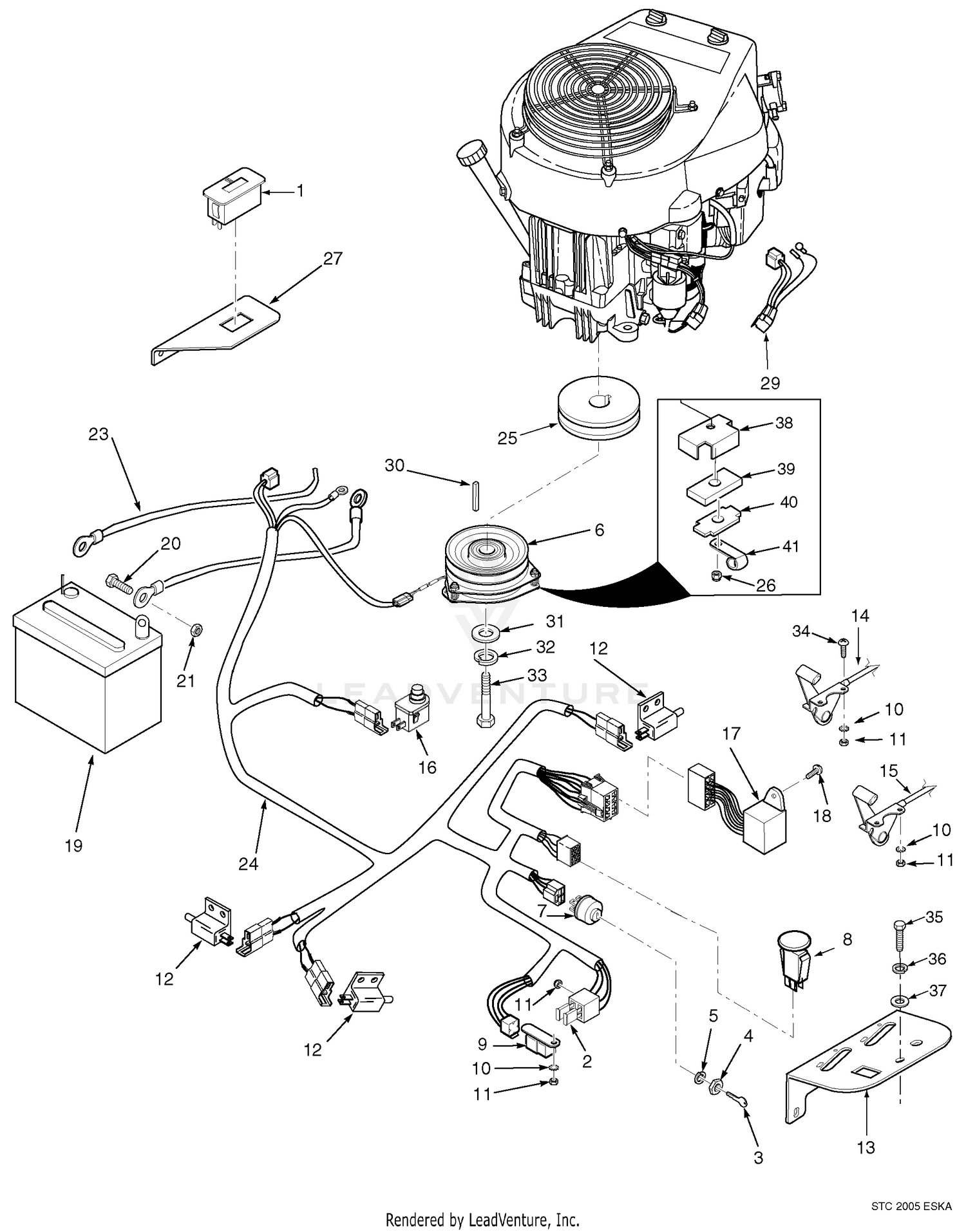

| Ref | Part Number | Description |
|---|
| 1 |
484565 |
Hourmeter, Inductive This part replaces 483355. Price: Call Us |
| 2 |
48298 |
Fuse, 20 amp Price: Call Us |
| 3 |
48017-02 |
Key, Ignition Price: Call Us |
| 4 |
48017-04 |
Nut, Hex 5/8-32 Price: Call Us |
| 5 |
48017-03 |
Lockwasher, 5/8" Internal Price: Call Us |
| 6 |
461660 |
Electric PTO Clutch GT3.5 Price: Call Us |
| 7 |
48798 |
Switch, Ignition Price: Call Us |
| 8 |
463034 |
SEALED PTO SWITCH KIT This part replaces 483162. Price: Call Us |
| 9 |
483013 |
Relay Price: Call Us |
| 10 |
04031-01 |
Lock Washer, #10 External Tooth Price: Call Us |
| 11 |
04020-01 |
Nut, Hex #10-32 Price: Call Us |
| 12 |
481637 |
Switch, N/O Price: Call Us |
| 13 |
462326 |
INSTR PANEL W/ DECAL, STC This part replaces 461768. Price: Call Us |
| 16 |
481638 |
Switch, Seat Price: Call Us |
| 17 |
483599 |
Electric Module This part replaces 483029. Price: Call Us |
| 18 |
04010-01 |
Screw, #10-32 x .5" Phillips Head Price: Call Us |
| 20 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 21 |
04020-02 |
Nut, Hex 1/4-20 Price: Call Us |
| 24 |
484648 |
Wiring Harness, Main (Briggs & Stratton, Kohler) This part replaces 483426. Price: Call Us |
| 25 |
483081 |
Pulley, 5.45 OD x 1.125 Bore Price: Call Us |
| 26 |
04021-10 |
Nut, Elastic Stop 5/16-18 Key Price: Call Us |
| 27 |
424112 |
Mounting Bracket, Hour Meter Price: Call Us |
| 28 |
04010-11 |
Screw, #10-32 x 1.5" Phillips Head Price: Call Us |
| 30 |
04063-23 |
Key, 1/4 x 1/4 x 3-1/4” Price: Call Us |
| 31 |
04041-28 |
Flatwasher, 7/16-.469 x 1-3/4" x 1/4" Price: Call Us |
| 32 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 33 |
04001-101 |
Bolt, Hex Head 7/16-20 x 2-1/2" UNF Price: Call Us |
| 34 |
04010-12 |
Screw, #10-32 x 3/4" Price: Call Us |
| 35 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 36 |
04030-03 |
Lockwasher, 5/16 Price: Call Us |
| 37 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 38 |
423909 |
Backing Plate Price: Call Us |
| 39 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 40 |
422534 |
Plate, Backing Price: Call Us |
