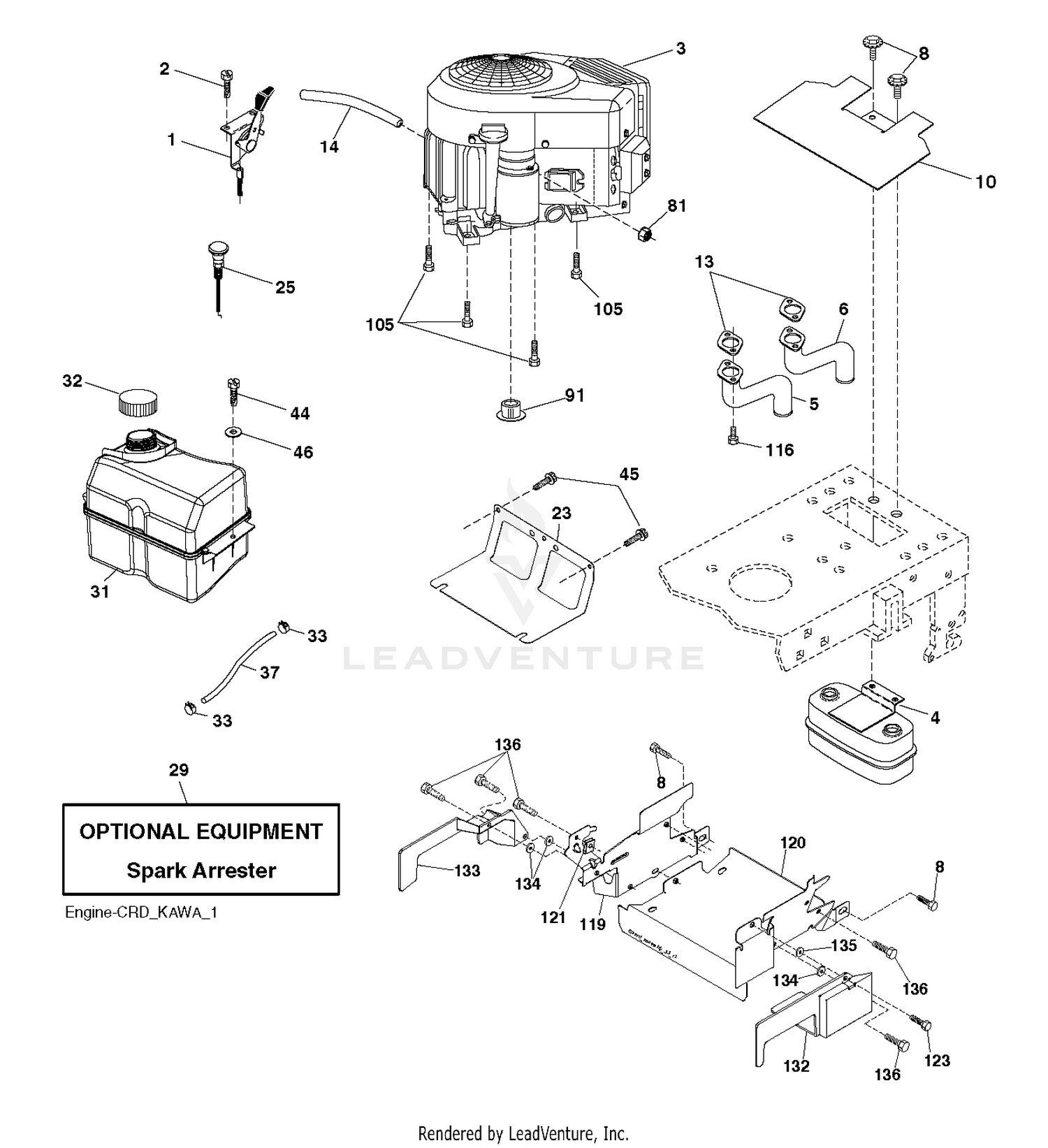

| Ref | Part Number | Description |
|---|
| 1 |
112-1350 |
STARTER ASM This part replaces 70-8760. Price: $448.98 |
| 1 |
532190196 |
THROTTLE CONTROL This part replaces 532190454. Price: $32.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 2 |
67-4610 |
BOLT W/WASHER Price: $2.32 |
| 3 |
70-8770 |
FRONT BRACKET ASM Price: $181.75 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
67-4720 |
LEVER ASSEMBLY Price: $19.98 |
| 5 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 5 |
67-4730 |
DISCONTINUED Price: Call Us |
| 6 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 6 |
70-8780 |
DISCONTINUED Price: Call Us |
| 7 |
56-1560 |
SWITCH ASM This part replaces 67-4750. Price: $440.70 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
56-1570 |
BOLT Price: $6.29 |
| 9 |
56-1680 |
COVER SET Price: $20.80 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 10 |
56-1670 |
GEAR Price: $119.60 |
| 11 |
67-4790 |
DISCONTINUED Price: Call Us |
| 12 |
67-4780 |
GEAR SET Price: $434.34 |
| 13 |
532178151 |
GASKET Price: $4.99 |
| 13 |
56-1640 |
STOPPER SET Price: $18.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
67-4770 |
PINION SET Price: $192.09 |
| 15 |
67-4760 |
SHAFT ASSEMBLY Price: $835.38 |
| 16 |
56-1610 |
BOLT Price: $6.86 |
| 17 |
56-1720 |
REAR BRKT Price: $150.01 |
| 18 |
93-3573 |
HOLDER ASSY-BRUSH This part replaces 56-1700. Price: $83.00 |
| 19 |
56-1710 |
DISCONTINUED Price: Call Us |
| 20 |
112-1350 |
STARTER ASM This part replaces 67-4800. Price: $448.98 |
| 21 |
93-3564 |
BEARING REAR This part replaces 56-1600. Price: $33.38 |
| 22 |
56-1590 |
FRONT BRG Price: $44.07 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532187766 |
CONTROL, CHOKE, 37", PUSH This part replaces 532191717. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532430825. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 119 |
583254301 |
GUARD.ENGINE.CRD.LH This part replaces 532199768. Price: $17.99 |
| 120 |
583254201 |
GUARD.ENGINE.CRD.RH This part replaces 532199767. Price: $29.99 |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 123 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 132 |
583383301 |
SHIELD.SIDE.CRD.FR.RH This part replaces 532420757. Price: $9.99 |
| 133 |
583383201 |
SHIELD.SIDE.CRD.FR.LH This part replaces 532420756. Price: $6.99 |
| 134 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 135 |
583400601 |
PALNUT.5/16" This part replaces 532423063. Price: $2.99 |
