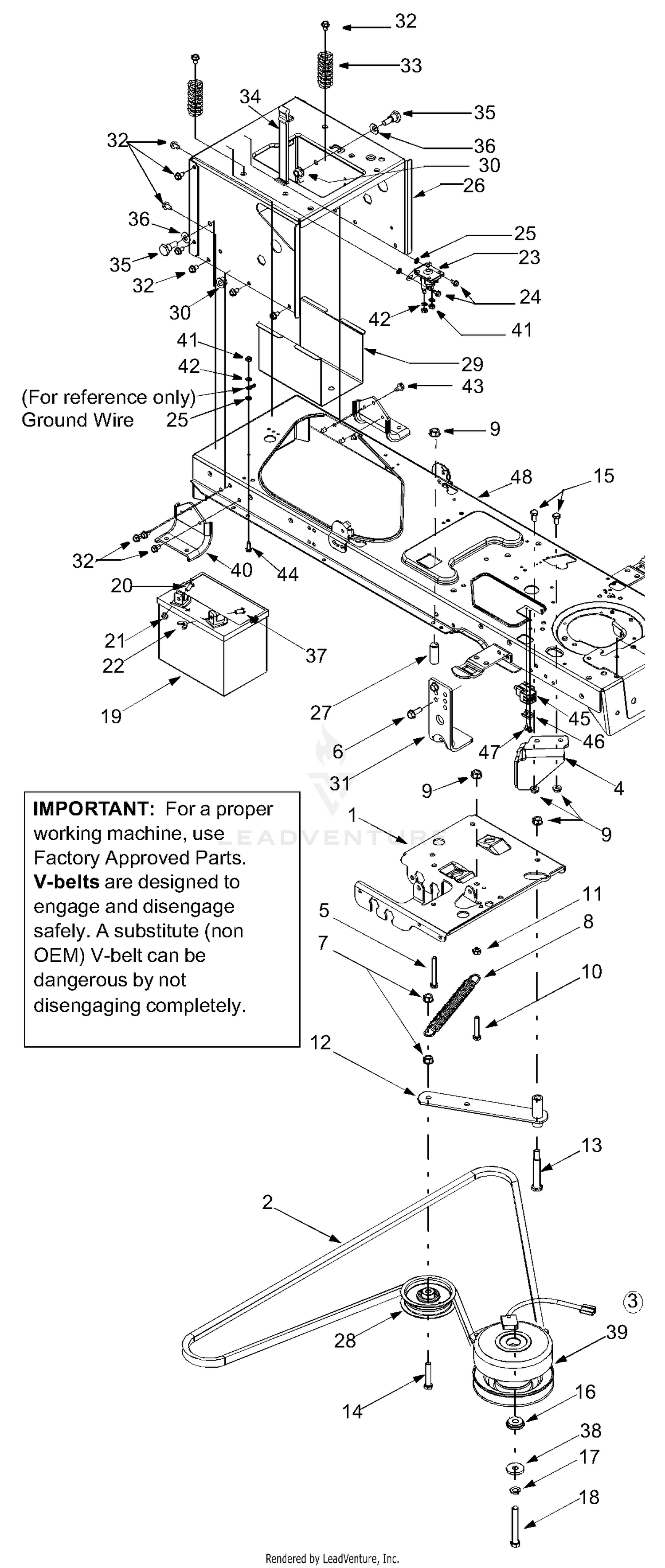

| Ref | Part Number | Description |
|---|
| 1 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-0653E. Price: $78.74 |
| 2 |
954-0476 |
V-Belt This part replaces 754-0476. Price: $67.50 |
| 4 |
683-0618-0637 |
BRACKET ASSEMBLY Not Available This part replaces 783-1487. Price: |
| 5 |
710-0859 |
Hex Cap Screw, 3/8-16 x 2.5 Price: $5.99 |
| 6 |
710-0726 |
Hex Hd Wash. Screw, 5/16-18 x .875 Price: $3.82 |
| 7 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 8 |
732-0978 |
Extension Spring, .62 x 5.62 Not Available Price: |
| 9 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 10 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.93 |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 12 |
683-0294 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 13 |
938-3056 |
Shoulder Screw, 1/2 Dia x 2.50 This part replaces 738-3056. Price: $8.53 |
| 14 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.0 Price: $4.02 |
| 15 |
710-3025 |
Hex Cap Screw, 5/16-18 x .625 Price: $3.64 |
| 16 |
938-0785 |
Shoulder Spacer, 1.38 x .445 x .36 This part replaces 738-0785. Price: $24.12 |
| 17 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 18 |
710-3157A |
Screw, 7/16-20 x 3.25 This part replaces 710-3157. Price: $9.67 |
| 19 |
925-1707D |
BATTERY Not Available This part replaces 725-1706. Price: |
| 20 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 21 |
712-0271 |
Hex Sems Nut, 1/4-20 Price: $3.78 |
| 22 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 23 |
925-1426A |
Solenoid, 12-Volt, 100 Amp This part replaces 725-1426. Price: $24.63 |
| 24 |
710-0599 |
Self Tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 25 |
736-0222 |
Lock Washer, 1/4 Price: $5.07 |
| 26 |
783-1033A |
UPPER HITCH PLATE Not Available Price: |
| 27 |
748-0415B |
SPACER .385ID x 1.54" Not Available Price: |
| 28 |
756-0639A |
ENGINE PULLEY Price: $71.36 |
| 29 |
783-0349 |
BATTERY TRAY Not Available Price: |
| 30 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 31 |
783-04467 |
DECK UP STOP BRACKET Not Available Price: |
| 32 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 33 |
732-3080A |
Compression Spring, 1.28 x 3.5 This part replaces 732-3080. Price: $12.91 |
| 34 |
723-0444 |
BATTERY STRAP Not Available Price: |
| 35 |
738-1020 |
Shoulder Screw, .625 x .5, 7/16-20 Price: $6.88 |
| 36 |
736-0407 |
Bell Washer, .45 x 1.0 x .062 Price: $3.64 |
| 37 |
738-1132 |
Shoulder Screw, 1/4-20, .25 x .15 Price: $4.47 |
| 38 |
736-0322 |
Flat Washer, .45 x 1.25 x .164 Price: $8.42 |
| 39 |
925-3242 |
Harness Assembly, PTO Clutch This part replaces 629-04047. Price: $20.53 |
| 40 |
783-0693A-0637 |
AXLE BRACKET Not Available This part replaces 783-0693. Price: |
| 41 |
712-3006 |
HEX NUT Price: $4.05 |
| 42 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 43 |
710-0607 |
TT Screw 5/16-18 x 0.5 Price: $6.06 |
| 44 |
710-0642 |
TT Screw 1/4-20 x 0.75 Price: $4.05 |
| 45 |
925-1657A |
Switch This part replaces 7251657A. Price: $22.57 |
| 46 |
17962 |
Switch Plate Price: $4.36 |
| 47 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 48 |
683-0304C |
LOWER FRAME ASSEMBLY Not Available Price: |
