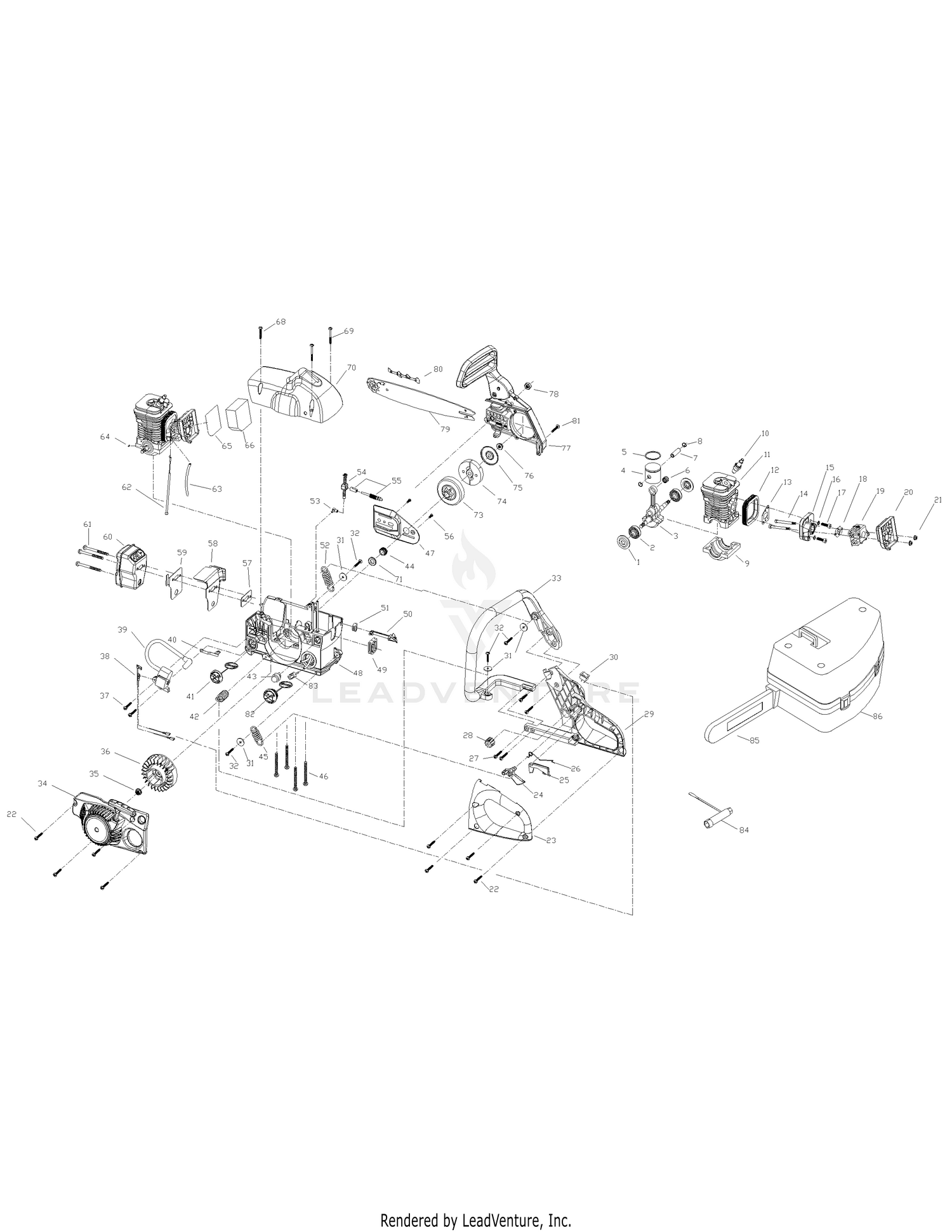

General Assembly
Parts (82)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MC-9157-310502 | CAP-BEARING Not Available Price: |
| 2 | MC-9DB-620101 | BEARING Not Available Price: |
| 3 | MC-9228-310505 | CRANK ROD ASSEMBLY Not Available Price: |
| 4 | MC-9290-310502 | PISTON Not Available Price: |
| 5 | MC-9189-310502 | RING-PISTO Not Available Price: |
| 6 | MC-9NB-K101410 | ROLLER-PIS Not Available Price: |
| 7 | MC-9PC-10-34.5 | PISTON PIN Not Available Price: |
| 8 | MC-9CA-10.3 | RING Not Available Price: |
| 9 | MC-9072-310501F | CASE-CRANK Not Available Price: |
| 10 | MC-9295-310502 | SPARK PLUG Not Available Price: |
| 11 | MC-9292-310501F | CYLINDER Not Available Price: |
| 12 | MC-9012-310502 | RUBBER, ISOLATOR Not Available Price: |
| 13 | MC-9082-310505 | SPACER Not Available Price: |
| 14 | MC-9STDB-05-60 | SCREW Not Available Price: |
| 15 | MC-9082-310504 | ISOLATOR-C Not Available Price: |
| 16 | MC-6WSB-06 | WASHER-SPR Not Available Price: |
| 17 | MC-9SACB-06-25 | SCREW Not Available Price: |
| 18 | MC-9082-310506 | SPACER Not Available Price: |
| 19 | MC-9287-310501 | CARBURETOR Not Available Price: |
| 20 | MC-9228-310510 | FILTER ASSEMBLY Not Available Price: |
| 21 | MC-9NHZ-05 | NUT Not Available Price: |
| 23 | MC-9068-310501 | HANDLE-LEFT Not Available Price: |
| 24 | MC-9028-310502 | TRIGGER, THROTTLE Not Available Price: |
| 25 | MC-9028-310501 | TRIGGER-RE Not Available Price: |
| 26 | MC-9024-310504 | SPRING Not Available Price: |
| 27 | MC-9SKKBY10/14-0.68 | SCREW Price: Call Us |
| 28 | MC-9027-310101 | RUBBER ISOLATOR Not Available Price: |
| 29 | MC-9068-310502 | HANDLE-REAR Not Available Price: |
| 30 | MC-9022-310501 | SWITCH Not Available Price: |
| 31 | MC-9WFB-05-21 | WASHER Not Available Price: |
| 32 | MC-9SKKBY8/16-0.625 | SCREW Price: Call Us |
| 33 | MC-9068-MD0701 | FRONT HANDLE Not Available Price: |
| 34 | MC-9228-MD0701 | STARTER HS Not Available Price: |
| 35 | MC-9NAB-5/16-24 | NUT Not Available Price: |
| 36 | MC-9169-310501 | FLYWHEEL Not Available Price: |
| 37 | 710-04232 | SCREW 8/16-0.75 Not Available Price: |
| 38 | MC-9010-310503 | WIRE ASSEMBLY Not Available Price: |
| 39 | MC-9288-310501-CH | IGNITION ASS'Y Price: Call Us |
| 40 | MC-9051-310501 | PLATE-CONDUCTIVE Not Available Price: |
| 41 | MC-9228-310207 | CAP-OIL Not Available Price: |
| 42 | MC-9228-310514 | SPRING ASSEMBLY Not Available Price: |
| 43 | MC-9142-310002 | PRIMER Not Available Price: |
| 44 | MC-9073-310503 | WORM Not Available Price: |
| 45 | MC-9024-310506 | SPRING Not Available Price: |
| 46 | MC-9SFAB-06-55 | SCREW Not Available Price: |
| 47 | MC-9017-310508 | CAP-ANTI-D Not Available Price: |
| 48 | MC-9228-310511 | HOUSING ASSEMBLY Not Available Price: |
| 49 | MC-9012-310503 | HOLDER-CAB Not Available Price: |
| 50 | MC-9114-310510 | CHOKE LEVER Not Available Price: |
| 51 | MC-9012-310504 | CHOKE LEVE Not Available Price: |
| 52 | MC-9024-310507 | SPRING Not Available Price: |
| 53 | MC-9124-310102 | FITTING Not Available Price: |
| 54 | MC-9013-310501 | OIL PIPE Not Available Price: |
| 55 | MC-9228-310526 | PUMP ASS'Y Not Available Price: |
| 56 | MC-6SDABB04-08 | SCREW Not Available Price: |
| 57 | MC-9082-310507 | SPACER Not Available Price: |
| 58 | MC-9082-310502 | BAFFLE Not Available Price: |
| 59 | MC-9082-310501 | BAFFLE Not Available Price: |
| 60 | MC-9228-310519 | MUFFLER ASS'Y Not Available Price: |
| 61 | MC-9SXDB-06-70 | SCREW Not Available Price: |
| 62 | MC-9010-310502 | THROTTLE CABLE Not Available Price: |
| 63 | MC-9129-310504 | FUEL PIPE Not Available Price: |
| 64 | MC-9221-310001 | KEY Not Available Price: |
| 65 | MC-9183-310502 | MESH Not Available Price: |
| 66 | MC-9252-310501 | AIR FILTER Not Available Price: |
| 68 | MC-9SKKBY-8/16-1 | SCREW Not Available Price: |
| 69 | MC-9SKKBY8/16-1.4 | SCREW Price: Call Us |
| 70 | MC-9017-310509 | SHROUD Not Available Price: |
| 71 | MC-9157-310501 | FELT Not Available Price: |
| 73 | MC-9228-310515 | DRUM ASSEMBLY Not Available Price: |
| 74 | MC-9228-310528 | CLUTCH ASSEMBLY Not Available Price: |
| 75 | MC-9077-310501 | CAP-ANTI D Not Available Price: |
| 76 | MC-9NHC-09 | NUT Not Available Price: |
| 77 | MC-9228-MD0702 | BRAKE KIT ASSEMBLY Not Available Price: |
| 78 | MC-9NAZ-5/16-18 | NUT Not Available Price: |
| 79 | MC-9040-MD0703 | BAR-18 Not Available Price: |
| 80 | 713-05042 | CHAIN 18" This part replaces MC-6220-210805. Price: $29.04 |
| 81 | MC-9SGKBY10/14-0.6 | SCREW Price: Call Us |
| 82 | MC-9228-310206 | FUEL CAP Not Available Price: |
| 83 | MC-9182-310503 | FILTER Not Available Price: |
| 84 | MC-9042-310201 | WRENCH Not Available Price: |
| 85 | MC-9017-310214 | SCABBARD Not Available Price: |
