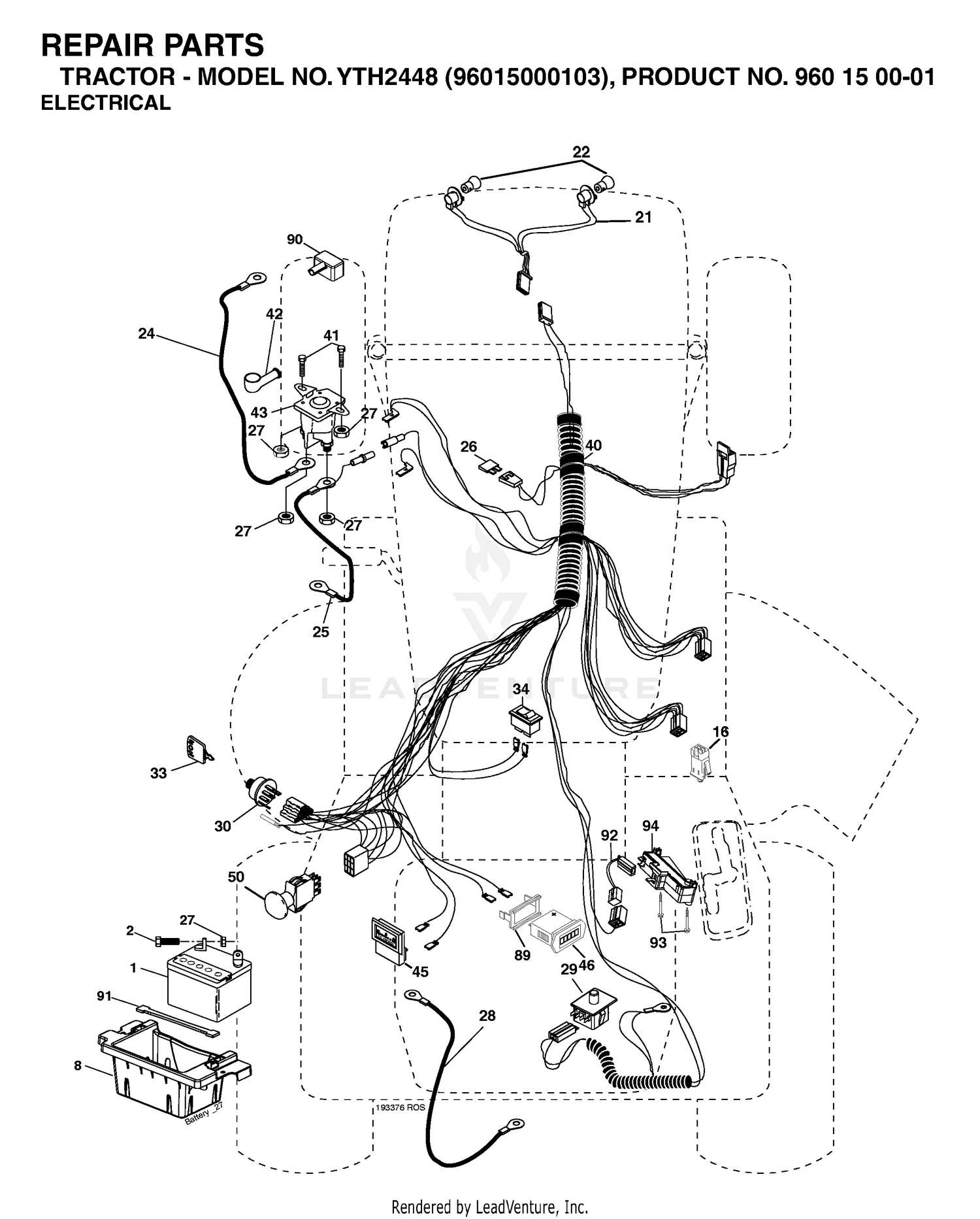

| Ref | Part Number | Description |
|---|
| 1 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
47-3880-03 |
CONTROL LINKAGE ASM This part replaces 47-3880. Price: $260.93 |
| 4 |
47-3620 |
BLOCK-PIVOT, LEVER Price: $54.93 |
| 5 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 6 |
47-3680-01 |
UPPER CONTROL TOWER ASM This part replaces 47-3680. Price: $528.76 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
47-3380-01 |
CONTROL TOWER ASM This part replaces 47-3380. Price: $407.03 |
| 10 |
3217-8 |
NUT-HEX Price: $1.34 |
| 11 |
47-3630 |
ROD-LINKAGE, CONTROL Price: $104.04 |
| 12 |
327-6 |
SCREW-HH Price: $12.99 |
| 13 |
32128-23 |
NUT-HF Price: $1.51 |
| 14 |
325-6 |
SCREW-HH Price: $1.42 |
| 15 |
55-7380-01 |
TONGUE ASM This part replaces 55-7380. Price: $2,297.13 |
| 16 |
322-6 |
SCREW-HH Price: $0.45 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
26-8250-01 |
PIN-ARM, LIFT This part replaces 26-8250. Price: $99.04 |
| 18 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
47-3250-01 |
NO. 2 AND 3 LIFT ARM ASM This part replaces 47-3250. Price: $779.92 |
| 21 |
26-8160-01 |
SUPPORT-ARM, LIFT This part replaces 26-8160. Price: $1,410.43 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
3296-24 |
NUT-HEX Price: $4.44 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
T0000-3423 |
JACK-SIDEWIND This part replaces 98-5016. Price: $134.35 |
| 24 |
47-3460 |
U-BOLT Price: $29.53 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
327-23 |
SCREW-HH Price: $3.60 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550. Price: $161.64 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
49-8180 |
DISCONTINUED Price: $15.10 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $17.99 |
| 30 |
353-819 |
COUPLER-BODY Price: $156.66 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
353-820 |
COUPLER-TIP Price: $84.94 |
| 32 |
52-5990 |
HYD HOSE Price: $381.48 |
| 33 |
52-5991 |
HYD HOSE Price: $322.07 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
47-3810 |
LEVER-VALVE Price: $60.07 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
137-6138 |
DECAL-OPERATION This part replaces 47-5600. Price: $57.30 |
| 36 |
47-3820-03 |
COVER-COLUMN This part replaces 47-3820. Price: $79.97 |
| 37 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 38 |
47-3770 |
DECAL-MANUAL, OWNER Price: $25.33 |
| 39 |
3-0631 |
BALL-GRIP Price: $10.76 |
| 40 |
47-3450 |
PIVOT PIN Price: $54.81 |
| 40 |
532193376 |
HARNESS.IGN.ELECT.STL Price: $104.99 |
| 41 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 92 |
532193465 |
HARNESS.PIGTAIL.REVERSE.SWITCH Price: $7.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
