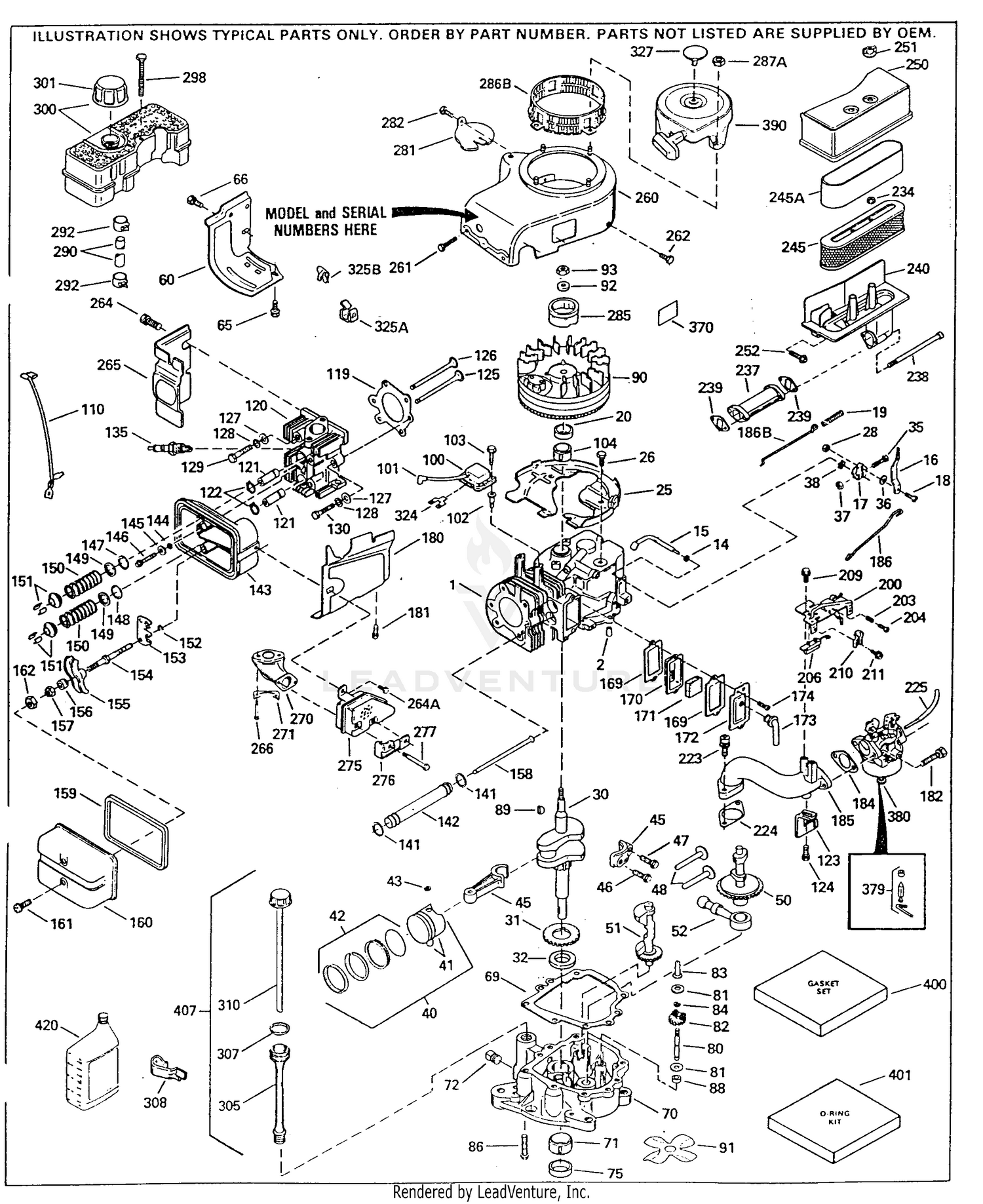

| Ref | Part Number | Description |
|---|
| 1 |
35399B |
CYLINDER Price: Call Us |
| 2 |
27652 |
PIN Price: $1.58 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
35324 |
GOVERNOR ROD Price: $2.62 |
| 16 |
32651 |
GOV LEVER Price: $1.26 |
| 17 |
29916 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 19 |
35203 |
EXT SPRING Price: $4.82 |
| 20 |
35319 |
OIL SEAL Price: $3.50 |
| 25 |
37853 |
BAFFLE This part replaces 35326. Price: $7.95 |
| 26 |
650561 |
SCREW Price: $1.25 |
| 28 |
30322 |
NUT Price: $1.22 |
| 30 |
35336B |
CRANKSHAFT Price: Call Us |
| 31 |
35327 |
GEAR Price: $13.33 |
| 32 |
35653 |
WASHER Price: Call Us |
| 35 |
29826 |
SCREW Price: $1.26 |
| 36 |
29918 |
WASHER Price: $1.26 |
| 37 |
29216 |
NUT Price: $1.22 |
| 38 |
29642 |
RET RING Price: $1.26 |
| 40 |
35339A |
PISTON ASSY STD Price: $112.37 |
| 40 |
35340A |
PISTON ASSY 010 Price: $134.07 |
| 40 |
35341A |
PISTON ASSY 020 Price: $116.35 |
| 41 |
35329 |
PISTON & PIN ST Price: $96.53 |
| 41 |
35430 |
PISTON & PIN 10 Price: $110.52 |
| 41 |
35431 |
PISTON & PIN 20 Price: $95.47 |
| 42 |
34866A |
PISTON ASSY STD Price: $38.65 |
| 42 |
34867A |
RING SET 010 Price: $29.79 |
| 42 |
34868A |
RING SET 020 Price: $28.31 |
| 43 |
31919 |
RET RING Price: $1.19 |
| 45 |
36898A |
CONN ROD This part replaces 35330A. Price: $37.73 |
| 46 |
651063 |
SCREW This part replaces 650908. Price: $1.26 |
| 47 |
651033A |
SCREW This part replaces 650882. Price: $1.12 |
| 48 |
35313A |
VALVE LIFTER This part replaces 35313. Price: Call Us |
| 50 |
35939 |
CAMSHAFT This part replaces 35314. Price: $60.66 |
| 51 |
35315A |
WEIGHT Price: $68.51 |
| 52 |
31356 |
OIL PUMP Price: $8.86 |
| 60 |
35316A |
EXTENSION Price: $2.62 |
| 65 |
650128 |
SCREW Price: $3.60 |
| 66 |
30063 |
SCREW Price: $1.26 |
| 69 |
35317 |
GASKET Price: $3.43 |
| 70 |
35401A |
MTG FLANGE Price: $162.15 |
| 71 |
35-377 |
GASKET (OBS) FUEL CAP Price: Call Us |
| 72 |
31927 |
PIPE PLUG Price: $1.26 |
| 75 |
35319 |
OIL SEAL Price: $3.50 |
| 80 |
35320 |
GOV SHAFT Price: $1.26 |
| 81 |
651080 |
WASHER This part replaces 35479. Price: $1.24 |
| 82 |
35321 |
GEAR Price: $6.54 |
| 83 |
35322 |
GOV SPOOL Price: $1.18 |
| 84 |
29193 |
RET RING Price: $1.26 |
| 86 |
650833 |
SCREW Price: $1.20 |
| 88 |
31707A |
SPACER Price: $1.26 |
| 89 |
32589 |
KEY Price: $1.05 |
| 90 |
611094 |
FLYWHEEL Price: $208.44 |
| 92 |
650880 |
WASHER Price: $1.20 |
| 93 |
650881 |
NUT Price: $1.20 |
| 100 |
35135B |
LAMINATION This part replaces 35135. Price: $49.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 102 |
651024 |
STUD This part replaces 650872. Price: $2.60 |
| 103 |
651007 |
SCREW This part replaces 650814. Price: $1.17 |
| 104 |
35400 |
BUSHING Price: $6.89 |
| 110 |
35182 |
GROUND WIRE Price: $1.26 |
| 119 |
35306A |
GASKET Price: $8.28 |
| 120 |
35307 |
CYL HEAD Price: Call Us |
| 121 |
730218 |
VALVE GUIDE Price: $17.26 |
| 122 |
792035 |
Ring, Retaining Price: Call Us |
| 123 |
35288 |
BRACE Price: $1.18 |
| 124 |
650738 |
SCREW Price: $2.60 |
| 125 |
35308 |
EXH VALVE STD Price: $50.42 |
| 125 |
35433 |
EXH VALVE OS Price: $85.62 |
| 126 |
35309 |
INT VALVE ST Price: $24.18 |
| 126 |
35432 |
INT VALVE OS Price: $69.12 |
| 127 |
650691 |
WASHER Price: $1.25 |
| 128 |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 129 |
650746 |
SCREW Price: $1.25 |
| 130 |
650692 |
SCREW--NLA Price: Call Us |
| 135 |
34046 |
SPARK PLUG Price: $2.40 |
| 141 |
33481 |
O RING Price: $1.26 |
| 142 |
35475 |
ROD TUBE Price: Call Us |
| 143 |
35310 |
ROCKER HSG Price: Call Us |
| 144 |
33484 |
O RING Price: $1.26 |
| 145 |
650168 |
WASHER Price: $1.25 |
| 146 |
32610A |
SCREW Price: $1.26 |
| 147 |
33509 |
O RING Price: $2.62 |
| 148 |
34410 |
O RING Price: $2.62 |
| 149 |
33510 |
VALVE CAP Price: $1.26 |
| 150 |
33507 |
VALVE SPRING Price: $2.62 |
| 151 |
33508 |
VALVE RET Price: $6.54 |
| 152 |
35295 |
O RING Price: $1.18 |
| 153 |
35296 |
GUIDE Price: $4.56 |
| 154 |
650878 |
STUD Price: $3.86 |
| 155 |
730221A |
ROCKER ARM KIT This part replaces 35297. Price: $26.69 |
| 156 |
35298 |
BEARING Price: $1.22 |
| 157 |
28264 |
NUT Price: $2.62 |
| 158 |
35466 |
PUSH ROD Price: $10.62 |
| 159 |
35299B |
O RING Price: $7.89 |
| 160 |
35300A |
COVER This part replaces 35300. Price: $12.52 |
| 161 |
650879 |
SCREW Price: $1.20 |
| 162 |
650903 |
NUT Price: $1.22 |
| 169 |
27896A |
GASKET Price: $1.00 |
| 170 |
28423 |
BREATHER Price: $9.29 |
| 171 |
28424 |
ELEMENT Price: $2.62 |
| 172 |
28425 |
VALVE COVER Price: $5.21 |
| 173 |
35350 |
TUBE Price: $4.57 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 180 |
35301 |
EXTENSION Price: $3.69 |
| 181 |
650128 |
SCREW Price: $3.60 |
| 182 |
650517 |
SCREW Price: $1.25 |
| 184 |
33263 |
GASKET Price: $1.00 |
| 185 |
35856 |
INTAKE PIPE This part replaces 35304. Price: $42.01 |
| 186 |
35302 |
LINK Price: $1.22 |
| 186B |
35346 |
GOV LINK Price: $1.22 |
| 200 |
34109A |
CONTROL ASSY Price: Call Us |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 210 |
27793 |
CLIP Price: $1.26 |
| 211 |
28942 |
SCREW Price: $0.88 |
| 223 |
792028 |
Screw, 5/16-18 x 7/8" Price: Call Us |
| 224 |
33515A |
GASKET Price: $1.26 |
| 234 |
650825 |
NUT Price: $1.25 |
| 237 |
35286 |
ADAPTER-NLA Price: Call Us |
| 238 |
650875 |
SCREW Price: $2.60 |
| 239 |
33629 |
GASKET Price: $1.26 |
| 240 |
35960 |
CLEANER BODY This part replaces 35402B. Price: $30.05 |
| 245 |
35403 |
AIR CLEANER Price: $10.49 |
| 245A |
35404 |
AIR CLEANER Price: $2.80 |
| 250 |
3596-1 |
D/C (OBS) BASE This part replaces 35405. Price: Call Us |
| 251 |
650886 |
NUT Price: $1.43 |
| 252 |
650887 |
SCREW Price: $1.20 |
| 261 |
30063 |
SCREW Price: $1.26 |
| 262 |
29747C |
SCREW/LOCKWASHER ASSEMBLY This part replaces 29747B. Price: $1.26 |
| 264 |
650273 |
SCREW Price: $1.25 |
| 264A |
30063 |
SCREW Price: $1.26 |
| 265 |
35290 |
COVER Price: $2.47 |
| 266 |
650876 |
SCREW Price: $2.40 |
| 270 |
35292 |
EXH MANIFOLD Price: $27.32 |
| 271 |
35293 |
LOCK PLATE Price: $3.57 |
| 275 |
37250 |
MUFFLER This part replaces 35294. Price: $58.00 |
| 276 |
35348 |
LOCK PLATE Price: $3.43 |
| 277 |
650877 |
SCREW Price: $5.16 |
| 285 |
37966 |
STARTER CUP This part replaces 35287A. Price: $7.34 |
| 286B |
35446 |
SCREEN Price: $5.21 |
| 287A |
29752 |
NUT Price: $1.26 |
| 290 |
30705 |
FUEL LINE Price: $11.47 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 298 |
28763 |
SCREW Price: $1.16 |
| 307 |
33590 |
O RING Price: $1.26 |
| 308 |
33997 |
CLIP Price: $1.26 |
| 324 |
33177 |
TERMINAL Price: $1.26 |
| 325B |
34246 |
CLIP Price: $1.22 |
| 327 |
35392 |
STARTER PLUG Price: $1.22 |
| 370 |
36261 |
DECAL This part replaces 34346. Price: Call Us |
| 379 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 380 |
632413A |
CARBURETOR This part replaces 632413. Price: Call Us |
| 390 |
590685B |
STARTER This part replaces 590633. Price: $48.62 |
| 400 |
35331B |
GASKET SET Price: $35.76 |
| 401 |
35332 |
O RING KIT Price: $15.61 |
| 407 |
35837 |
TUBE & GAUGE Price: $11.40 |
