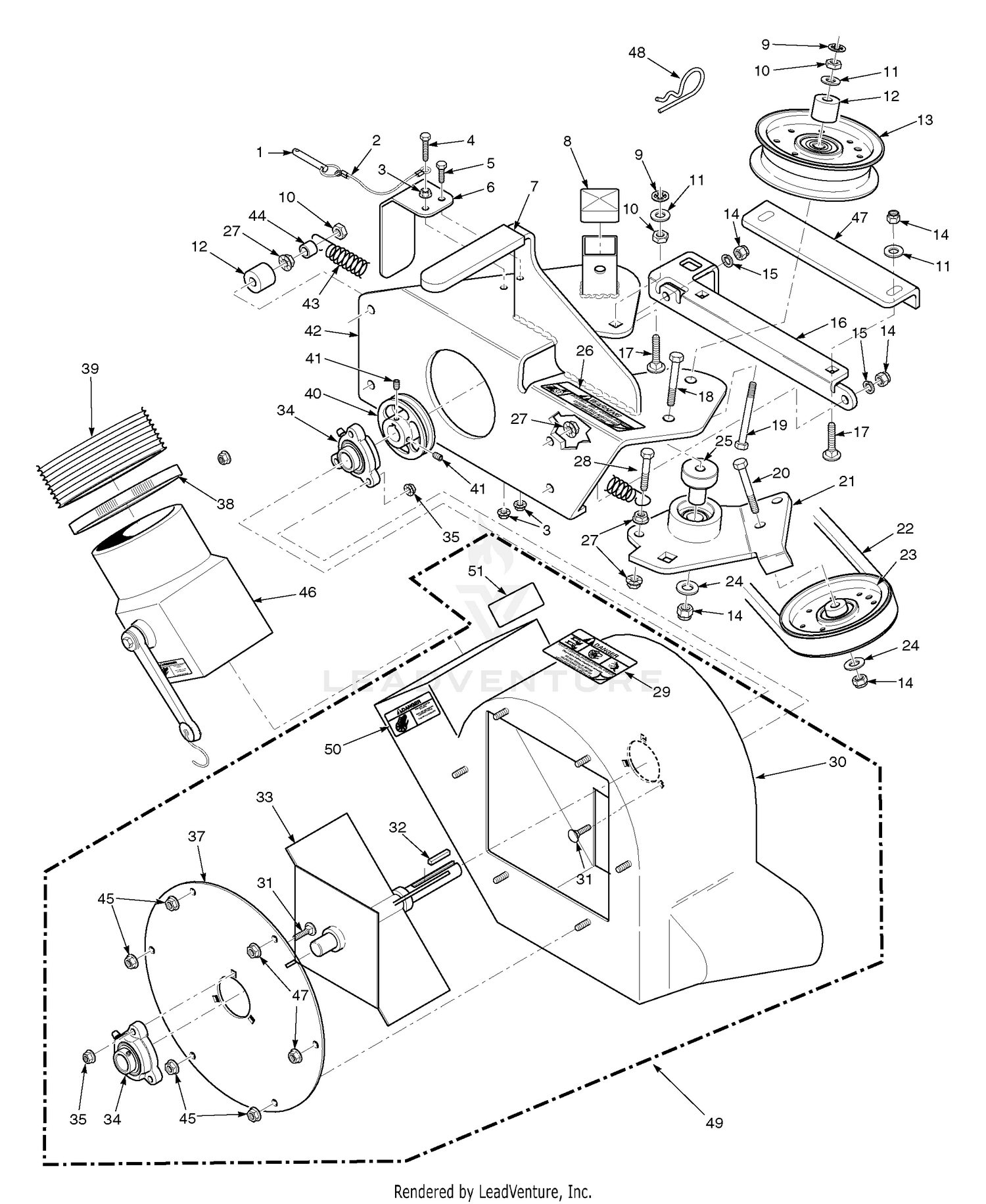

| Ref | Part Number | Description |
|---|
| 1 |
04067-07 |
Pin, Ring 2-1/4" Long Price: Call Us |
| 2 |
481547 |
Lanyard, Deck Height Pin Price: Call Us |
| 3 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 4 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 5 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 6 |
423298 |
Belt Cover, Rear Price: Call Us |
| 7 |
481428 |
Grip, Blower Lever Price: Call Us |
| 8 |
482300 |
Cap, Square Price: Call Us |
| 9 |
04024-02 |
Nut, Push On 3/8 Thread Price: Call Us |
| 10 |
04021-05 |
Lock Nut, 3/8-16 Price: Call Us |
| 11 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 12 |
43277 |
Spacer Price: Call Us |
| 13 |
483209 |
Pulley, Idler 4" Dia. - 61" & 72" This part replaces 482299. Price: Call Us |
| 14 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 15 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 16 |
423933 |
Plate, Catch Mounting Price: Call Us |
| 17 |
04003-05 |
Bolt, Carr. 3/8-16 x 1-1/2" Price: Call Us |
| 18 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 19 |
04001-81 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 20 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 21 |
49862 |
Idler Arm Assembly Price: Call Us |
| 22 |
482278 |
Belt, GC-STC Price: Call Us |
| 23 |
483189 |
Pulley, 3-1/2" O.D., GC-STT 52" This part replaces 482079. Price: Call Us |
| 24 |
04043-04 |
Washer, 3/8 Hardened Price: Call Us |
| 25 |
43575 |
Pivot, Idler Price: Call Us |
| 26 |
483402 |
Decal This part replaces 481039. Price: Call Us |
| 27 |
04019-04 |
Nut, Serr. Flange 3/8-16 Price: Call Us |
| 28 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8 Price: Call Us |
| 29 |
483392 |
Decal This part replaces 481377. Price: Call Us |
| 30 |
461681 |
Blower Housing Assembly Price: Call Us |
| 31 |
04003-12 |
Bolt, Carr. 5/16-18 x 3/4" Gr. 5 Price: Call Us |
| 32 |
04063-06 |
Key, 1/4 x 1/4 x 1-1/2" Price: Call Us |
| 33 |
451683 |
Fan Weldment Price: Call Us |
| 34 |
483034 |
Bearing Assembly Price: Call Us |
| 35 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 36 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 37 |
421319 |
Cover, Blower Housing Price: Call Us |
| 38 |
48136-02 |
Clamp, 8-5/8" Max Dia. Price: Call Us |
| 39 |
48135-09 |
Hose, 8.00" Dia. x 53" Long Price: Call Us |
| 40 |
482298 |
Pulley, 4-3/4" O.D. - 1" Bore Price: Call Us |
| 41 |
04012-04 |
Set Screw, 5/16-18 x 3/8" Price: Call Us |
| 42 |
451655 |
Frame, Blower Mount Price: Call Us |
| 43 |
481522 |
Spring, Main Drive Price: Call Us |
| 44 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 45 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 46 |
461723 |
Adapter w/Strap Price: Call Us |
| 47 |
424094 |
Plate, Blower Catch Price: Call Us |
| 48 |
04062-05 |
Hair Pin Cotter, .243 x 4" Price: Call Us |
| 49 |
461680 |
Blower Housing Assembly, GC-STT Price: Call Us |
| 50 |
482080 |
Decal, Rotating Blower Price: Call Us |
