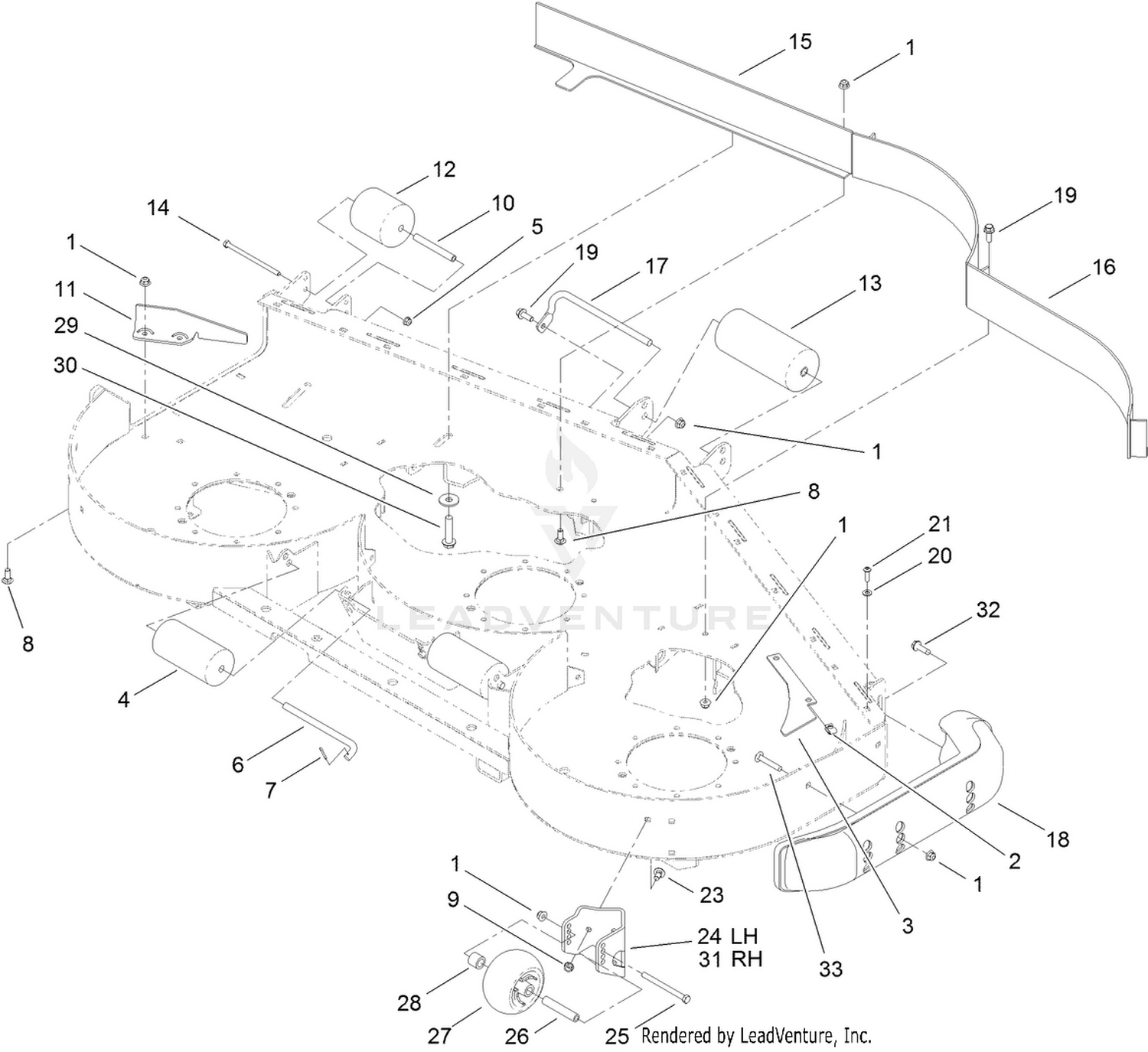

Roller and Baffle Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 2 | 112-3306 | NUT Price: $0.82 |
| 3 | 115-1396 | PLATE-TURBO Price: $29.53 |
| 4 | 36-1740 | ROLLER-DECK Price: $37.03 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 40-0340 | SHAFT-ROLLER, REAR Price: $29.99 |
| 7 | 3272-11 | PIN-COTTER Price: $0.99 |
| 8 | 3231-2 | BOLT-CARR Price: $0.81 |
| 9 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 10 | 105-4549 | SPACER-ROLLER Price: $10.26 |
| 11 | 130-8744-0P | BAFFLE-DISCHARGE This part replaces 130-8744-01. Price: $19.82 |
| 12 | 93-4803 | ROLLER-DECK Price: $41.58 |
| 13 | 68-6710 | ROLLER Price: $59.98 |
| 14 | 322-49 | BOLT-HH Price: $2.57 |
| 15 | 127-4858-01 | BAFFLE ASM Price: $86.26 |
| 16 | 105-7730-01 | BAFFLE Price: $148.99 |
| 17 | 68-6840 | SHAFT-ROLLER Price: $64.07 |
| 18 | 112-1479 | SKID-BUMPER, DECK Price: $95.09 |
| 19 | 3234-42 | SCREW-HHF Price: $1.10 |
| 20 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 21 | 3274-104 | SCREW-HSBH Price: $0.54 |
| 23 | 3231-1 | SCREW-CARR Price: $0.99 |
| 24 | 106-7354-01 | MOUNT-WHEEL, LH Price: $102.99 |
| 25 | 323-23 | SCREW-HH Price: $2.07 |
| 26 | 98-7912 | TUBE-SPANNER Price: $12.23 |
| 27 | 1-603299 | ROLLER-SCALP, ANTI Price: $21.99 |
| 28 | 98-7913 | TUBE-SPACER Price: $6.81 |
| 29 | 105-7697 | WASHER-PLASTIC Price: $2.29 |
| 30 | 3234-46 | SCREW-HHF Price: $2.08 |
| 31 | 106-7355-01 | MOUNT-WHEEL, RH Price: $102.99 |
| 32 | 9136144 | SCREW-HWHTF Price: $6.29 |
