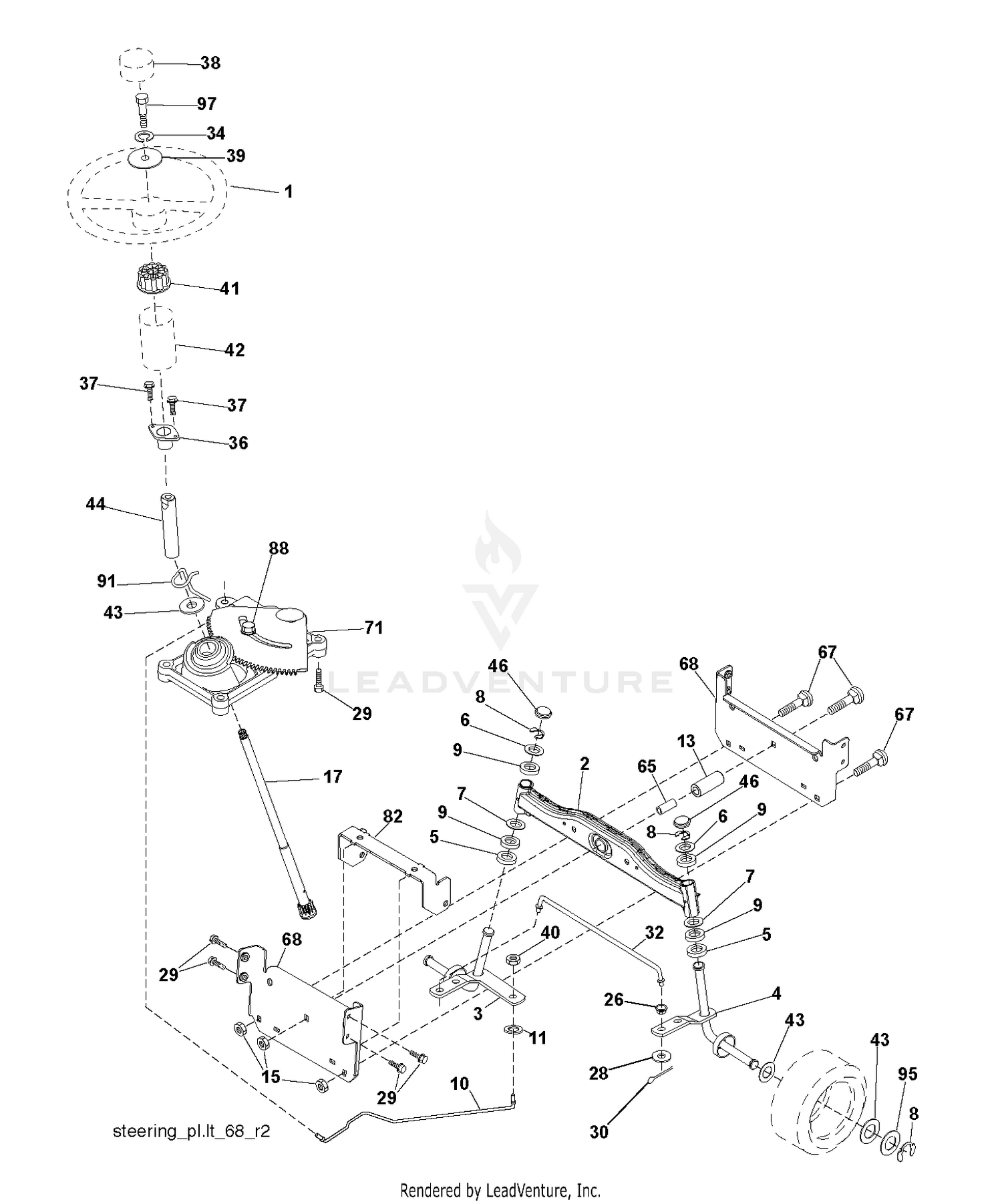

| Ref | Part Number | Description |
|---|
| 1 |
532186780 |
Price: $27.99 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $33.99 |
| 3 |
532169840 |
SPINDLE.ASM.LH.15"TIRES Price: $17.99 |
| 4 |
532169839 |
SPINDLE.ASM.RH.15"TIRES Price: $17.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
532121748 |
WASHER Price: $1.99 |
| 7 |
819272016 |
WASHER Price: $2.99 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 010 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $40.99 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $6.99 |
| 15 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $31.99 |
| 020 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 26 |
532126847 |
BUSHING.DRAGLINK Price: $2.49 |
| 28 |
819131414 |
Washer Flat 13/32 x 7/8 x 14 Ga. This part replaces 819131416. Price: $3.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 030 |
105-3747 |
PLUG Price: $3.62 |
| 30 |
876020412 |
COTTER PIN Price: $3.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM Price: $12.99 |
| 34 |
810040500 |
LOCKWASHER Price: $2.99 |
| 36 |
532155106 |
KIT, BUSHING This part replaces 532155099. Price: $5.99 |
| 37 |
532152927 |
SCREW Price: $3.99 |
| 38 |
532192916 |
Price: $3.99 |
| 39 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 040 |
99-3583 |
GASKET Price: $1.92 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 41 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 42 |
532169633 |
BOOT.STEERING.SHAFT.BLACK Price: $5.99 |
| 43 |
532121749 |
WASHER Price: $1.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 46 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 050 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 060 |
98-7692 |
BOLT Price: $0.92 |
| 65 |
532414736 |
SPACER.BRACE.AXLE Price: $2.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 68 |
532169827 |
BRACE.AXLE.15"TIRES Price: $14.99 |
| 070 |
98-9356 |
BOLT Price: $2.06 |
| 71 |
532175146 |
STEERING ASM Price: $61.99 |
| 080 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 82 |
532199978 |
BRACKET.SUSP.CHASSIS.FRONT.15 Price: $11.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $3.99 |
| 090 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 91 |
532175553 |
CLIP.STEERING Price: $8.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 100 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 110 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 120 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 130 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
