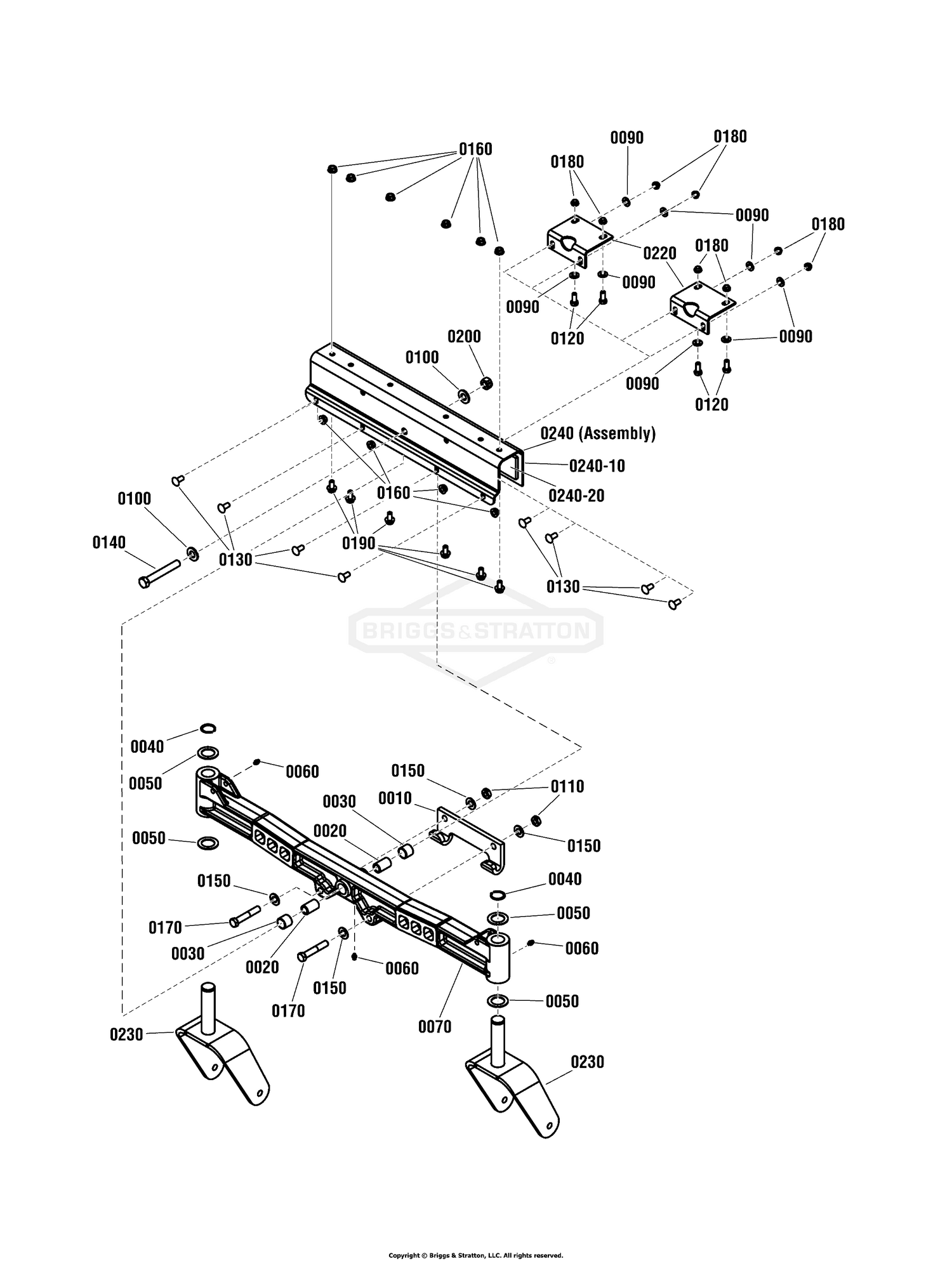

| Ref | Part Number | Description |
|---|
| 0010 |
1721918ASM |
HOOK, “J” Mower Hitch Price: $29.48 |
| 0020 |
7011309SM |
SPACER, Axle Pivot Price: $6.49 |
| 0030 |
7012706SM |
BEARING, Sleeve .875 OD Price: $9.31 |
| 0040 |
703993 |
RETAINER, EXT RING, 1 Price: $2.87 |
| 0050 |
7013855SM |
WASHER, Thrust, 1” ID, 1.5” OD, .06 Thk Price: $6.30 |
| 0060 |
7013864SM |
LUBE FITTING, Straight (3/16”press-fit) Price: $3.17 |
| 0070 |
7078124DYP |
FRONT AXLE, Cast, Red Price: $259.99 |
| 0090 |
703350 |
WASHER Price: $3.72 |
| 0100 |
704123 |
WASHER,.531X1.06X.094 Price: $3.72 |
| 0110 |
703348 |
NUT,7/16-20 Price: $4.59 |
| 0120 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 704287. Price: $3.19 |
| 0130 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0140 |
5025017X28SM |
BOLT, 1/2-13 X 3-1/2" This part replaces 7091558SM. Price: $5.00 |
| 0150 |
703183 |
WASHER, 7/16 ID X.065 Price: $3.29 |
| 0160 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0170 |
7091703SM |
SCREW, 7/16-20 x 2-1/2”, Hex Head Cap Screw, GR 5, YZ Price: $6.84 |
| 0180 |
7091706SM |
NUT, 5/16-18 Hex Top Lock, GR B Price: $3.29 |
| 0190 |
703823 |
BOLT, 5/16-18X0.625 Price: $3.39 |
| 0200 |
703894 |
NUT, CNTR LCK, 1/2-13 Price: $3.06 |
| 0220 |
7300004BMYP |
BRACKET, AXLE SUPPORT Price: $18.61 |
| 0230 |
7400191DYP |
WELDMENT, Caster Yoke & Spindle Price: $94.15 |
| 0240 |
7502054D |
ASSEMBLY, Axle Bracket (incl. next two items) Price: Call Us |
