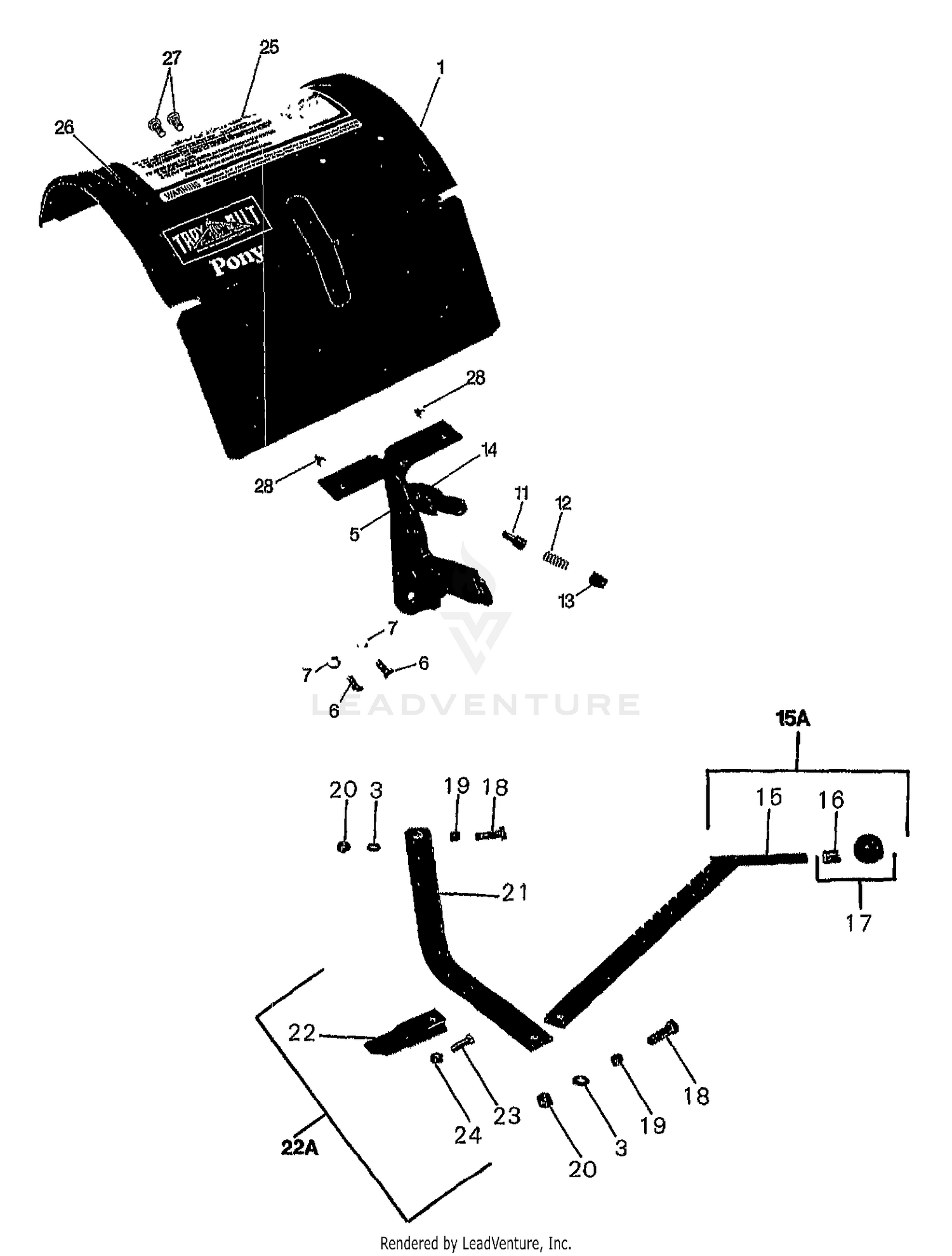

| Ref | Part Number | Description |
|---|
| 1 |
20732 |
HOOD W/DECALS (INCL. DECALS #20733 & #20401) Price: Call Us |
| 3 |
9913 |
WASHER-LK .375 Price: $1.89 |
| 5 |
2255 |
KIT-REAR HOOD BRKT (INCL. ROLL PIN #9308) Price: Call Us |
| 6 |
9703 |
SCR-HHC 5/16-18X.75 GR 5 (BRACKET TO BEARING CAP) Price: Call Us |
| 7 |
9912 |
WASHER-LK .312 Price: $19.56 |
| 11 |
GW-1119 |
PLUNGER Not Available This part replaces 1119. Price: |
| 12 |
GW-1120 |
SPRING .406 x 1.25 Not Available This part replaces 1120. Price: |
| 13 |
1105620 |
PLUG-SQ HEAD 1/4-18 NPT This part replaces 9726. Price: $3.66 |
| 14 |
715-0108 |
Pin, Sprg, 1/4 Dia x 1.00 This part replaces 9308. Price: $4.38 |
| 15 |
N/A |
BAR - NOT AVAIL. SEPARATELY (SEE INDEX 15A) |
| 15A |
1900864 |
Depth Regulator This part replaces 1117A. Price: $75.79 |
| 16 |
GW-9120 |
RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94 |
| 17 |
GW-9119 |
KNOB -handlebar height adjustment This part replaces 9119. Price: $10.22 |
| 18 |
9712 |
SCR-HH 3/8-16X1.25 Price: Call Us |
| 19 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53 |
| 20 |
9802 |
NUT-HEX 3/8-16 Price: Call Us |
| 21 |
2121 |
BAR-DRAG RED Price: Call Us |
| 22 |
N/A |
SOD POINT - NOT AVAIL. SEP. (SEE INDEX 22A) |
| 23 |
9701 |
SCR-HH 1/4-20X.75 G5 Price: Call Us |
| 24 |
9811 |
NUT-LK 1/4-20 Price: Call Us |
| 25 |
20733 |
DECAL-OPER INST Price: Call Us |
| 26 |
20401 |
DECAL-HOOD LOGO PONY OPC (MODEL NAME DECAL) Price: Call Us |
| 27 |
710-0607 |
SCREW 5/16-18 x .500 This part replaces 9553. Price: $6.06 |
