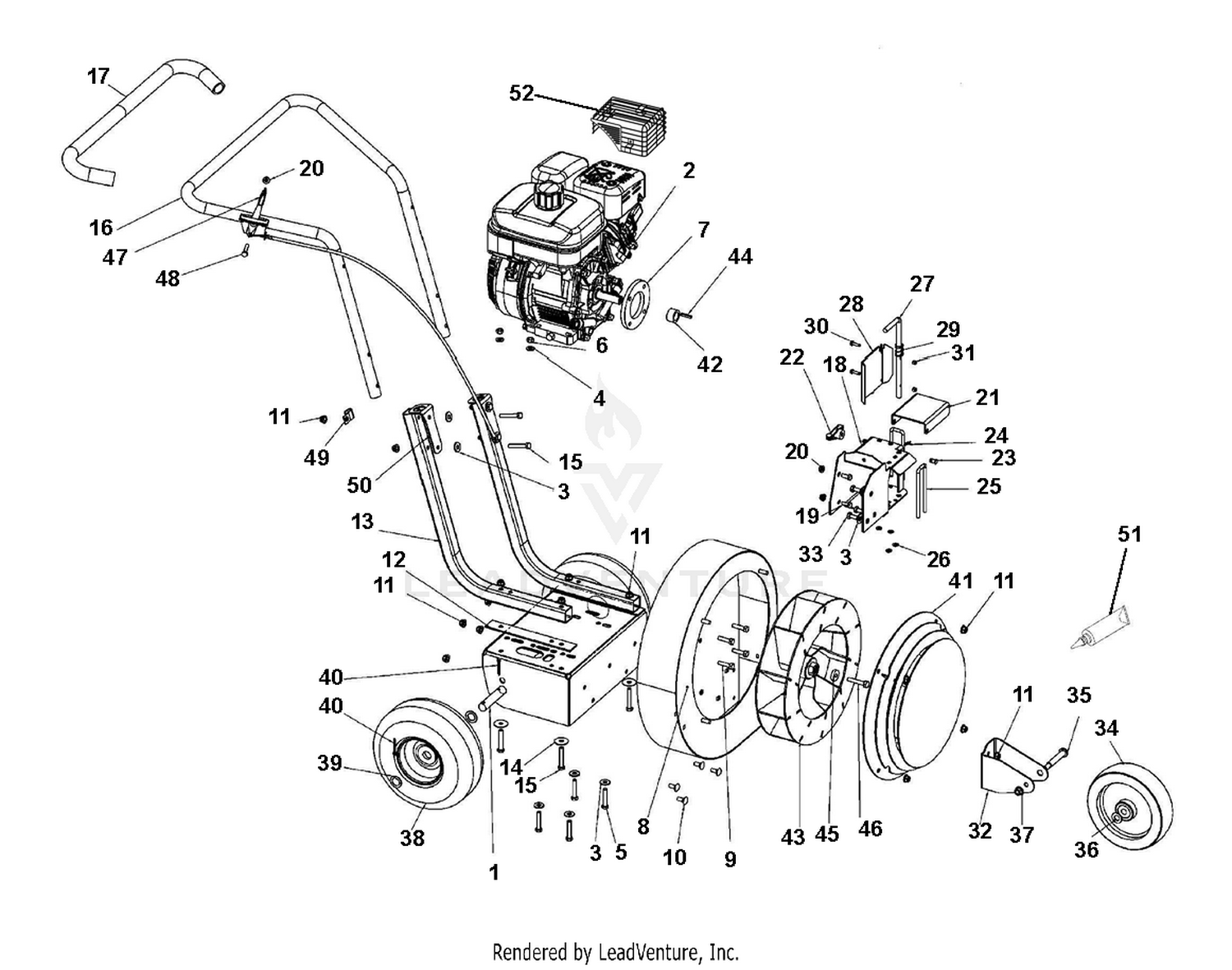

| Ref | Part Number | Description |
|---|
| 1 |
04290053 |
WMT-BLOWER FRAME, SM Price: $121.45 |
| 3 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 4 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 5 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 6 |
06500938 |
NUT, HEX .312-18 ZCC This part replaces 06529200. Price: $0.95 |
| 7 |
04291451 |
SPACER-ENGINE Price: $11.45 |
| 8 |
04290153 |
WMT-BLOWER HOUSING SM Price: $212.45 |
| 10 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 11 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 12 |
04290500 |
SPACER-RUBBER Price: $5.45 |
| 13 |
04349151 |
TUBE-HANDLEBAR, LOWER SQ Price: $22.95 |
| 14 |
06401105 |
WSHR, FLT .347X1.254X.048 ZCC This part replaces 06446900. Price: $2.45 |
| 15 |
05901805 |
BLT- HEX .31-18X2.00 G5 ZCC This part replaces 05957200. Price: $1.45 |
| 16 |
04290651 |
TUBE-HANDLEBAR, UPPER Price: $145.95 |
| 17 |
04290700 |
GRIP-HANDLEBAR, UPPER Price: $32.95 |
| 18 |
04290353 |
WMT-OUTLET CHUTE Price: $254.95 |
| 19 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 20 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 21 |
04290953 |
BRKT-OUTLET DOOR Price: $11.45 |
| 22 |
07500105 |
KNOB,WING .31-18 UNC NYL/TALC Price: $3.45 |
| 23 |
06819100 |
PIN-CLEV .313X.500 YWZC Price: $3.45 |
| 24 |
06700223 |
PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45 |
| 25 |
04291000 |
WIREFORM-GUARD, SAFETY Price: $10.95 |
| 26 |
07027600 |
NUT-PUSH .25X.50 O.D. Price: $1.95 |
| 27 |
04291100 |
WIREFORM-LEVER, DIRECTION Price: $23.45 |
| 28 |
04291253 |
BRKT-FLAP, DIRECTION Price: $14.25 |
| 29 |
08300526 |
SPRING-COMP 1.0LX.72 OD .05DIA Price: $8.45 |
| 30 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 31 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 32 |
04290853 |
BRKT-WHEEL, FRONT Price: $22.45 |
| 33 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 34 |
07100911 |
WHEEL 8X2 W/.5 BORE BLK Price: $36.45 |
| 35 |
07056800 |
BLT-SHLDR .38-16X2.50 HWH G5 Price: $6.45 |
| 36 |
06443300 |
WSHR-FL-NYL .518X1.000X.080 Price: $0.45 |
| 37 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 38 |
07100910 |
WHEEL-10X3.75 PNEU. GREY Price: $71.45 |
| 39 |
06401119 |
WSHR, FLT .754X1.125X.062 ZCC This part replaces 06441400. Price: $0.95 |
| 41 |
04290451 |
WMT-INLET GUARD SM Price: $207.45 |
| 42 |
05501037 |
BUSHING, SLEEVE .76X1.13X.650 Price: $12.45 |
| 43 |
04296100 |
WMT-FAN, BLOWER SM Price: $174.95 |
| 44 |
06601300 |
KEY-SQ .188X1.0X.188 SAE 8630 Price: $1.45 |
| 45 |
06400836 |
WSHR-FL-STL .350X1.00X.250 YWZ Price: $2.95 |
| 46 |
05900128 |
BLT-HEX .31-24X2.00 G8 YZ EP80 Price: $4.95 |
| 47 |
04300300 |
THROTTLE CONTROL Price: $54.45 |
| 48 |
05901740 |
BLT- HEX .25-20X2.00 G5 ZCC This part replaces 05967100. Price: $2.45 |
| 49 |
06909400 |
J-CLAMP Price: $3.45 |
| 50 |
04349251 |
BRKT-HANDLEBAR MOUNT Price: $14.95 |
| 51 |
00999901 |
ADHESIVE-LOCTITE 609 .5ML Price: $7.45 |
