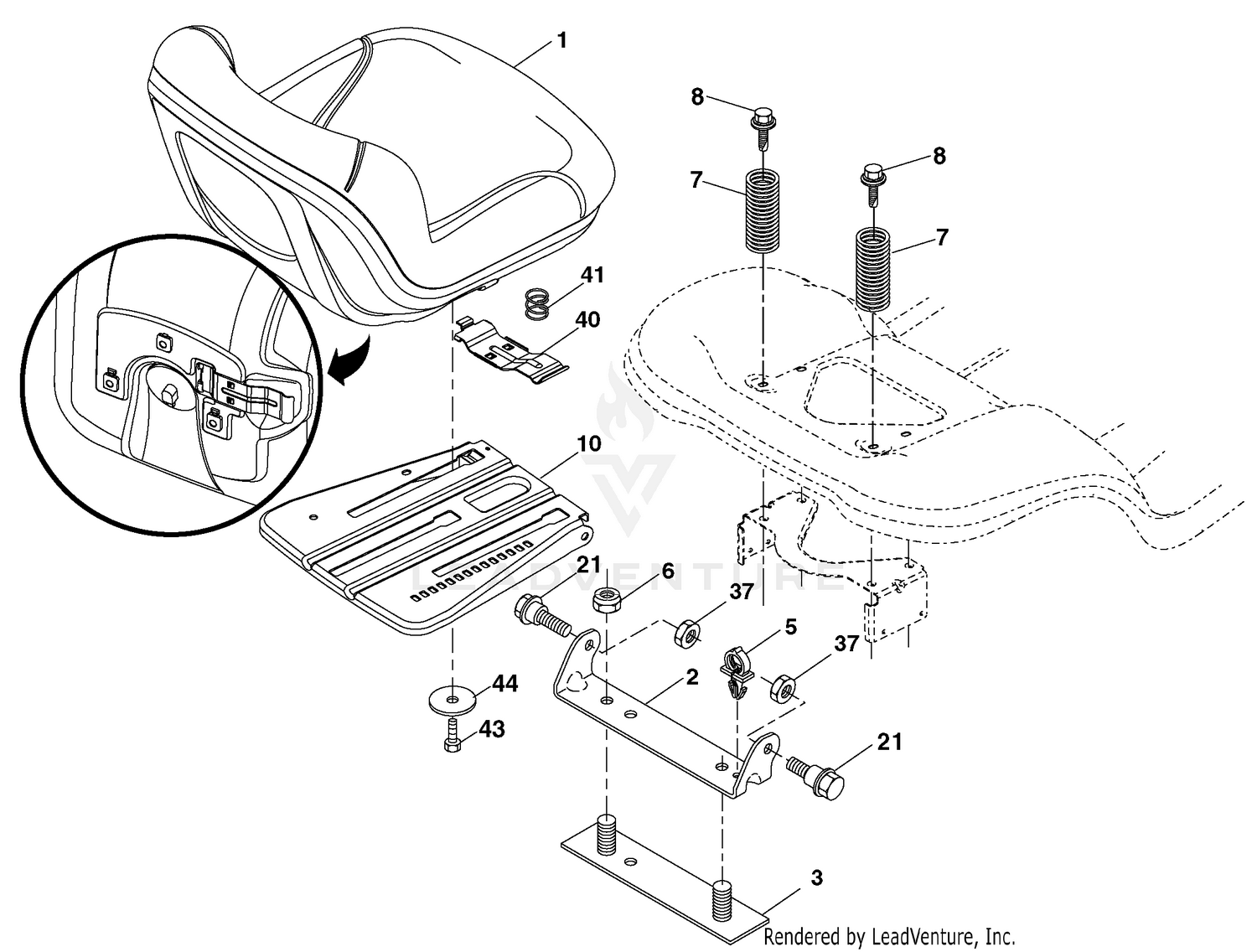

| Ref | Part Number | Description |
|---|
| 1 |
197530 |
Seat Price: Call Us |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 5 |
145006 |
Clip, Push In, Hinged Price: Call Us |
| 6 |
73800600 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 010 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 020 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 030 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 37 |
73800500 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 040 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 40 |
197661 |
Handle Slide Seat Price: Call Us |
| 41 |
198200 |
Spring Latch Seat Price: Call Us |
| 43 |
74760612 |
Bolt Fin Hex 3/8-16 unc x 3/4 Price: Call Us |
| 050 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 060 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 070 |
98-9352 |
BOLT Price: $0.80 |
| 080 |
98-7568 |
BOLT Price: $0.84 |
| 090 |
115-4106 |
MAIN BEARING CASE ASM This part replaces 98-9606. Price: $189.84 |
| 100 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
