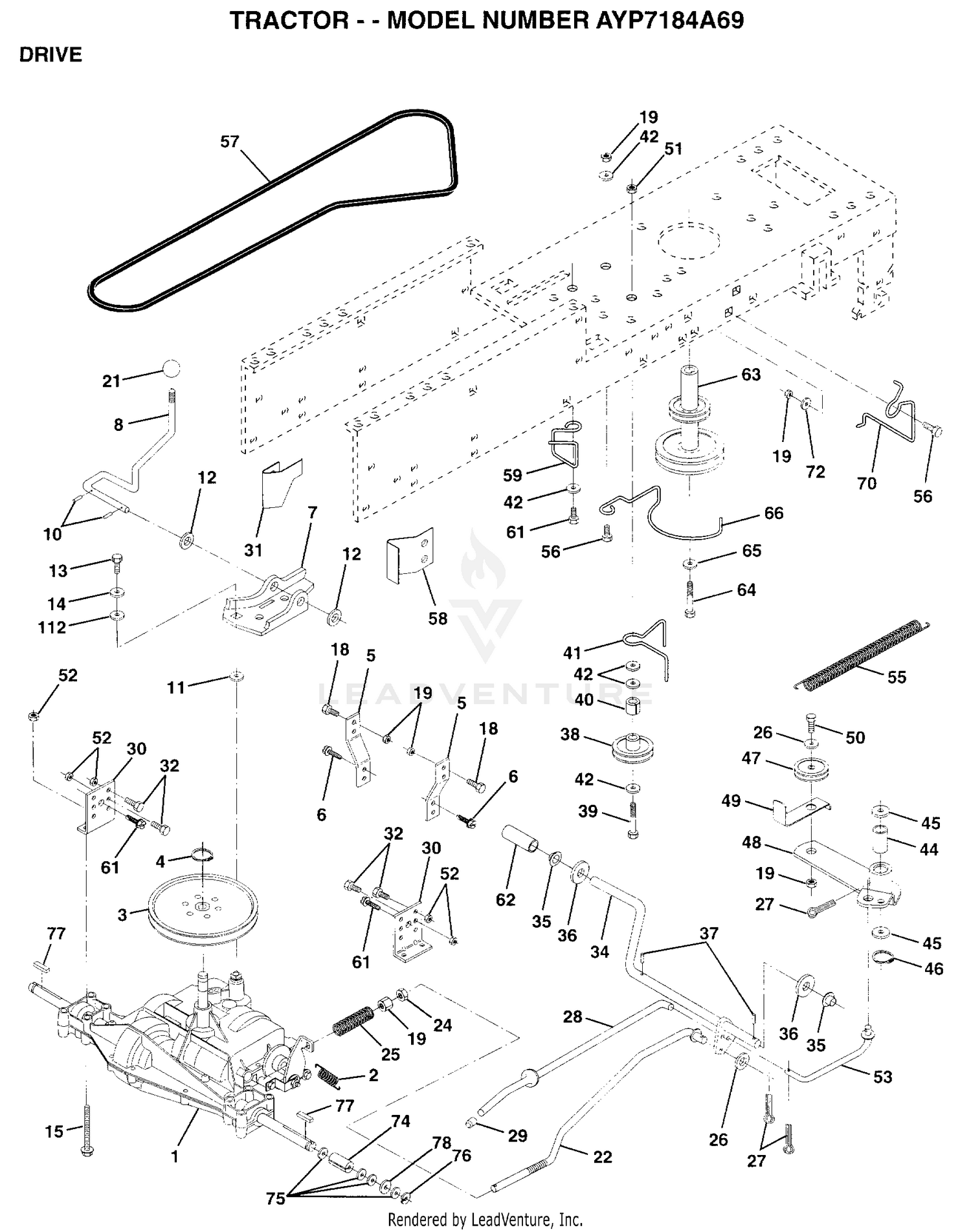

| Ref | Part Number | Description |
|---|
| 1 |
145607 |
SUB= 161451 Price: Call Us |
| 1 |
3217-7 |
NUT-HEX Price: $0.28 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 3 |
92-9701 |
SHAFT-CRUISE Price: $101.17 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 5 |
100-8016 |
FIELD CORE COIL ASM Price: $165.29 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 6 |
17490512 |
SCREW Price: Call Us |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 7 |
130802 |
SUB= 162240 Price: Call Us |
| 8 |
131679 |
SHIFT ROD Price: Call Us |
| 9 |
99-5348 |
PLATE-CLUTCH Price: $61.10 |
| 10 |
43-6320 |
COLLAR Price: $24.71 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 12 |
19151216 |
WASHER Price: Call Us |
| 12 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 15 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
74-2700-03 |
CONTROL ROD ASM Price: $132.44 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
21-0141 |
RH BALL JOINT ASM This part replaces 21-0141-03. Price: $109.12 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
3220-3 |
NUT-HJ Price: $0.28 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 23 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 24 |
73350600 |
NUT Price: Call Us |
| 24 |
99-5347-03 |
TRACTION PEDAL ASM This part replaces 99-5347-01. Price: $219.38 |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 27 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 29 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
149001 |
SHAFT.PEDAL.FOOT Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
109070X |
BELT KEEPER LT Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
129921 |
KEEPER.BELT.ENG.L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
109502X |
SPACER LT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
