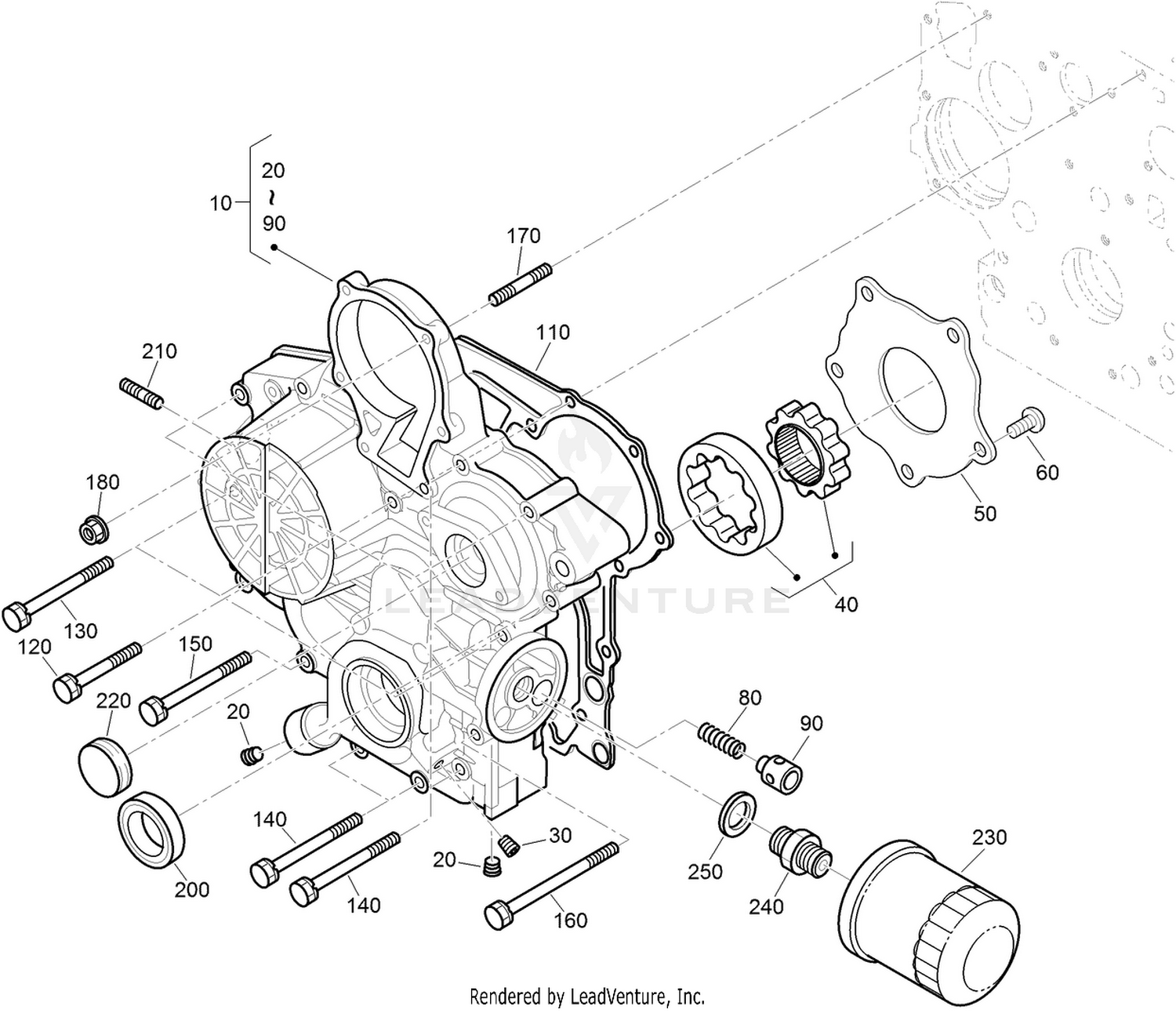

Gear Case and Oil Filter Cartridge Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 131-3833 | GEAR CASE ASM Price: Call Us |
| 20 | 127-0425 | PLUG Price: $4.34 |
| 30 | 98-7487 | PLUG Price: $3.18 |
| 40 | 130-1508 | ROTOR ASM Price: $266.77 |
| 50 | 130-1509 | COVER-PUMP, OIL Price: $7.88 |
| 60 | 130-1164 | SCREW-BINDING Price: $0.32 |
| 80 | 130-1511 | SPRING Price: $3.05 |
| 90 | 130-1510 | VALVE-RELIEF Price: $26.61 |
| 110 | 98-9633 | GASKET-CASE, GEAR Price: $30.19 |
| 120 | 100-1765 | BOLT Price: $1.59 |
| 130 | 125-9063 | BOLT-SEMS Price: $1.31 |
| 140 | 98-9356 | BOLT Price: $2.06 |
| 150 | 107-9074 | BOLT Price: $1.43 |
| 160 | 99-3510 | BOLT Price: $0.80 |
| 170 | 105-3709 | STUD Price: $1.13 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 200 | 119-8038 | SEAL-OIL Price: $40.16 |
| 210 | 105-3710 | STUD Price: $1.16 |
| 220 | 99-3515 | PLUG-GEARCASE Price: $9.00 |
| 230 | 108-3841 | FILTER-OIL This part replaces 127-0511. Price: $10.81 |
| 240 | 104-5159 | HOLDER ASM Price: $120.58 |
