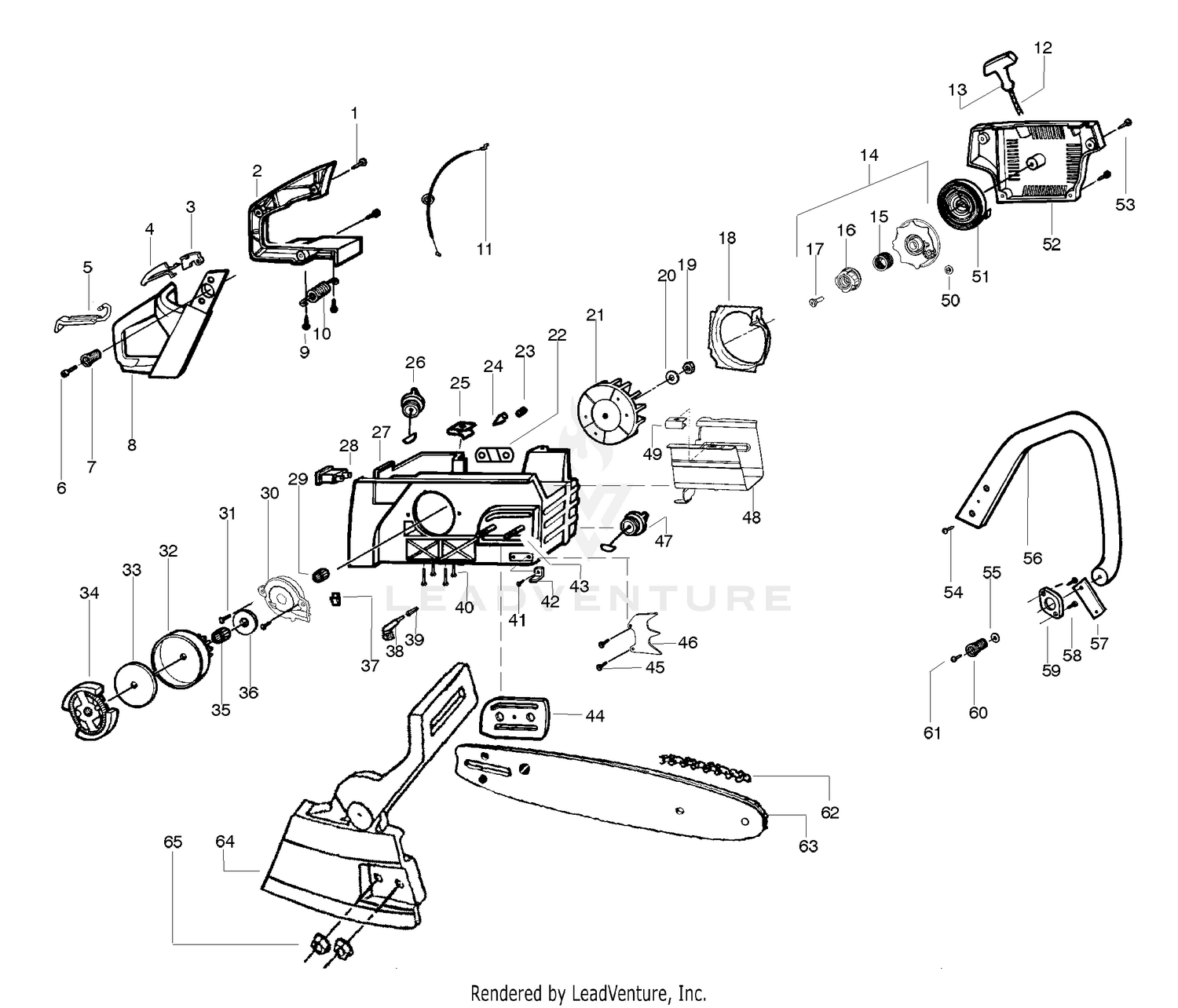

Handle, Chassis & Bar Assembly
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-8293-0P | TUBE-SHORT This part replaces 115-8293-03. Price: $224.35 |
| 1 | 530015957 | Screw Price: $1.99 |
| 2 | 114-5410 | SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 3 | 114-3717 | SEAL-OIL Price: $2.77 |
| 3 | 530036097 | Trigger-Throttle Price: $1.99 |
| 4 | 112-5290 | BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 | 530036098 | Lockout-Throttle Price: $1.99 |
| 5 | 112-7494 | SEAL Price: $6.37 |
| 5 | 530053443 | Lever-Choke Price: $1.99 |
| 6 | 114-5411 | NUT-LOCK, BEARING Price: $24.46 |
| 6 | 530015937 | Screw Price: $1.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 530038985 | Spring-Isolator Price: $1.99 |
| 9 | 530015906 | Screw Price: $1.99 |
| 10 | 530038986 | Spring-Isolator Price: $1.99 |
| 12 | 530069232 | Kit-Rope Price: $3.99 |
| 13 | 530056422 | Handle-Starter This part replaces 530049797. Price: $1.99 |
| 15 | 530021180 | Spring EPS Price: $1.99 |
| 16 | 530059677 | Hub-Starter EPS Price: $5.99 |
| 17 | 530021179 | Screw-Shoulder Price: $1.99 |
| 18 | 530047667 | Plate-Baffle Fan Price: $1.99 |
| 19 | 530016134 | Nut-Flywheel Price: $1.99 |
| 20 | 530015127 | Washer-Flywheel Price: $1.99 |
| 21 | 530059637 | Assy-Flywheel Price: $32.99 |
| 23 | 530029868 | Plug-Vent Price: $1.99 |
| 24 | 530026119 | Valve-Check Price: $1.99 |
| 25 | 530015922 | Nut-Speed Price: $1.99 |
| 26 | 530010845 | Assy-Fuel Cap Price: $5.99 |
| 28 | 530069572 | Kit-Switch Price: $4.99 |
| 29 | 530029833 | Worm-Oil Pump Price: $3.99 |
| 30 | 545036801 | PLUNGER & GEAR ASSY This part replaces 530014410. Price: $11.99 |
| 31 | 530015896 | Screw Price: $1.99 |
| 33 | 530015611 | Washer-Clutch Price: $1.99 |
| 34 | 530014949 | Assy-Clutch Price: $7.99 |
| 35 | 530032119 | Bearing-Clutch Price: $4.99 |
| 36 | 530015907 | Washer-Thrust Price: $1.99 |
| 37 | 545037101 | OIL HOSE This part replaces 530019174. Price: $6.99 |
| 38 | 545047801 | Pickup-Oil Price: $2.99 |
| 39 | 530056533 | Filter-Oil Price: $2.99 |
| 40 | 530016037 | Screw Price: $1.99 |
| 41 | 530015814 | Screw Price: $1.99 |
| 42 | 530029850 | Chain Catcher Price: $1.99 |
| 43 | 530015877 | Bar Bolt Price: $2.99 |
| 44 | 530047855 | Bar Plate Price: $3.99 |
| 45 | 530016439 | Screw Price: $1.99 |
| 47 | 530057236 | Assy-Oil Cap Price: $5.99 |
| 48 | 530055406 | Shield-Heat Price: $2.99 |
| 49 | 530055322 | Clip-"U" Price: $1.99 |
| 50 | 114-5430 | ROLLER REBUILD KIT Price: $99.53 |
| 50 | 530016392 | Screw Price: $1.99 |
| 51 | 545008013 | Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 52 | 545008803 | Housing-Fan Price: $8.99 |
| 53 | 530015892 | Screw Price: $1.99 |
| 54 | 530015814 | Screw Price: $1.99 |
| 55 | 530015123 | Washer This part replaces 530015158. Price: $1.99 |
| 56 | 530053955 | ASSY HANDLE BAR This part replaces 530038327. Price: $11.99 |
| 57 | 530036113 | Front Strap-AV Price: $2.99 |
| 58 | 530015775 | Screw-Plate Price: $1.99 |
| 59 | 530036101 | Plate-Isolator Price: $1.99 |
| 60 | 530038985 | Spring-Isolator Price: $1.99 |
| 61 | 530015984 | Screw Price: $1.99 |
| 62 | 952051310 | Chain"- 20" Price: $24.99 |
| 63 | 952044815 | Bar -20" Quick Adjust Price: $37.99 |
| 64 | 530054819 | Assy-ChainBrake This part replaces 530054804. Price: $27.99 |
