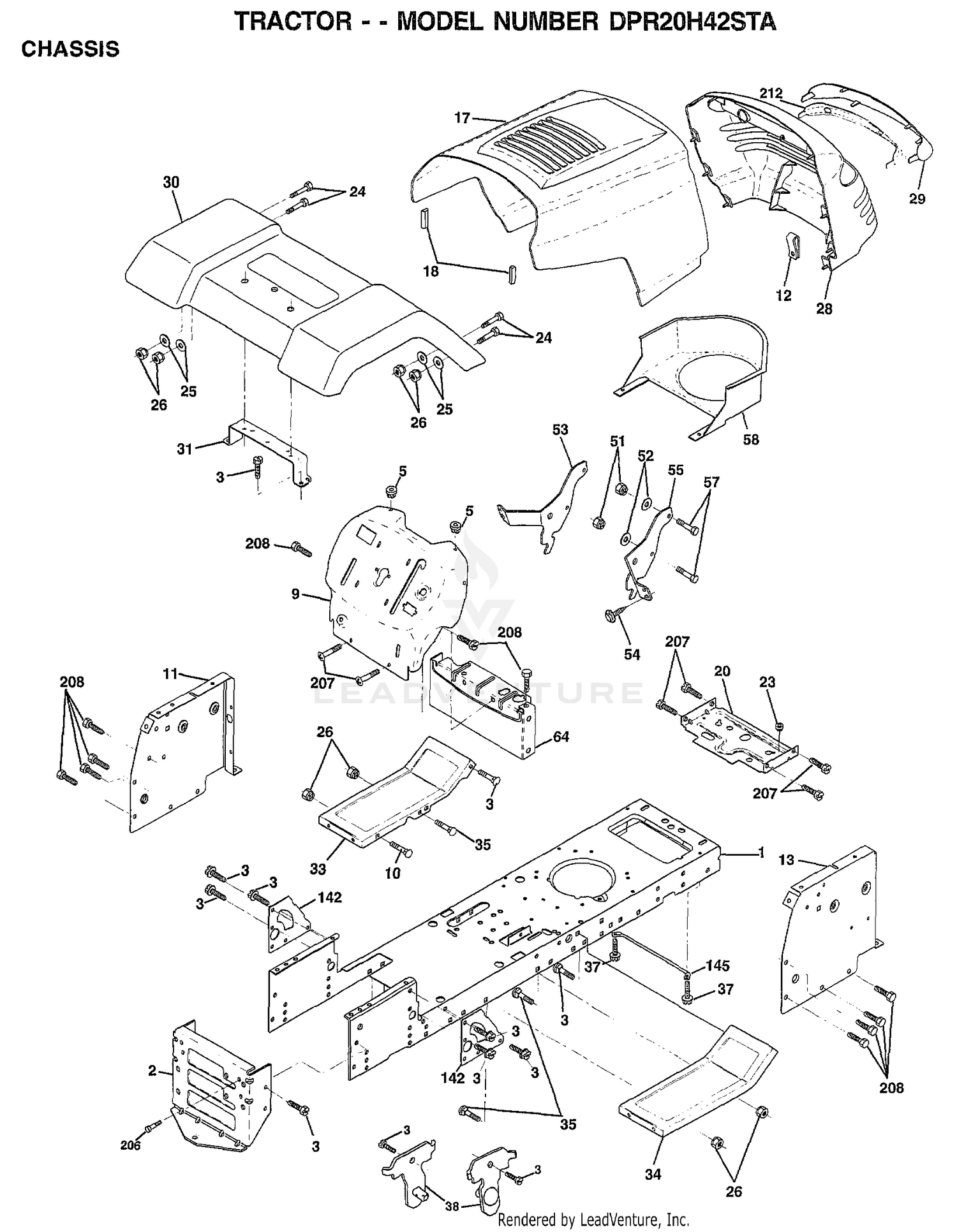

| Ref | Part Number | Description |
|---|
| 1 |
169830 |
CHASSIS Price: Call Us |
| 2 |
169061 |
DRAWBAR Price: Call Us |
| 3 |
17060612 |
SCREW Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 9 |
168337X012 |
DASH Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
172108 |
PANEL DASH Price: Call Us |
| 15 |
99-9247 |
PLUG-DRAIN, OIL Price: $25.99 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
170474 |
GRILLE Price: Call Us |
| 29 |
170472X599 |
LENS Price: Call Us |
| 30 |
169468X428 |
FENDER FOOTREST Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
145244X428 |
FOOTREST PNT LH Price: Call Us |
| 34 |
145243X428 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
169834 |
BRKT ASM PIVOT MOWER REAR Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
140547 |
DUCT.AIR.B&S.18HP Price: Call Us |
| 64 |
154798 |
DASH-LOWER Price: Call Us |
| 142 |
165867 |
PLATE.REINFORCEMENT Price: Call Us |
| 206 |
170165 |
BOLT SHOULDER Price: Call Us |
| 207 |
17670508 |
SCREW Price: Call Us |
| 208 |
17670608 |
SCREW Price: Call Us |
| 239 |
99-9115 |
SWITCH-PRESSURE, OIL Price: $51.98 |
| 276 |
99-9249 |
WASHER-SEAL Price: $10.99 |
| 479 |
99-9111 |
SCREW-HEX Price: $12.63 |
| 523 |
99-9259 |
DIPSTICK Price: $118.23 |
| 525 |
99-9260 |
TUBE-DIPSTICK Price: $132.50 |
| 818 |
99-9007 |
STUD-METRIC Price: $5.64 |
| 848 |
99-9113 |
NUT-HEX, METRIC Price: $8.43 |
| 941 |
99-9112 |
STUD-METRIC Price: $13.82 |
| 952 |
99-9114 |
NUT-HEX, METRIC Price: $12.05 |
| 1017 |
99-9116 |
SCREEN-PUMP, OIL Price: $88.59 |
| 1041 |
99-9120 |
GASKET-STRAINER, OIL Price: $6.91 |
| 1078 |
99-9121 |
GASKET-PAN, OIL Price: $62.92 |
| 1081 |
99-9265 |
SEAL-O-RING Price: $6.33 |
| 1084D |
99-9124 |
CONNECTOR Price: $9.21 |
